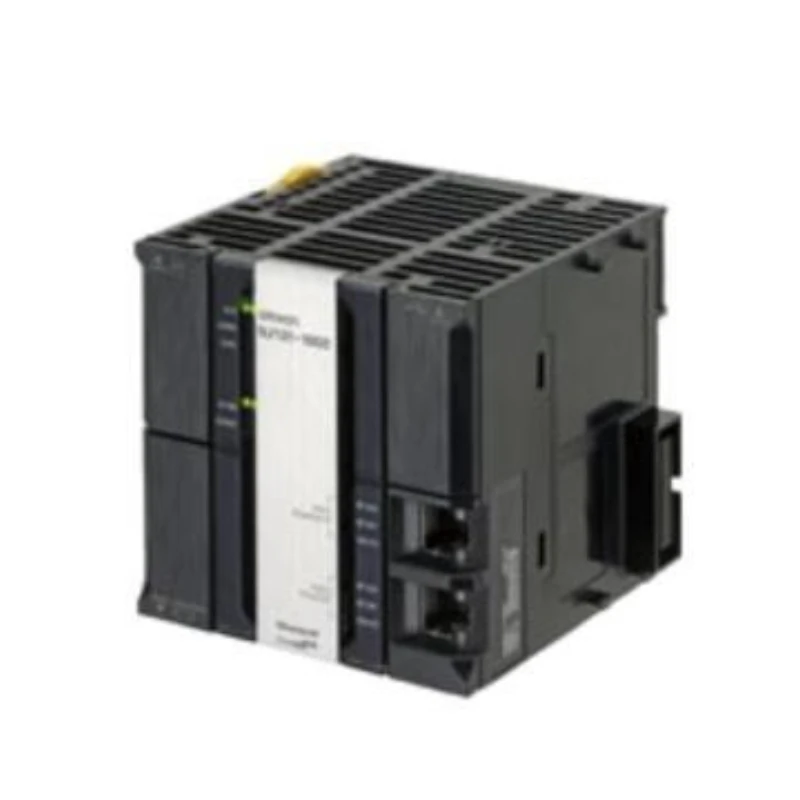

OMRON Motion Controller, NJ501-1300
LEHIY item code: LH-OMRON-0753
Power Supply Units for CPU and Expansion Devices: Model
Category: Controller
Transmission distance between hub and node: Maximum 5m
Quick buying check
This page helps you check OMRON Motion Controller, NJ501-1300 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Technical Specifications
| Project | NJ501- | ||||
|---|---|---|---|---|---|
| 1500 | 1400 | 1300 | |||
| Processing Time | Instruction Execution Time | LD Instruction | |||
| Arithmetic operation instructions (for double-precision real data) | 24ns or longer | ||||
| Programming | Program size * 1 | Size | 20 MB | ||
| Quantity | POU definition | ||||
| POU instance | 6000 with Sysmac Studio Ver. 1.05 and earlier 9000 with Sysmac Studio Ver. 1.06 and later | ||||
| Variable capacity | NonePreserve attribute *2 | Size | 4MB | ||
| Quantity | 90000 | ||||
| Keep Attributes *3 | Size | 2MB | |||
| Quantity | 10000 | ||||
| Data Type | Quantity | 2000 | |||
| Memory of CJ Series Units (Variable can be specified via AT specification) | CIO Area | 6,144 characters (CIO0～CIO6143) | |||
| Working Area | 512 characters (W0～W511) | ||||
| Maintenance Area | 1,536 characters (H0～H1535) | ||||
| DM Area | DM Area 32,768 words (D0～D32767) | ||||
| EM area | 32,768 words × 25 storage units (E0_00000～E18_32767) | ||||
| Unit configuration | Number of expansion units that can be installed | Number of units that can be installed per CPU device or expansion device | 10 units | ||
| Entire Controller | 40 Units | ||||
| Maximum Number of Expansion Devices | Maximum 3 | ||||
| Number of I/O Points | Maximum Number of I/O Points for CJ-Series Units | Maximum 2,560 Points | |||
| Power Supply Units for CPU and Expansion Devices | Model | NJ-P[]3001 | |||
| Power OFF Detection Time | AC Power Supply | 30～45 ms | |||
| DC Power Supply | 22～25 ms | ||||
| Motion Control | Number of Controlled Axes | Maximum Number of Controlled Axes | *464 axes | 32 axes | 16 axes |
| Maximum number of real axes used *5 | 64 axes | 32 axes | 16 axes | ||
| Maximum number of axes controlled by a single axis | 64 axes controlled by a single axis | 32 axes controlled by a single axis | 16 axes controlled by a single axis | ||
| Maximum number of axes controlled by linear interpolation axis | |||||
| Maximum number of axes controlled by circular interpolation | 2 axes per axis group | ||||
| Maximum number of axis groups | 32 groups | ||||
| Motion control cycle | EtherCAT uses the same control cycle for data communication processing. | ||||
| Cam | Cam data points | Maximum number of points per cam table | 65,535 points | ||
| Maximum number of points across all cam tables | 1,048,560 points | ||||
| Maximum number of points in a cam table | 640 tables | ||||
| Position Unit | Pulse Count, Millimeters, Micrometers, Nanometers, Degrees, or Inches | ||||
| Overdrive Factor | 0.00% or 0.01%～500.00% | ||||
| External USB Port | Supported Services | Sysmac Studio Connection | |||
| Physical Layer | |||||
| Transmission distance between hub and node | Maximum 5m | ||||
| Built-in EtherNet/ IP port | Physical layer | 10Base-T or 100Base-TX | |||
| Media access method | CSMA/CD | ||||
| Modulation | Baseband | ||||
| Topology | Star | ||||
| Transmission Speed | 100Mbps (100Base-TX) | ||||
| Transmission Medium | Ethernet Category 5, 5e or higher STP (Shielded Twisted Pair) Cable | ||||
| Maximum transmission distance between Ethernet switch and node | 100m | ||||
| Maximum number of serial connections | There is no limit when using an Ethernet switch. | ||||
| CIP Service: Tag Data Link (Periodic Communication) | Maximum Number of Connections | 32 | |||
| Packet Interval *4 | 1～10,000ms, in 1.0ms increments *5 Can be set for each connection. (Regardless of the number of nodes, data is updated at the set interval.) | ||||
| Allowed Communication Bands | 3,000 pps * 6 * 7 (including heartbeat) | ||||
| Maximum Number of Tag Groups | 32 | ||||
| Tag Type | Network Variables, CIO Area, Working Area, Keep-alive Area, DM and EM Areas | ||||
| Number of tags per connection (i.e., per tag group) | 8 tags (7 tags when the tag group includes controller state) | ||||
| Maximum link data per node (Total data of all tags) | 19,200 bytes | ||||
| Maximum data size per connection | 600 bytes | ||||
| Maximum number of tag groups that can be logged in | 32 (1 connection = 1 tag group) | ||||
| Maximum tag group | 600 bytes (Use 2 bytes when the tag group contains controller state) | ||||
| Multicast packet filter *8 | Supported. | ||||
| CIP Message Service: Explicit Message | Level 3 (Number of Connections) | 32 (Client and Server) | |||
| UCMM (Connectionless) | Maximum Number of Clients That Can Communicate at Once | 32 | |||
| Maximum Number of Servers That Can Communicate at Once | 32 | ||||
| Built-in EtherCAT Port | Maximum number of TCP Socket services | 30 *9 | |||
| Communication Standard | IEC 61158 Type 12 | ||||
| EtherCAT Master Specifications | Class B (Compatible with motion control function package) | ||||
| Physical Layer | 100BASE-TX | ||||
| Modulation | Baseband | ||||
| Transmission Speed | 100Mbps (100Base-TX) | ||||
| Duplex Mode | Auto | ||||
| Topology | Linear, Daisy-Chain, and Branching | ||||
| Transmission Medium | Category 5 or higher twisted-pair cable (aluminum foil + braided double-shielded straight-through cable) | ||||
| Maximum transmission distance between nodes | 100m | ||||
| Maximum number of slave stations | 192 | ||||
| Maximum Process Data | Input: 5,736 bytes Output: 5,736 bytes (but the maximum number of frames for process data is 4.) | ||||
| Maximum Process Data per Slave Station | Input: 1,434 bytes Output: 1,434 bytes | ||||
| Longest Communication Period | 500/1,000/2,000/4,000μs | ||||
| Synchronization Jitter | 1μs (Max) | ||||
| Internal Clock | At an ambient temperature of 55°C: Monthly error is -3.5 to +0.5 minutes At an ambient temperature of 25°C: Monthly error is -1.5 to +1.5 minutes At an ambient temperature of 0°C: Monthly error is -3 to +1 minute |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | OMRON |
| Category | Controller |
