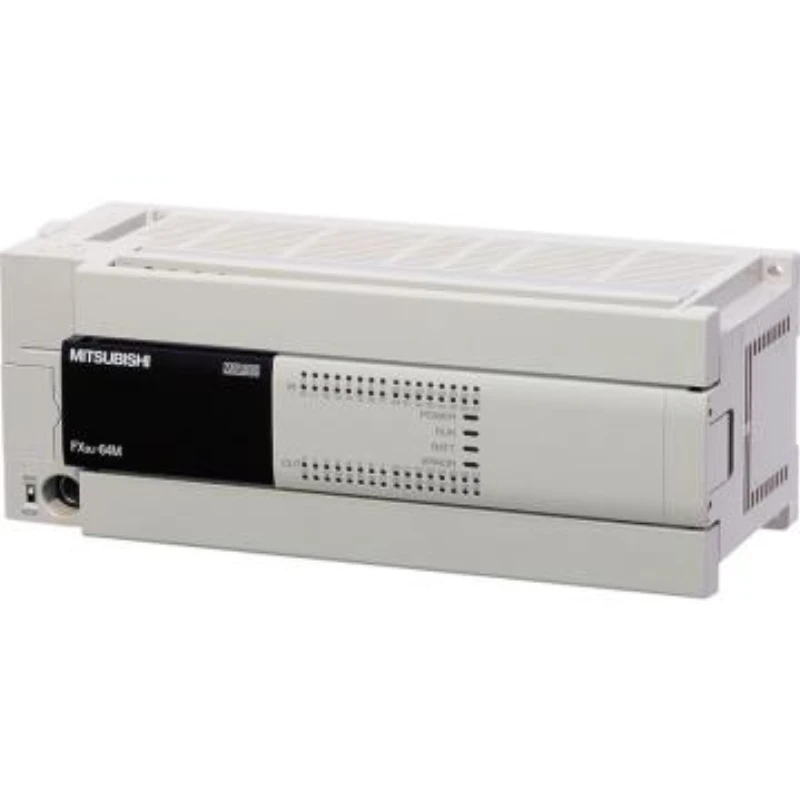

Mitsubishi Electric PLC module, FX3U-128MT/ES-A
LEHIY item code: LH-1220
Rated Voltage: 100-240VAC
Category: Integrated PLC
Digital Input/Output: 64/64
Quick buying check
This page helps you check Mitsubishi Electric PLC module, FX3U-128MT/ES-A before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Overview
| Mitsubishi Electric PLC Module, FX3U-128MT/ES-A |
Product Features
● Control Scale: 128 points MR/MT ● Third Generation Micro Programmable Controller ● Built-in 64K large-capacity RAM memory ● Built-in industry-leading high-speed processing 0.065μS/basic instruction ● Control Scale: 16~384 (including CC-LINK I/O) points ● Built-in independent. 3-axis 100kHz positioning function (transistor output type) ● The left side of each basic unit can connect to a powerful and easy-to-use adapter. |
Technical Specifications
SpecificationsPower Input/Output Power Specifications AC Power Type: AC100V-240V 50/60Hz DC Power Type: DC24V Power Consumption AC Power Type: 30W (16M), 35W (32M), 40W (48M), 45W (64M), 50W (80M) 65W (128M) DC power supply type: 25W (16M), 30W (32M), 35W (48M), 40W (64M), 45W (80M) Inrush current AC power supply type: Maximum 30A less than 5ms/AC100V, Maximum 45A less than. 5ms/AC200V 24V power supply DC power supply type: 400mA or less (16M, 32M) 600mA or less (48M, 64M, 80M, 128M) Input specifications DC24V, 5～7mA (for no voltage contact or sinking input: NPN open collector transistor input, for source input: PNP open collector transistor input) Output specifications Relay output. type: 2A/1 point, 8A/4 points COM 8A/8 points COM AC250V (240V for CE, UL/cUL specifications) DC30V and below Transistor output type: 0.5A/1 point, 0.8A/4 points, 1.6A/8 points COM DC5V~DC30V Input/output expansion. Can be connected to expansion devices for the FX2N series. Performance: Program Memory: Built-in 64,000-step RAM (battery supported) Optional: 64,000-step flash memory cassette Clock Function: Built-in real-time clock (with leap year correction), monthly deviation ±45 seconds/25℃ Instructions: 27 basic instructions, 2 step trapezoidal loop instructions, 209 application instructions Processing Speed: Basic instructions:. 0.065s/instruction, application instructions: 0.642~100s/instruction High-Speed Processing: Includes input/output refresh instructions, input filter adjustment instructions, input interrupt function, timer interrupt function, high-speed counting interrupt function, pulse capture function Maximum Number of Input/Output Points: 384 points (sum of basic unit, extended device. I/O points, and remote I/O points) Auxiliary Relays, Timers: Auxiliary relays: 7680 points, timers: 512 points Counter 16-bit up counter: 200 points 32-bit counter: 35 points High-speed 32-bit counter: [1 phase] 100kHz/6 points, 10kHz/2 points [2 phases] 50kHz/2 points (can be. set to 4 times) When using a high-speed input adapter, it is 1 phase 200kHz, 2 phases 100kHz Data register: Generally 8,000 points, extended register 32768 points, extended file register (requires memory box) 32768 points, indexed register 16 points Other: Function extension version can install FX3U-□□□-BD type. function extension version Special adapters: . Analog (maximum 4 units), Communication (including communication board, maximum 2 units) [requires function extension board] . High-speed input/output (input: maximum 2 units, output: maximum 2 units) [requires function extension board when using analog or communication special adapters simultaneously] Special extensions Connectable to special units and modules of the FX0N, FX2N, and FX3U series. Display module can be built into FX3U-7DM: STN monochrome LCD with backlight, 8 full-width characters/16 half-width characters × 4 lines, JIS Level 1/2 characters. Supports data communication. Supports data links RS-232, CRS-485, RS-422, N:N network, parallel connection, and computer connection. |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Mitsubishi Electric/MITSUBISHI ELECTRIC |
| Category | Integrated PLC |
| Rated Voltage | 100-240VAC |
| Digital Input/Output | 64/64 |
| Input Signal | Relay |
| Output Method | Relay |
| Built-in Memory | 64K |
Plain language sourcing guide for Mitsubishi Electric PLC module, FX3U-128MT/ES-A
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Mitsubishi | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Mitsubishi Electric PLC module, FX3U-128MT/ES-A
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Mitsubishi Electric PLC module, FX3U-128MT/ES-A verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
