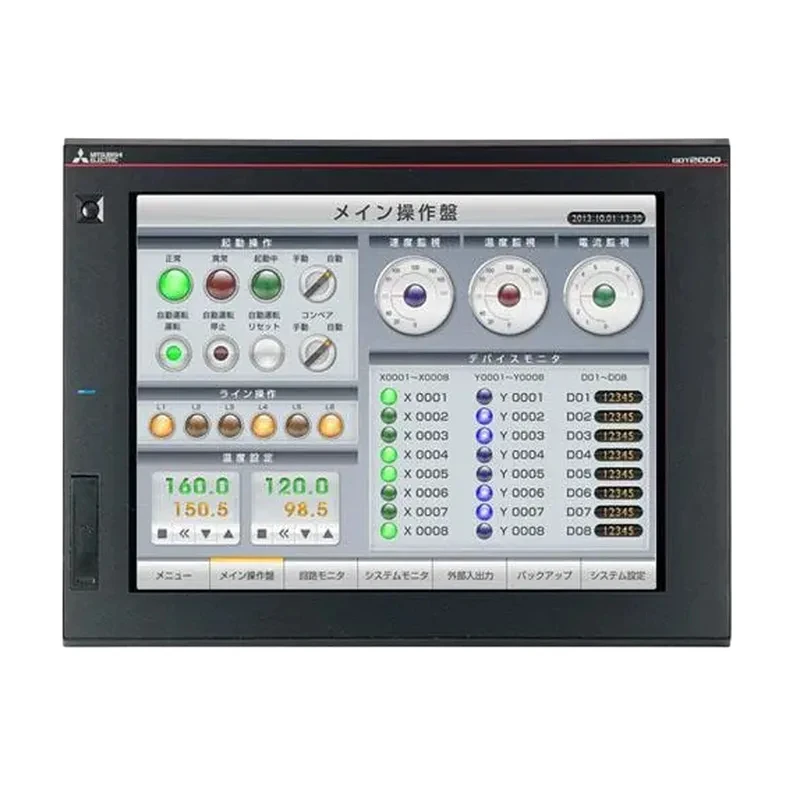

Mitsubishi GT2715-XTBD 15-inch DC24V color touchscreen
LEHIY item code: LH-0662
Quick buying check
This page helps you check Mitsubishi GT2715-XTBD 15-inch DC24V color touchscreen before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
| General Specifications | |||||
| Project | Specifications | ||||
| Use ambient temperature "1 | 0~55℃2 | ||||
| Save ambient temperature | -20~60℃ | ||||
| Use ambient humidity | 10 ~ 90% RH, no condensation | ||||
| Save ambient humidity | 10 ~ 90% RH, no condensation | ||||
| Anti-Vibration | Compliance with JISB3502, EC61131-2 | Frequency | Acceleration | Half amplitude | Number of scans |
| During intermittent vibration | 5~8.4Hz | 3.5mm | X.Y.Z 10 times in each direction | ||
| 8.4~150Hz | 9.8m/s2 | ||||
| During continuous vibration | 5~8.4Hz | 1.75mm | |||
| 8.4~150Hz | 4.9m/s2 | ||||
| Impact resistance | 3 times in each of JISB3502, IEC61131-2147m/s2(15G)X.Y, and Z directions | ||||
| Use environment * 6 | No fumes, corrosive gases, flammable gases, conductive dust, no serious, no direct sunlight (same for storage) | ||||
| Use altitude * 3 | Below 2000m | ||||
| Installation site | Inside the control cabinet | ||||
| Overvoltage category * 4 | Below II | ||||
| Pollution degree * 5 | 2 or less | ||||
| Cooling method | Self-cooling | ||||
| Ground | D type grounding (3rd type grounding), connect to the control cabinet when grounding is not possible |
| Performance Specifications | |||
| Project | Specifications | ||
| GT2715-XTBA GT2715-XTBD | GT2712-STBA GT2712-STBD | GT2712-STWA GT2712-STWD | GT2710-STBA GT2710-STBD |
| Display "1*2 | Display type | TFT Color LCD | |
| Screen size | 15 inches | 12.1 inches | 10.4 inches |
| Resolution | XGA:1024X768 dot | SVGA:800X600 dot | |
| Display Dimensions | 304.1(W)×228.1(H)mm | 246(W)×184.5(H)mm | 211.2(W)×158.4(H)mm |
| Display the number of characters | 16 dot matrix standard font: 64 words X48 lines (full width) 12 dot matrix standard font: 85 words X64 lines (full width) | 16 dot matrix standard font: 50 characters x 37 lines (full width) 12 dot matrix standard font: 66 characters x 50 lines (full width) | |
| Display color | 65536 | ||
| Brightness adjustment | Level 32 | ||
| Backlight | LED (not replaceable) | ||
| Backlight life * 4 | About 60000 hours (the time when the ambient temperature is 25 ℃ and the display brightness is 50%) | ||
| Touch Panel * 3 | Mode | Analog resistive film mode | |
| Key size | Minimum 2 × 2 dot matrix (per key) | ||
| Press simultaneously | Maximum 2 points | ||
| Lifetime | More than 1 million times (operating force below 0.98N) | ||
| Body Sensor | Detection distance | lm | |
| Detected temperature | The temperature difference between the body temperature and the ambient temperature is more than 4°C | ||
| User Storage | User memory capacity | Memory for storage (ROM):57MB Memory for operation (RAM):128MB | |
| Lifetime (number of writes) | 100000 times | ||
| Internal Clock Accuracy | ± 90 sec/month (ambient temperature 25 ℃) | ||
| GT11-50BAT type lithium battery | |||
| Battery | Lifetime | Approximately 5 years (ambient temperature 25 ℃) | |
| Built-in interface | RS-232 | lch transmission speed: 115200/57600/38400/19200/9600/4800bps interface shape: D-sub 9-pin (male) | |
| RS-422/485 | lch transmission speed: 115200/57600/38400/19200/9600/4800bps interface shape: D-sub 9-pin (female) | ||
| Ethernet | lch data transfer mode: 10BASE-T/100BASE-TX interface shape: RJ-45 (module plug) | ||
| USB(host) | 2ch (front/back) | lch (back | 2ch (front/back) |
| Maximum Transfer Speed: High-Speed 480Mbps Interface Shape: USB-A | |||
| USB(device) | lch (Back | lch (front) | |
| Maximum Transfer Speed: High-Speed 480Mbps Interface Shape: USB Mini-B | |||
| SD memory card | 1ch support SDHC (up to 32GB) | ||
| Extended interface * 6 | For installing communication module/optional module | ||
| Extended auxiliary interface | For installing optional modules | ||
| Side Interface | For installing communication module | ||
| Buzzer output | Tone (interval, length adjustable) | ||
| POWER LED | Emitting color: 2 colors (blue, orange) | ||
| Protection Structure | Front: IP67F * 5 In cabinet: IP2X | ||
| Dimensions | 397(W)×300(H)×60(D)mm | 316(W)×246(H)×52(D)mm | 303(W)×218(H)×52(D)mm |
| Panel Opening Dimensions | 383.5(W)×282.5(H)mm | 3020W)×228(H)mm | 289(W)×200(H)mm |
| Weight (excluding mounting accessories) | 4.5kg | 2.4kg | 2.1kg |
| Support package | GT Works3Version1.130L or above |
| Project | Specifications | |||
| GT2710-VTBA GT2710-VTBD | GT2710-VTWA GT2710-VTWD | GT2708-STBA GT2708-STBD | GT2708-VTBA GT2708-VTBD | GT2705-VTBD |
| Display * 1*2 | Display type | TFT Color LCD | ||
| Screen size | 10.4 inches | 8.4 inches | 5.7 inches | |
| Resolution | VGA:640×480 dot | SVGA:800×600 dot | VGA:640×480 dot | |
| Display Dimensions | 211.2(W)× 158.4(H)mm | 170.9(W)×128.2(H)mm | 115.2(W)×86.4(H)mm | |
| Display the number of characters | 16 dot matrix standard font: 40 words x 30 lines (full width) 12 dot matrix standard font: 53 words x 40 lines (full width) | 16 dot matrix standard font, 50 words X37 line risk angle, 12 dot matrix standard font, 66 words X50 line bolt angle | 16 dot matrix standard font: 40 words x 30 lines (full width) 12 dot matrix standard font: 53 words x 40 lines (full width) | |
| Display color | 65536 | |||
| Brightness adjustment | Level 32 | |||
| Backlight | LED (not replaceable) | |||
| Backlight life * 4 | About 60000 hours (the time when the display brightness is 50% at an ambient temperature of 25 ℃) | |||
| Touch Panel 3 | Mode | Analog resistive film mode | ||
| Key size | Minimum 2 × 2 dot matrix (per key) | |||
| Press simultaneously | Maximum 2 points | |||
| Lifetime | More than 1 million times (operating force below 0.98N) | |||
| Body Sensor | Detection distance | |||
| Detected temperature | ||||
| User Storage | User memory capacity | Memory for storage (ROM):57MB Memory for operation (RAM):128MB | Memory for storage (ROM):32MB Memory for operation (RAM):80MB | |
| Lifetime (number of writes) | 100000 times | |||
| Internal Clock Accuracy | ± 90 sec/month (ambient temperature 25 ℃) | |||
| GT11-50BAT type lithium battery | ||||
| Battery | Lifetime | Approximately 5 years (ambient temperature 25 ℃) | ||
| Built-in interface | RS-232 | 1ch transmission speed: 115200/57600/38400/19200/9600/4800bps interface shape: D-sub 9-pin (male) | ||
| RS-422/485 | 1ch transmission speed: 115200/57600/38400/19200/9600/4800bps interface shape: D-sub 9-pin (female) | |||
| Ethernet | lch data transfer mode: 10BASE-T/100BASE-TX interface shape: RJ-45 (module plug) | |||
| USB(host) | 2ch (front/back) | lch (back | 2ch (front/back) | |
| Maximum transfer speed: High-Speed 480Mbps Interface shape: USB-A | ||||
| USB(device) | lch (front) | lch (back | 1ch (front) | |
| Maximum Transfer Speed: High-Speed 480Mbps Interface Shape: USB Mini-B | ||||
| SD memory card | 1ch support SDHC (up to 32GB) | |||
| Extended interface * 6 | For installing communication module/optional module | |||
| Extended auxiliary interface | For installing optional modules | |||
| Side Interface | For installing communication module | |||
| Buzzer output | Single tone (interval, length adjustable) | |||
| POWER LED | Emitting color: 2 colors (blue, orange) | |||
| Protection Structure | Front: IP67F * 5 In cabinet: IP2X | |||
| Dimensions | 303(W)×218(H)×52(D)mm | 241(W)×194(H)×52(D)mm | 167(M)X139(H)×60(D)mm | |
| Panel Opening Dimensions | 289(W)×200(H) mm | 227(W)×176(H)mm | 153(W)×121(H)mm | |
| Weight (excluding mounting accessories) | 2.1kg | 1.5kg | 1.0kg | |
| Support package | GT Works3Version1.130L or above |
| Power Specifications | |||||||||
| Project | Specifications | ||||||||
| GT2712-STBA GT2715-XTBA GT2712-STWA | GT2710-STBA GT2710-VTBA GT2710-VTWA | GT2708-STBA GT2708-VTBA | GT2715-XTBD | GT2712-STBD GT2712-STWD | GT2710-STBD GT2710-VTBD GT2710-VTWD | GT2708-STBD GT2708-VTBD | GT2705-VTBD | ||
| Supply voltage | AC100 ~ 240V(+ 10%,-15%) | DC24V(+25%.-20%) | |||||||
| Power frequency | 50/60Hz±5% | ||||||||
| At maximum load | Below 51W | Below 44W | Below 41W | Below 41W | Below 48W | Below 45W | Below 42W | Under 39W | Under 30W |
| GOT Monomer | 25W | 19W | 17W | 15W | 23W | 18W | 15W | 13W | 7W |
| Power consumption when GOT single backlight is off | 10W | 10W | 10W | 10W | 8W | 8W | 8W | 8W | 5W |
| Impulse current | Below 40A (3ms, ambient temperature 25 ℃ maximum load) | Under 60A (2ms, ambient temperature 25 ℃, maximum load) | below 5A (20ms, ambient temperature 25 ℃. at maximum load) | Below 69A (1ms. Ambient temperature 25 ℃ at maximum load) | |||||
| Allowable transient stop time | Within 20ms (above AC100V) | Within 10ms | |||||||
| Noise tolerance | Noise simulator with a noise voltage of 1500Vp-p and a noise amplitude of 1μs, 25~60Hz according to the noise frequency | Noise simulator with noise voltage 500Vp-p, noise amplitude lμs 25~60Hz according to noise frequency | |||||||
| Withstand voltage | AC1500V1 minutes between power terminals and ground | AC350V1 minutes between power terminals and ground | |||||||
| Insulation resistance | Power terminal omnibus DC500V insulation resistance meter between ground 10MQ or more |
Plain language sourcing guide for Mitsubishi GT2715-XTBD 15-inch DC24V color touchscreen
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
