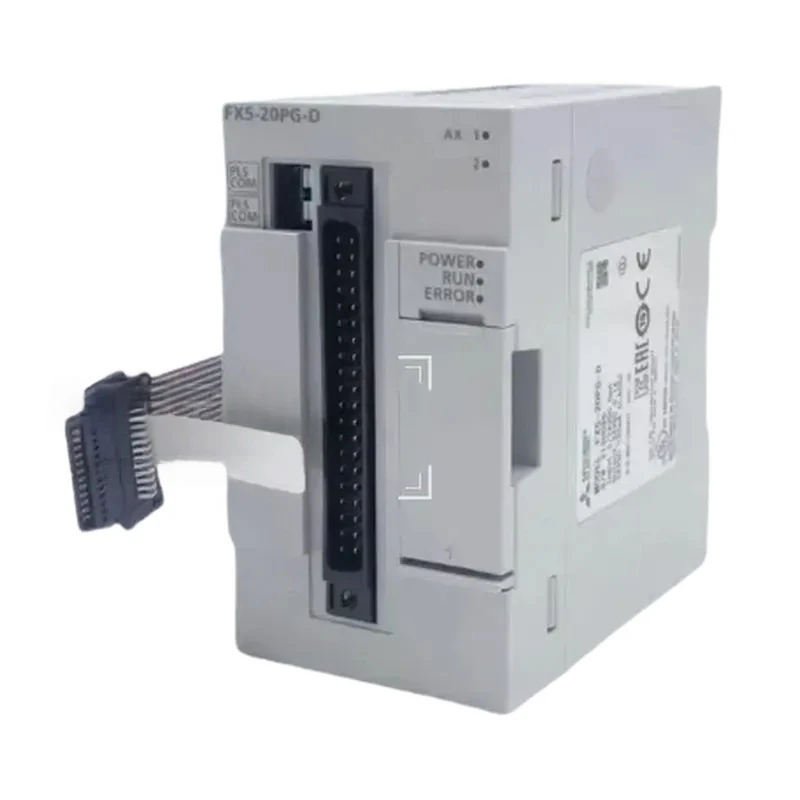

FX5-20PG-D Mitsubishi High-Performance Positioning Module

Mitsubishi Electric's FX5-20PG-D positioning module is a high-performance control device designed to meet the needs of complex industrial automation. The following is the detailed technical parameters and product application introduction.

Technical parameters

1. Performance specifications

   • Number of control axes :2 axes

   • Pulse output form : differential drive

   • Interpolation function : supports 2-axis linear interpolation and 2-axis circular interpolation

   • Control mode :PTP (point-to-point) control, trajectory control (straight line, arc), speed control, speed and position switching control, position and speed switching control

   • Control unit : millimeter (mm), inch (inch), degree (degree), pulse (pulse)

   • Positioning data : 600 data per axis

   • Maximum connection distance between servos :10 m

   • Flash writes : 100000

   • Input and output points :8 points

   • Corresponding CPU module :FX5U/FX5UC CPU module, version Ver. 1.050; FX5-CNV-IF or FX5-C1PS-5V must be used in the FX5UC system.

   • Corresponding engineering tools :GX Works3, version Ver. 1.035M and above

   • Dimensions :905083mm

   • Weight :0.2kg

2. Enter specifications

   • Drive module ready (READY), stop signal (STOP), upper limit limit signal (FLS), lower limit signal (RLS)

     • Signal voltage: DC24V

     • Input current: 5mA

     • ON current: 3.5mA or more

     • OFF current: 1.7mA or less

     • Signal form: no voltage contact input, drain type (NPN open collector transistor), source type (PNP open collector transistor)

     • Response time: less than 4 milliseconds

     • Circuit insulation: Optocoupler insulation

     • Action display: None (can be confirmed by buffer memory)

   • Zero signal (PG05/PG024)

     • Signal voltage: PG05 is DC5V,PG024 is DC24V

     • Input current: 5mA

     • ON current: PG05 is 2mA or more, PG024 is 3mA or more

     • OFF current: PG05 is less than 0.5mA, PG024 is less than 0.2mA

     • Signal form: NPN open collector transistor

     • Response time:

     • Circuit insulation: Optocoupler insulation

     • Action display: None (can be confirmed by buffer memory)

   • Manual pulser A phase (PULSER A)/Manual pulser B phase (PULSER B)

     • Signal voltage: DC5V

     • Input current: 14mA

     • ON current: 2mA or more

     • OFF current: less than 0.2mA

     • Signal form: NPN open collector transistor

     • Response time:

     • Circuit insulation: Optocoupler insulation

     • Action display: None (can be confirmed by buffer memory)

   • Near point DOG signal (DOG)

     • Signal voltage: DC24V

     • Input current: 5mA

     • ON current: 3.5mA or more

     • OFF current: 1.7mA or less

     • Signal form: NPN, PNP

     • Response time:

     • Circuit insulation: Optocoupler insulation

     • Action display: None (can be confirmed by buffer memory)

Product Application

1. Industrial Production Line :FX5-20PG-D modules are widely used in industrial production lines to achieve precise positioning control, such as assembly, packaging and material handling, which significantly improves production efficiency.

2. Automation equipment : This module is suitable for various automation equipment, such as robots and CNC machine tools, supports high-speed start and advanced positioning control, and ensures the efficiency and accuracy of equipment operation.

3. Intelligent Manufacturing : With the development of industrial 4.0, FX5-20PG-D modules can be combined with emerging technologies such as big data and artificial intelligence to promote the development of intelligent manufacturing and improve the flexibility and intelligence of production lines.

4. Robot field : In robot operation, the high-precision control of the FX5-20PG-D module enables it to be competent for complex path tracking and positioning tasks, and is widely used in high-end robot systems.

Mitsubishi FX5-20PG-D high-performance positioning module has become an indispensable equipment in the field of industrial automation with its powerful technical parameters and a wide range of application scenarios. It not only improves production efficiency, but also plays an important role in the process of intelligence and automation.
