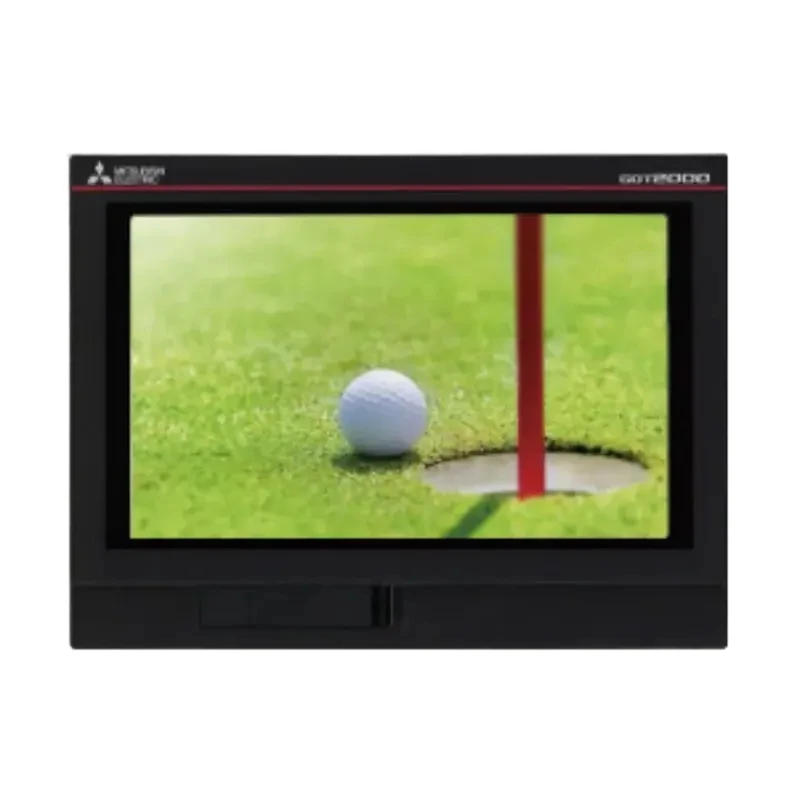

GT2107-WTBD Mitsubishi Touchscreen 7-inch Widescreen

Mitsubishi Touch Screen Widescreen Series GT2107-WTBD Product Specifications: 1. Performance Specifications [Display Department] . Display Type: TFT Color LCD . Picture Size: 7-inch Widescreen . Resolution: WVGA:1280*800 dots . Display Size: 152.40(W)* 91.44(H) mm . Number of characters displayed: 16 dot matrix standard font: 50 characters * 30 lines (full width) 12 dot matrix standard font: 66 characters * 40 lines (full width) . Display color: 65536 colors . Brightness adjustment: 32 levels . Backlight: LED (not replaceable) [Touch panel] . Mode: analog resistive film mode . Key size: minimum 2*2 points (per key) Press at the same time: do not press at the same time (only 1 point can be touched) . Life: more than 1 million times (operation force below 0.98N) [panel color] black [user memory] . User memory capacity: memory for storage (ROM):15MB . life (number of writes): 100000 times [internal clock accuracy] 45 seconds/month (ambient temperature 25 ℃) [battery] GT11-50BAT lithium battery, life of about 5 years (ambient temperature 25 ℃) [built-in interface] . RS-232:1ch transmission speed: 115200/57600/38400/19200/9600/4800bps interface shape: D-sub 9-pin (male) RS-422/485:1ch transmission speed: 115200/57600/38400/19200/9600/4800bps interface shape: D-sub 9-pin (female) . Ethernet: 2ch data transmission mode: 100BASE-TX/10BASE-T interface shape: RJ-45 (module plug) . USB(host):1ch (back), maximum transfer speed: High-Speed 12Mbps interface shape: USB-A . USB(device):1ch (front), maximum transfer speed: High-Speed 12Mbps interface shape: USB Mini-B . SD memory card: 1ch support SDHC (maximum 32GB) [buzzer output] single tone (adjustable interval and tone length) [protective structure] front: IP67F Inside the cabinet: IP2X [safety standard/electric wave method] CE, UL, cUL, EAC, KC [overall dimensions] 189(W)* 142(H)* 48(D) mm [panel opening size] 180.5(W)* 133.5(H) mm [weight (except installation accessories)] 0.75kg [support software package] GT Works3 Version1.175H above 2, power supply specification [power supply voltage] DC24V(+ 25%,-20%) [power consumption] . at maximum load: below 11.3W . When GOT single backlight is off: 7W [Impulse Current] Below 35A (3ms, Ambient Temperature 25 ℃, Maximum Load) [Allowable Instantaneous Stop Time] Within 5ms [Noise Resistance] Noise Voltage 500Vp-p, Noise Amplitude 1μs; According to Noise Frequency 30~100Hz Noise Simulator [Voltage Resistance] AC350V between power terminals and ground wires for 1 minute [Insulation Resistance] DC500V between power terminals and ground wires; Insulation resistance meter above 10MΩ

Plain language sourcing guide for GT2107-WTBD Mitsubishi Touchscreen 7-inch Widescreen

Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.

Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.

Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.

If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.

Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.

Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.

Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.

Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.

For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.

For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.

For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
