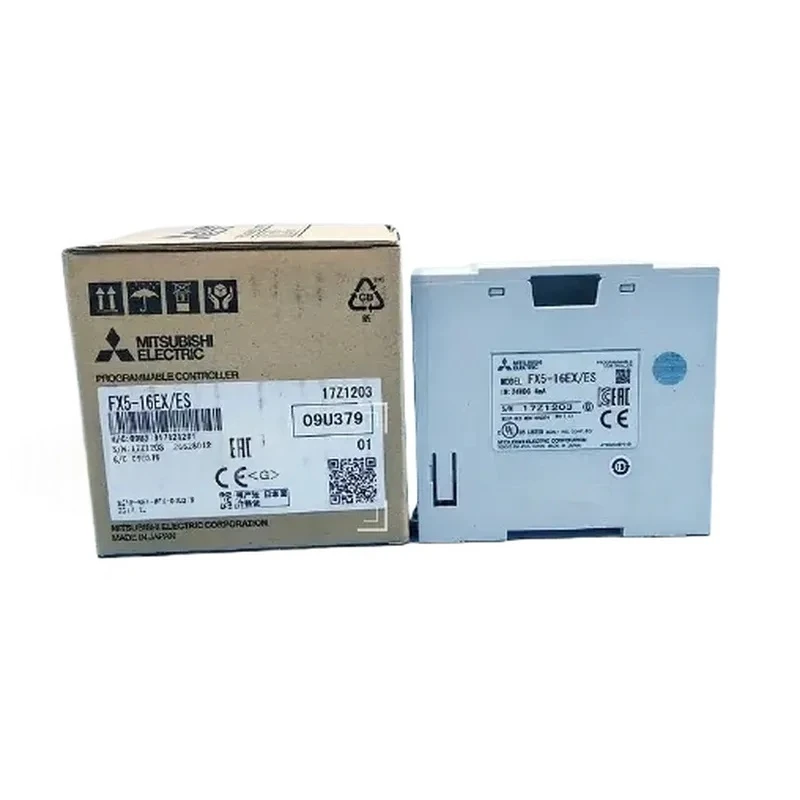

FX5-16EX/ES Mitsubishi PLC Expansion Input Module
LEHIY item code: LH-0233
Quick buying check
This page helps you check FX5-16EX/ES Mitsubishi PLC Expansion Input Module before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Technical parameters
Basic specifications
Model :FX5-16EX/ES
Applicable CPU units :FX5U, FX5UC CPU units (FX5UC must be used with FX5-CNV-IFC)
Dimensions (width × height × depth):40mm × 80mm × 90mm
Weight : about 0.25kg
Power Specifications
Rated voltage :DC5V (internal power supply of the unit), DC24V (external power supply)
Current consumption :100mA(DC5V), 85mA(DC24V)
Enter specifications
Enter points :16 points
Input connection method : terminal block (M3 screw)
input type : drain/source type
Input signal voltage :DC24V + 20%,-15%
Input signal current :4mA/DC24V
Input impedance :5.6kΩ
input sensitive current : above 3.0mA when ON and below 1.5mA when OFF
Input response time : 50 μs or less when ON and 150 μs or less when OFF
Input signal form : No voltage contact input (NPN/PNP)
Loop insulation : Optocoupler insulation
Input action : LED lights when input ON
Product Application
Glass machinery
In glass cutting, edging and other processes, the FX5-16EX/ES module accurately controls the mechanical action by receiving sensor signals to ensure the high-quality production of glass products.
Packaging machinery
In the packaging production line, this module can handle a variety of input signals, such as the position detection of the packaging material, the working status of the sealing machine, etc., thereby improving the packaging efficiency and accuracy.
Printing Machinery
In the printing equipment, the FX5-16EX/ES module is responsible for monitoring the position of the paper, printing color detection and other key links to ensure the smooth and efficient printing process.
Injection Molding Machinery
In the injection molding process, through the precise input control of the module, the precise management of each stage of the injection molding machine is realized, and the production efficiency and product quality are improved.
Motor Winding Equipment
Motor winding equipment requires high-precision control. The FX5-16EX/ES module can monitor various parameters in the winding process in real time to ensure winding quality and efficiency.
Construction machinery
In construction machinery such as cranes, excavators and other equipment, the module receives operating instructions and sensor signals to achieve precise control of mechanical actions and improve equipment safety and work efficiency.
FX5-16EX/ES expansion input modules have become an indispensable part of industrial automation control systems due to their compact design, stable performance and wide applicability. Its diversified input types and fast response time can meet the needs of different industrial application scenarios and provide users with efficient and reliable automation control solutions.
FX5-16EX/ES, Mitsubishi FX5-16EX/ES,FX5-16EX/ES manualPlain language sourcing guide for FX5-16EX/ES Mitsubishi PLC Expansion Input Module
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
