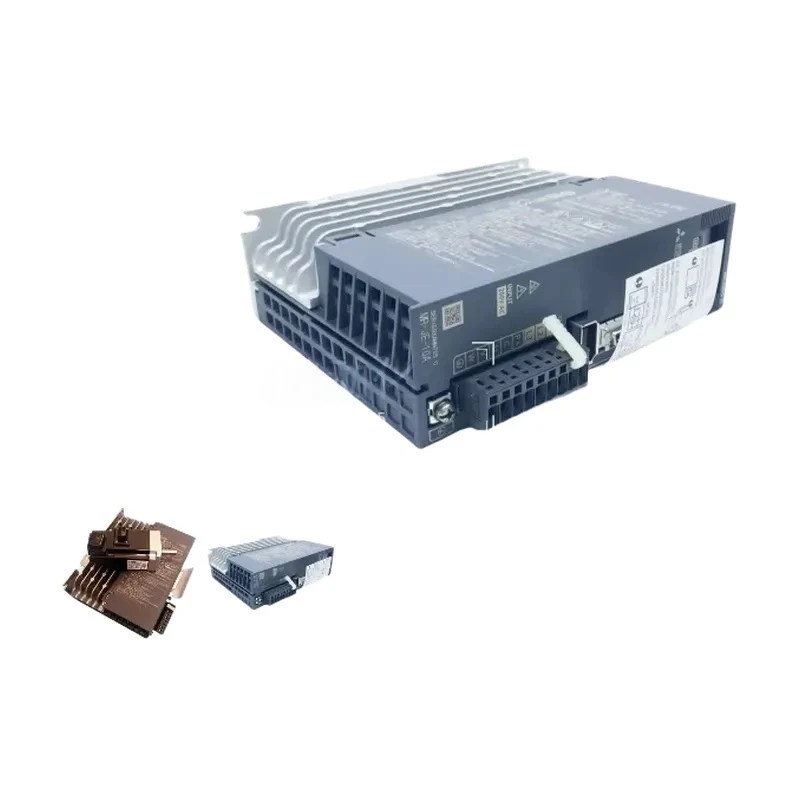

MR-JE-20C Mitsubishi Servo Drive 200W Controller with Ethernet Interface
LEHIY item code: LH-0204
Quick buying check
This page helps you check MR-JE-20C Mitsubishi Servo Drive 200W Controller with Ethernet Interface before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
| Servo Amplifier Model Composition | ||
| MR-JE - 10 C | ||
| MR-JE | Mitsubishi General Servo Amplifier MELSERVO-JE Series | |
| 10 | Symbol | Rated output [KW] |
| 10 | 0.1 | |
| 20 | 0.2 | |
| 40 | 0.4 | |
| 70 | 0.75 | |
| 100 | 1 | |
| 200 | 2 | |
| 300 | 3 | |
| C | Symbol | Interface |
| C | Ethernet | |
| Servo Amplifier and Servo Motor Combination | ||
| Servo Amplifier | Servo motor | |
| HG-KN Series | HG-SN Series | |
| MR-JE-10C | HG-KN13( B )J-S100 | - |
| MR-JE-20C | HG-KN23( B )J-S100 | - |
| MR-JE-40C | HG-KN43( B )J-S100 | - |
| MR-JE-70C | HG-KN73( B )J-S100 | HG-SN52( B )J-S100 |
| MR-JE-100C | - | HG-SN102( B )J-S100 |
| MR-JE-200C | - | HG-SN152( B )J-S100,HG-SN202( B )J-S100 |
| MR-JE-300C | - | HG-SN302( B )J-S100 |
| MR-JE-C(Ethernet interface) specifications | |||
| Servo Amplifier Model | MR-JE-20C | ||
| Output | Rated voltage | Three-phase AC170V | |
| Rated current [A] | 1.5 | ||
| Power Input | Voltage · Frequency wow 1) | Three-phase or single-phase AC200V ~ 240V,50Hz/60H | |
| Rated current 6[A] | 1.5 | ||
| Permissible Voltage Fluctuation | Three-phase or single-phase AC170V ~ 264V | ||
| Permissible frequency fluctuation | Within ± 5% | ||
| Power supply for interface | DC24V ± 10% (required power supply capacity: 0.3A) | ||
| Control Mode | Sine wave PWM control · current control mode | ||
| Allowable regenerative capacity of servo amplifier built-in regenerative resistor Note 2.3)[W] | |||
| Dynamic brake 4) | Built-in | ||
| Communication function | Ethemet (Note 8) | Connection with master station (controller), personal computer, etc. (MRConfigurator2 support) | |
| USB | Connection to a personal computer, etc. (MRConfigurator2 support) | ||
| Encoder Output Pulse | Support (ABZ phase pulse) | ||
| Position Control Mode | Maximum input pulse frequency | 4Mpulses/s (differential pulse), 200kpulses/s (open collector) | |
| Position feedback pulse | Encoder resolution (servo motor resolution per revolution):131072pulses/rev | ||
| Instruction pulse rate | Electronic gear A/B times A = 1~16777215, B = 1~16777215, 1/10 & lt;A/B & lt;4000 | ||
| Positioning finish width setting | Opulse ~ ± 65535pulses (in units of command pulses) | ||
| Excessive error | ± 3 revolutions | ||
| Torque Limit | Parameter setting or setting with external analog input (DCOV ~ +10V/maximum torque) | ||
| Speed Control Mode | Speed control range | Analog speed command 1:2000, internal speed command 1:5000 | |
| Analog speed command input | DCOV ~ ± 10V/rated speed (speed at 10V is [Pr.PC12], changeable) | ||
| Velocity Volatility | below ± 0.01% (load fluctuation: 0% ~ 100), 0% (power fluctuation: 10%) below ± 0.2 (ambient temperature: 25 ℃ ± 10 ℃) only for analog speed command | ||
| Torque Limit | Parameter setting or setting with external analog input (DCOV ~ +10V/maximum torque) | ||
| Torque Control Mode | Analog Torque Command Input | DCOV ~ ± 8V/maximum torque (input impedance: 10kQ ~ 12kQ) | |
| Speed limit | Parameter Settings | ||
| Track Mode | Track Position Mode | Command position range | Set the feed length setting range according to the object:-2147483648~2147483647[pulse], and the rotation angle setting range:-360.000~360.000[degree] |
| Command magnification | Electronic gear A/B times A = 1~16777215, B = 1~16777215, 1/27649 & lt;A/B & lt;8484 | ||
| Positioning finish width setting | Opulse ~ ± 65535pulses (in units of command pulses) | ||
| Excessive error | ± 3 revolutions | ||
| Torque Limit | Parameter setting or setting according to object | ||
| Track Speed Mode | Command speed range | -21474836.48~21474836.47r/min (using allowable speed limit) | |
| Torque Limit | Parameter setting or setting according to the object (using maximum torque limit) | ||
| Track Torque Mode | Command torque range | -3276.8~3276.7%(using maximum torque limit) | |
| Speed limit | Parameter setting or setting according to the object (using allowable speed limit) | ||
| Origin homing mode | Mitsubishi Electric's Unique Way | Near point dog type, counting type, data setting type, pushing type, ignoring origin (servo ON position origin), near point dog type rear end reference, counting type front end reference, near point dog bracket type, near point dog type front Z phase reference, near point dog type front end reference, no near point dog Z phase reference | |
| CiA402 mode | Homingonpositivehomeswitchandindexpulse (modes 3,4), Homingonnegativehomeswitchandindexpulse (modes 5,6), Homingonhomeswitchandindexpulse (modes 7,8,11,12), Homingwithoutindexpulse (modes 19,20,21,22,23,24,27,28), Homingonindexpulse (modes 33,34), Homingoncurrentposition (modes 35,37) | ||
| Servo function | Advanced vibration suppression control II, adaptive filter II, robust filter, automatic calibration, one-button adjustment, TOUGHDRIVE function, drive recording function, mechanical diagnosis function, power monitoring function | ||
| Protection | Over-current circuit, regeneration over-voltage circuit, overload circuit (electronic thermal relay), servo motor overheat protection, encoder abnormality protection, regeneration abnormality protection, under-voltage protection, instantaneous power failure protection, over-speed protection, and excessive error protection | ||
| Global Standards | See "Supporting Global Specifications, Statutes and Regulations" in this new product information P.5 ". | ||
| Structure (degree of protection) | Self-cooling, open (IP20) | ||
| Tight fit 5) | Three-phase power input | Yes | |
| Single-phase power input | Yes | ||
| Environmental conditions | Ambient temperature | Operation: 0 ℃ ~ 55 ℃ (no freezing), storage:-20 ℃ ~ 65 ℃ (no freezing) | |
| Ambient humidity | Run/save: 5% RH ~ 90% RH (no condensation) | ||
| Air conditions | Indoor (no direct sunlight), no corrosive gas, flammable gas, oil mist and dust place | ||
| Elevation | Spit below 2000m above sea level | ||
| Vibration | 5.9 m/s ², 10H ~ 55Hz(X, Y, Z directions) | ||
| Mass [kg] | 0.8 |
Plain language sourcing guide for MR-JE-20C Mitsubishi Servo Drive 200W Controller with Ethernet Interface
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Mitsubishi | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
MR-JE-20C Mitsubishi Servo Drive 200W Controller with Ethernet Interface
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
MR-JE-20C Mitsubishi Servo Drive 200W Controller with Ethernet Interface verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
