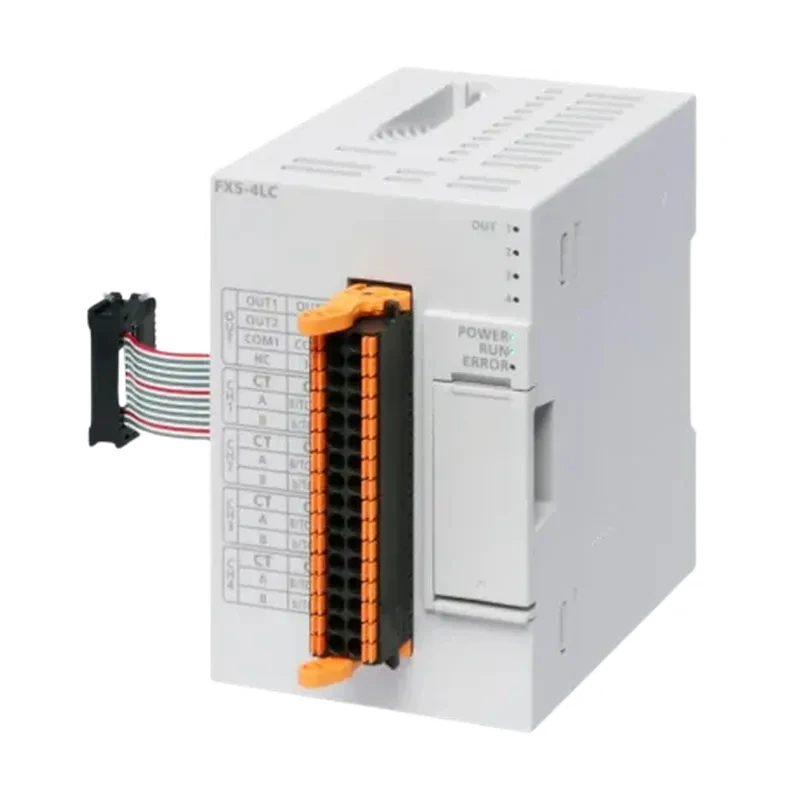

FX5-4LC Mitsubishi PLC Temperature Control Module
LEHIY item code: LH-0108
Quick buying check
This page helps you check FX5-4LC Mitsubishi PLC Temperature Control Module before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
| FX5-4LC type temperature regulating module | ||
| ◇ Features | ◇ Specifications | |
| Items | Content | |
| Control Mode | Dual position control, standard PID control, heating and cooling PID control, cascade control | |
| Control operation period | 250ms/4ch | |
| Measurement temperature range | Thermocouple | K:-200~+1300℃(-100~+2400F) J:-200~+1200℃(-100~+2100F) T:-200~+400℃(-300~+700F) S:0~1700℃(0~3200F) R:0~1700℃(0~3200°F) E :-200~+1000℃(0~1800F) B :0~1800℃(0~3000F) N:0~1300℃(0~2300F) PL Ⅱ:0~1200℃(0~2300F) W5Re/W26Re:0~2300℃(0~3000F) U:-200~+600℃(-300~+700F) L:0~900℃(0~1600F) |
| 1) Support thermocouple, temperature measuring resistor, low voltage input, | Temperature measuring resistor | Pt100(3-wire):-200 ~ +600 ℃(-300 ~ + 1100F) JPt100(3-wire):-200 ~ +500 ℃(-300 ~ + 900F) Pt1000(2-wire/3-wire):-200.0 ~ +650.0 ℃(-328 ~ + 1184F) |
| Can handle a wider range of uses. 2) The overshoot of the output value exceeding the target value and the resonance phenomenon of swinging around the target value can be suppressed. 3) The temperature change can be confirmed by the waveform, so the parameters can be adjusted while confirming the temperature waveform displayed in real time. | ||
| Low voltage input | ||
| Heater break sense | Alarm detected | |
| Enter specifications | Enter points | 4:00 |
| Type of input (selectable for each channel) | Thermocouple | |
| Temperature Measuring Resistor | ||
| *: In order to stabilize the measurement accuracy, a warm-up (power-on) time of 30 minutes or more is required after power-on. | Low voltage input | |
| Measurement accuracy * | Refer to the MELSEC iQ-F FX5 User's Manual (Thermoregulation) | |
| Cold junction temperature compensation error | Ambient temperature 0-55°C | |
| Ambient temperature -20~0 ℃ | ||
| Resolution | 0.1°C (0.1), 1.0°C (1.0), 0.5 μV or 5.0 μV (depending on the input range of the sensor used) | |
| Sample period | 250ms/4ch | |
| Effect of input lead resistance (when temperature measuring resistor is input) | 3-Wire | |
| 2-line | ||
| Effect of external resistance (with thermocouple input) | Approximately 0.125 μV/Q | |
| Input Impedance | 1M Q or more | |
| Sensor current | Approximately 0.2mA (when temperature measuring resistor input) | |
| Operation during input disconnection/short circuit | Scale upper limit/scale lower limit (when temperature measuring resistor input) | |
| Current Detector (CT) Input Specifications | Enter points | 4:00 |
| Sample period | 0.5 seconds | |
| Output specifications | Points: 4-point form: NPN open collector transistor output, rated load voltage: DC5 ~ 24V, maximum load current: 100mA, control output period: 0.5~100.0 seconds | |
| Power | DC5V 140mA (internal supply) DC24V + 20%,-15% 25mA (external supply) | |
| Insulation method | · The analog input section and transistor output section are insulated from the programmable controller by optocoupler · The analog input section and transistor output section are insulated from the power supply by DC/DC converter · The insulation between each ch (channel) | |
| Corresponding CPU Module | FX5U, FX5UC:Ver. Above 1.050 need to be FX5-CNV-IFC or FX5-C1PS-5V when connected with FX5UC CPU. | |
| Corresponding engineering tools | GX Works3:Ver. Above 1.035M support | |
| Input/output occupancy points | 8 points (calculate output or input) | |
| Number of Connectable | FX5U, FX5UC: Up to 16 units | |
| profile size method W×H×D(mm) | 60×90×102.2 | |
| Quality | Approximately 0.3kg |
Plain language sourcing guide for FX5-4LC Mitsubishi PLC Temperature Control Module
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Mitsubishi | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
