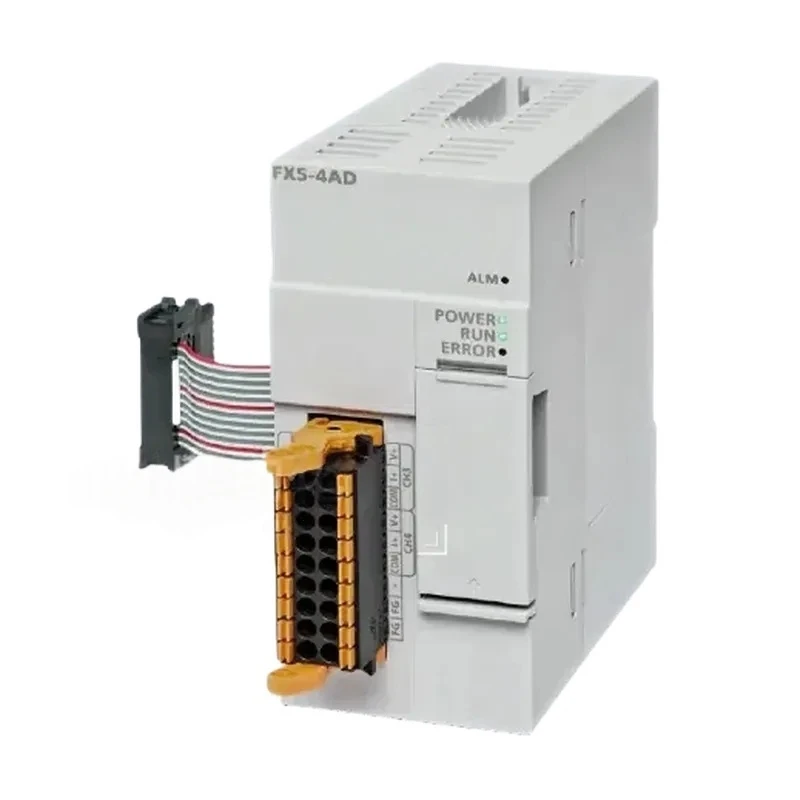

FX5-4AD Mitsubishi PLC Analog Module

FX5-4AD is a high-performance analog input module from Mitsubishi Electric designed for FX5 series PLCs. The module has 4-channel 12-bit A/D conversion function, supports high-precision analog data acquisition, and is widely used in industrial automation control systems. This article will detail the technical indicators of the FX5-4AD, product characteristics and its practical application cases.

1. Product Introduction

1. Technical indicators

• Analog input :4-channel input, supporting voltage and current input.

• Input Range : The voltage input range is DC-10 +10V, and the current input range is DC-20 + 20mA.

• Resolution : The voltage input resolution is 5mV, and the current input resolution is 20μA.

• conversion speed : 15ms per channel, 6ms per channel in high-speed conversion mode.

• isolation mode : photoelectric isolation is adopted between analog quantity and digital quantity, power supply is isolated by DC/DC converter, and input terminals are not isolated.

• Power Demand : Internal power supply DC24V 20mA, interface power supply DC5V 10mA.

• Dimensions :106mm * 17.6mm * 89.1mm.

1. Features

• High precision :12-bit A/D conversion ensures high precision of data acquisition and meets complex control requirements.

• Multi-channel :4-channel design, supporting simultaneous acquisition of multiple analog signals.

• Wide range input : Support voltage and current input, adapt to different sensor types.

• Easy to install : Compact design, easy to install on the PLC expansion bus.

• High reliability : Photoelectric isolation and power isolation design to improve system anti-interference ability.

2. Application Case

1. Central air conditioning temperature control system

In the central air conditioning system, the FX5-4AD module monitors the ambient temperature in real time by connecting the temperature sensor. The system requires that the unit will not be started when the temperature is lower than 12°C, the two units will be started in sequence when the temperature is higher than 12°C, one of the units will be stopped when the temperature is lower than 7.5°C, and the system will give an ultra-low temperature alarm when the temperature is lower than 5°C. Through the high-precision data acquisition and conversion functions of the FX5-4AD module, the efficient monitoring of the ambient temperature and the precise execution of the control logic are realized.

1. Industrial Process Control System

FX5-4AD module is used to collect analog signals of various sensors (such as pressure sensors, liquid level sensors, etc.) in industrial process control systems. Through the analysis and processing of the collected data, the PLC system can adjust the control parameters in real time to ensure the stability and efficiency of the production process. For example, in the chemical production process, the FX5-4AD module can monitor the temperature and pressure in the reactor, and adjust the heating power and material delivery amount according to the preset control logic, so as to improve the production quality and efficiency.

3. Usage

1. Module connection and numbering

The FX5-4AD module can be installed on the right side of the FX5 series PLC basic unit, and the number is 0~7 from the beginning closest to the basic unit. When connecting, pay attention to the relationship between the total points of the module and the points of the basic unit to ensure the correctness of the system configuration.

1. Buffer Register (BFM) Allocation

Data communication between the FX5-4AD module and the PLC basic unit is performed through FROM instruction and TO instruction, and both read and write operations are performed for the buffer register BFM of the module. The BFM consists of 32 16-bit registers for storing data exchange information with the module. The specific BFM distribution table should be formulated according to the actual application requirements.

Conclusion

FX5-4AD Mitsubishi PLC analog module has been widely used in the field of industrial automation control for its high precision, multi-channel, easy installation and high reliability. Through this module, the PLC system can efficiently collect and process analog data, realize complex control logic, and improve production efficiency and system stability. In the future, with the continuous development of industrial automation technology, the application prospect of FX5-4AD module will be broader.
