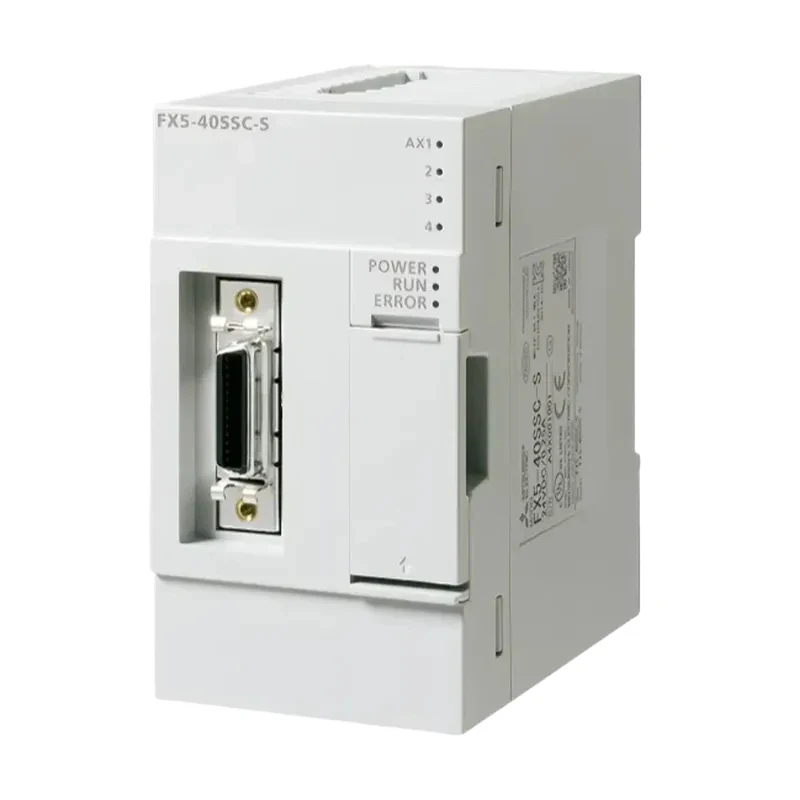

FX5-40SSC-S Mitsubishi PLC Simple Motion Controller Module
LEHIY item code: LH-0100
Quick buying check
This page helps you check FX5-40SSC-S Mitsubishi PLC Simple Motion Controller Module before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
FX5-40SSC-S Simple Motion Controller Module Specifications
| Project | Specifications | |
| Number of control axes | 4-axis | |
| Operation period | 1.777ms | |
| Interpolation | 2-Axis, 3-Axis, 4-Axis Linear Interpolation | |
| 2-axis circular interpolation | ||
| Control Mode | PTP (point-to-point) control, path control (both linear and circular paths can be set), speed control, speed and position switching control, position and speed switching control, speed and torque control | |
| Acceleration/Deceleration Processing | Trapezoidal acceleration/deceleration S-shaped acceleration/deceleration | |
| Compensation function | Electronic gear, backlash compensation, proficient function | |
| Synchronization Control | Input axis | Servo Input Shaft, Synchronous Encoder Shaft |
| Output shaft | Camshaft (up to 4 shafts) | |
| Cam Control | Number of cam logins | Max 64 (according to storage capacity, cam resolution, number of coordinates) |
| Cam data form | Travel ratio data form, coordinate data form | |
| Automatic cam generation | Automatic generation of cam data for rotary cutting machines | |
| Control Units | mm, inch, degree, pulse | |
| Positioning data | 600 data (positioning data No.1 to 600)/axis can be set by a GXWorks2 or a PLC program. | |
| Backup | Backup parameters, positioning data, and block start data can be saved to flash ROM (no battery backup required) | |
| Origin Reset | Origin reset mode | Near point DOG mode, counting mode 1, counting mode 2, data setting mode and proportional origin signal detection mode |
| High-speed origin-based reset | Available | |
| Accessibility | OPR retry, OP drift | |
| Positioning Control | Linear Control | Axis linear control, 2-axis linear interpolation control, 3-axis linear interpolation control, 4-axis linear interpolation control * 1 (synthesis speed, reference axis speed) * 1 |
| Fixed feed control | 1-axis fixed feed control, 2-axis fixed feed control, 3-axis fixed feed control * 1, 4-axis fixed feed control | |
| 2-axis circular interpolation control | Sub-point designation, circle center designation | |
| Speed control | Axis speed control, 2-axis speed control * 1, 3-axis speed control * 1, 4-axis speed control * | |
| Speed position switching control | INC mode, ABS mode | |
| Position speed switching control | INC mode | |
| Value Change Now | Specify the initial number for positioning data and changing the current value | |
| NOP instruction | Available | |
| JUMP Command | Unconditional Jump, Conditional Jump | |
| __O0P,LEND | Available | |
| Advanced Positioning Control | Block start, conditional start, wait start, synchronous start, repeat start | |
| Manual operation | JOG operation | Available |
| Jiggle operation | Available | |
| Manual Pulser | Can connect 1 module (incremental type), unit magnification (1~10000 times) | |
| Other Controls | Speed · Torque Control | Speed control (without position loop), Torque control (without position loop) |
| Absolute position coordinates | Connect the battery to the servo amplifier to ensure compatibility | |
| Sync Encoder Port | Up to 4 channels (internal port, servo amplifier, through PLC CPU port) | |
| Built-in ports | Channel (Incremental) | |
| Control Limit Function | Speed limit function | Speed limit, JOG speed limit |
| Torque Limit | Speed limit, same setting, torque limit, individual setting | |
| Force stop function | Valid/invalid switch setting function | |
| Software trip limit function | Check movement range with current feed value, check movement range with machine feed value | |
| Hardware travel limiting function | Available | |
| Control Content Change Function | Speed change function | Available |
| Override function | 1~300% | |
| Acceleration/deceleration time change function | Available | |
| Torque Change Function | Available | |
| Target position change function | Target position address and target position speed variable | |
| Additional Features | M code output function | Available |
| Step function | Use "step" as the deceleration unit and data number unit | |
| Skip function | Via PLC CPU, Via External Command Signal | |
| Teaching function | Available | |
| Parameter initialization function | Available | |
| External signal selection function | Via CPU, Via Servo Amplifier | |
| No amplifier operation function | Available | |
| Continuous detection mode, detection number designation mode, ring buffer mode | ||
| Marker detection function | Marker detection signal | Maximum 4 points |
| Marker detection settings | 6 Settings | |
| Any data monitoring function | 4 points/axis | |
| Inter-drive communication function | Available | |
| SSCNET Communication Cut-Off/Over-Link Function | Available | |
| Data oscilloscope function * 2 | Bit data | 16 channels |
| Word data | 16 channels |
| Project | Specifications | ||
| Servo amplifier connection method | SSCNETⅢ/H | ||
| Total extended distance (max)[m] | 400 | ||
| Distance between stations (max)[m] | 100 | ||
| Peripheral Ports | Via CPU Module (Ethernet) | ||
| Manual pulse operation function | 1 manual pulse generator available | ||
| Synchronous encoder operation function | 4 synchronous encoders can be used through the total of built-in ports, CPU ports and servo amplifier ports) | ||
| General input signal (DI) | Enter points | 4:00 | |
| Input method | Anode Universal/Cathode Universal Common (Optocoupler Isolation) | ||
| Rated input voltage/current | DC24V/approx. 5mA | ||
| Use voltage range | C19.2 ~ 26.4V 0%/-20%, corrugated umbrella 57% in K | ||
| ON Voltage/Current | DC17.5V or more/3.5mA or more | ||
| OFF Voltage/Current | Below DC7.0V/below 1.0mA | ||
| Input Resistance | 6.8k | ||
| Response time | Ims or less (OFF→ON,ON→OFF) | ||
| Fit Wire Size | AWG24 ~ 30(0.2 ~ 0.05mm ²) AWG24(0.2mm ² | ||
| Emergency Stop Input Signal (EMI) | Enter points | 1 point | |
| Input method | Anode Universal/Cathode Universal Common (Optocoupler Isolation) | ||
| Rated input voltage/current | DC24V/approx. 5mA | ||
| Use voltage range | DC19.2 ~ 26.4V (DC24V + 10%/-20%, ripple rate within 5%) | ||
| ON Voltage/Current | DC17.5V or more/3.5mA or more | ||
| OFF Voltage/Current | Below DC7V/below 1.0mA | ||
| Input Resistance | Approximately 6.8kQ | ||
| Response time | Below 4ms (OFF→ON,ON→OFF) | ||
| Fit Wire Size | AWG24.20(02 ~ 005mm ² recommended AWG24(0.2mm ²) | ||
| Input signal form | Phase A/Phase B (4X/2X/1X), PULSE/SIGN | ||
| Manual Pulse Generator Increases Sync Encoder Signal | Interpolated output type (26LS31 equivalent) | Pulse Input Frequency | 1Mpps max (4Mpps max after 4 octaves) |
| Pulse width | μs or more | ||
| Rising/falling edge time | 0.25μs or less | ||
| Bit difference | 0.25μs or more | ||
| Rated input voltage | Below DC5.5V | ||
| High Voltage | DC2.0~5.25V | ||
| Low voltage | DCO~0.8V | ||
| Interpolation voltage | ±0.2V | ||
| Cable length | Maximum 30m | ||
| Open collector type (DC5V) | Pulse Input Frequency | 200kpps max (800kpps max after 4X) | |
| Pulse width | More than 5 μs | ||
| Rising/falling edge time | <. 2μs | ||
| Standing | 2μs or more | ||
| Rated input voltage | Below DC5.5V | ||
| High Voltage | DC3.0~5.25V | ||
| Low voltage | C0~1.0V | ||
| Cable length | Maximum 10m | ||
| Input/Output Occupancy Points | 8 points | ||
| DC24V internal current consumption | 0.25A |
