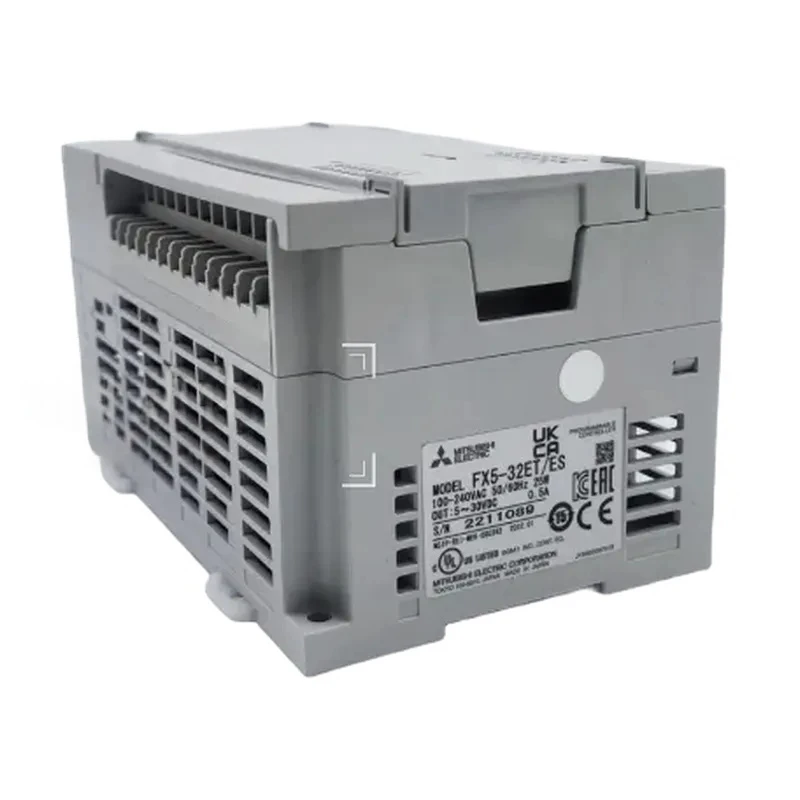

FX5-32ET/ESS Mitsubishi PLC Input/Output Expansion Module

FX5-32ET/ESS is a high-performance PLC (programmable logic controller) input and output expansion module introduced by Mitsubishi Electric, which is suitable for various industrial automation control scenarios. The following will introduce its performance specifications and product features in detail.

Performance Specifications

1. Power Specifications :

• Rated voltage: AC100 ~ 240V

• Allowable voltage range: AC85 ~ 264V

• Rated frequency: 50/60Hz

• Allowable instantaneous outage time: less than 10ms

• Power fuse: 250V 3.15A

• Impulse current: maximum 30A 5ms or less/AC100V, maximum 65A 5ms or less/AC200V

• Power consumption: 25W

• DC24V service power supply capacity: 250mA (input circuit of power supply built-in input and output unit, capacity of service power supply use occasion),310mA (input circuit of power supply built-in input and output unit, capacity of external power supply use occasion)

• DC5V power supply capacity: 965mA

1. Enter specifications :

• Input points: 16 points

• Input connection mode: detachable terminal block (M3 screw)

• Input Type: Source/Drain

• Input signal voltage: DC24V + 20%,-15%

• Input signal current: 4mA/DC24V

• Input impedance: 5.6kΩ

• input sensitive current: above 3.0mA when ON and below 1.5mA when OFF

• Input response time: below 50μs when ON, below 150μs when OFF

• Input signal form: No voltage contact input (NPN/PNP)

• Loop insulation: optocoupler insulation

• Input action: LED lights when input ON

1. Output Specifications :

• Output points: 16 points

• Output connection method: detachable terminal block (M3 screw)

• Output type: transistor drain output

• External power supply: below DC30V, below AC240

• Loop insulation: Mechanical insulation

• Action: LED lights when output is ON

• Open circuit leakage current: 0.1mA/DC30V

• Maximum load: 0.5A/1 point

• Response time: OFF-& gt;ON, ON-& gt;OFF <0.2ms/200mA(DC24V)

• ON voltage: 1.5V or less

1. Other specifications :

• Applicable CPU Unit: FX5U CPU Unit

• Dimensions (WHD):150 *87 *90mm

• Weight: about 0.65kg

Product Features

1. High reliability :

• Made of high-quality components, it has strong anti-interference ability and stability, and can operate stably for a long time in harsh industrial environments.

1. Flexible Extensibility :

• It can be seamlessly connected with FX5U series PLC basic unit to expand the number of input and output points to meet different control requirements. Modular design for easy maintenance and replacement.

1. Quick response :

• The input and output response time is extremely fast, below 50μs when ON and below 150μs when OFF, ensuring the efficiency of real-time control.

1. Wide voltage range :

• The power supply voltage range is wide (AC85 ~ 264V), which is suitable for the power grid environment in different regions of the world and enhances the versatility of the equipment.

1. Easy operation and maintenance :

• Using detachable terminal block design, convenient wiring and maintenance. The input and output status is indicated by LED lights, which is intuitive and clear.

1. Diversified input and output types :

• Support source/drain input and transistor drain output, can adapt to different types of sensors and actuators, widely used in various industrial control occasions.

1. Compact design :

• The module is small in size, with a size of 150 *87 *90mm, which saves installation space and is convenient for layout in the control cabinet.

FX5-32ET/ESS Mitsubishi PLC input and output expansion modules have become an indispensable part of modern industrial automation control systems due to their high performance, flexibility and reliability.
