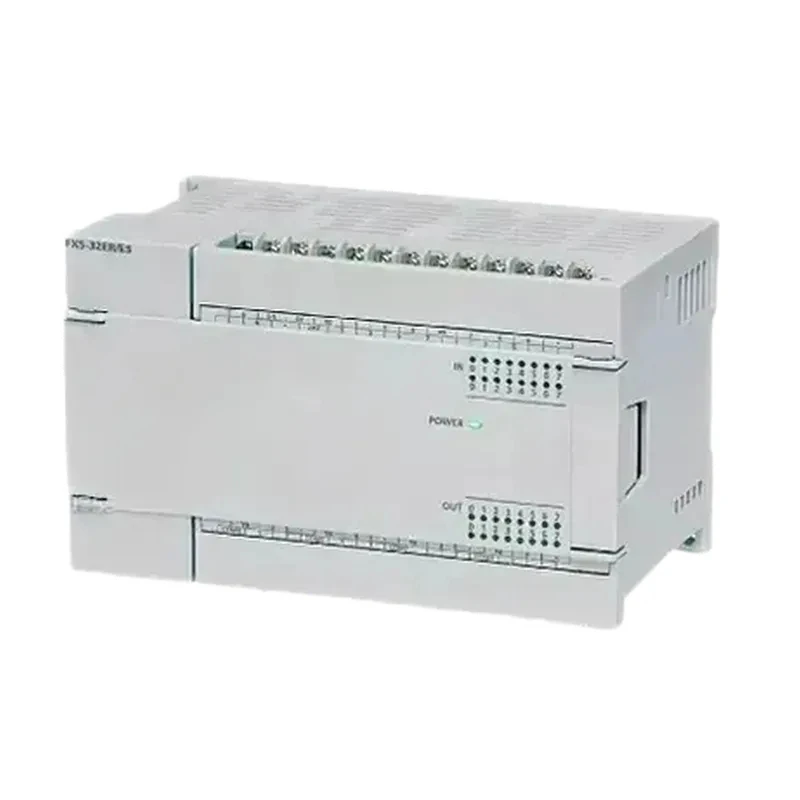

FX5-32ER/ES Mitsubishi PLC Expansion Input/Output Module

FX5-32ER/ES is a powerful PLC (programmable logic controller) extended input and output module launched by Mitsubishi Electric, which is widely used in industrial automation systems. The technical parameters and application fields will be described in detail below.

Technical parameters

1. Power Specifications

   • Rated voltage :AC100 ~ 240V

   • Allowable voltage range :AC85 ~ 264V

   • Rated frequency :50/60Hz

   • Allowable instantaneous outage time : less than 10ms

   • Power fuse :250V 3.15A

   • impulse current : maximum 30A 5ms or less/AC100V, maximum 65A 5ms or less/AC200V

   • Power consumption :25W

   • DC24V service power supply capacity :250mA (input circuit of power supply built-in input and output unit, capacity of service power supply use occasion),310mA (input circuit of power supply built-in input and output unit, capacity of external power supply use occasion)

   • DC5V power supply capacity :965mA

2. Enter specifications

   • Enter points :16 points

   • Input connection method : Removable terminal block (M3 screw)

   • input type : source/drain type

   • Input signal voltage :DC24V + 20%,-15%

   • Input signal current :4mA/DC24V

   • Input impedance :5.6kΩ

   • input sensitive current : above 3.0mA when ON and below 1.5mA when OFF

   • input response time : below 50μs when ON, below 150μs when OFF

   • Input signal form : No voltage contact input (NPN/PNP)

   • Loop insulation : Optocoupler insulation

   • Input action : LED lights when input ON

3. Output Specifications

   • Points :16 points

   • Connection method : Removable terminal block (M3 screw)

   • Type : Relay

   • External power : below DC30V, below AC240

   • Loop insulation : Mechanical insulation

   • Action representation : LED lights when output is ON

   • Maximum load :2A/1 point

   • Minimum load :DC5V 2mA (reference value)

   • Response time :OFF-& gt;ON,ON-& gt;OFF about 10ms

4. Other specifications

   • Applicable CPU Unit :FX5U CPU Unit

   • Dimensions (WHD):1508790mm

   • weight : about 0.65kg

Application field

1. Manufacturing Automation

   • In automated production lines, FX5-32ER/ES can control and monitor the operating status of various equipment, such as conveyor belts, robotic arms, sensors, etc., to achieve efficient and accurate production processes.

   • By expanding the input and output points, more field devices can be connected to improve the flexibility and efficiency of the production line.

2. Packaging machinery

   • Packaging machinery requires high-precision control and real-time feedback. FX5-32ER/ES can meet these needs to ensure the stability and reliability of the packaging process.

   • For example, in pharmaceutical and food packaging, precise control of packaging speed, sealing quality, label printing and other links can be achieved.

3. Printing Machinery

   • Printing machinery requires high-speed and high-precision coordinated control. FX5-32ER/ES can handle complex control logic to ensure printing quality and efficiency.

   • can be applied to the printing press paper transport, printing pressure adjustment, color control and other links.

4. Glass machinery

   • In glass processing equipment, FX5-32ER/ES can realize the automatic control of glass cutting, grinding, cleaning and other processes.

   • Its high reliability and stability ensure the high quality and consistency of glass processing.

5. Construction machinery

   • Construction machinery usually needs to operate in harsh environments. The wide voltage range and strong anti-interference ability of FX5-32ER/ES can adapt to these complex working conditions.

   • For example, in cranes, excavators and other equipment, precise control and real-time monitoring of mechanical actions can be achieved.

6. Building Automation

   • In intelligent building systems, FX5-32ER/ES can be used to control the operation of lighting, air conditioning, elevators and other equipment to achieve energy saving and intelligent management.

   • By expanding the input and output modules, more sensors and actuators can be connected to improve the level of building automation.

FX5-32ER/ES Mitsubishi PLC expansion input and output modules have become an indispensable part of industrial automation systems with their powerful functions, stable performance and wide range of applications.
