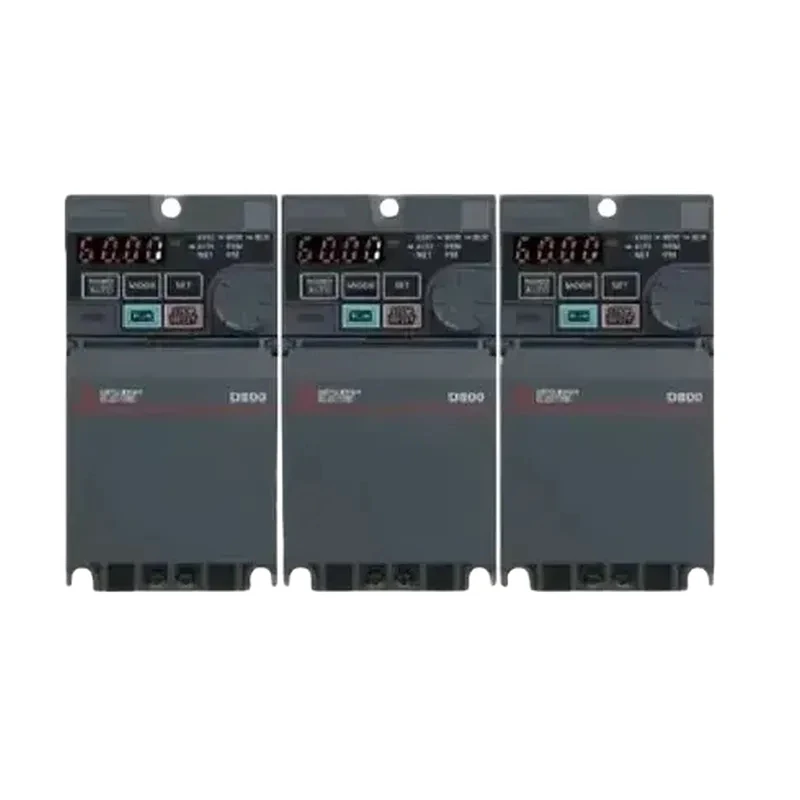

The FR-D840-2.2K-050-60 Mitsubishi inverter replaces the FR-D700 series 2.2KW, providing a comprehensive upgrade.
LEHIY item code: LH-0086
Quick buying check
This page helps you check The FR-D840-2.2K-050-60 Mitsubishi inverter replaces the FR-D700 series 2.2KW, providing a comprehensive upgrade. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
The FR-D840-2.2K-050 is a product of three-phase 400V power supply in Mitsubishi FR-D800 series inverter. The detailed parameters are as follows:
- Model Meaning
- FR-D840: It belongs to the FR-D800 series, suitable for three-phase 400V power supply.
- 2.2K: The adapted motor capacity is 2.2kW(ND rated, I .e. standard load rated).
- 050: the rated current (ND) of the inverter is 5.0A, and it also contains information such as built-in EMC filter (applicable to the second environment) and support for Modbus communication protocol (determined by series rules).
- Basic specifications
- Input power : Three-phase AC 380 - 480V,50/60Hz; AC voltage allowed to fluctuate 323 - 528V 50Hz/60Hz.
- Rated output : Rated capacity (ND)3.8kVA; Rated current (ND)5.0A; Adapted motor power 2.2kW.
- control mode : support Soft-PWM control/high carrier frequency PWM control, V/F control, advanced magnetic flux vector control, PM sensorless vector control.
- output frequency range : induction motor 0.2 - 590Hz (upper limit 400Hz for advanced flux vector control);PM motor 0.2 - 400Hz (not exceeding the maximum frequency of the motor).
- Performance indicators
- overload capacity :ND rated 150% rated current 60s,200% rated current 5S (inverse time characteristic, ambient temperature 50 ℃);SLD rated 110% rated current 60s,120% rated current 3s (inverse time characteristic, ambient temperature 40 ℃).
- starting torque : induction motor is 150/0.5Hz in advanced flux vector control; PM motor is 50% in PM sensorless vector control.
- Speed control accuracy : ± 0.2 (25 ℃ ± 10 ℃) for sensorless vector control.
- braking performance : built-in braking transistor, maximum braking torque (ND standard) 50% (need to cooperate with braking resistor); The braking utilization rate can reach up to 100.
- Features
- motor compatibility : support induction motor and PM motor; PM motors of other companies can be driven by automatic tuning (some need to be manually set).
- built-in function : with PID control, multi-stage speed operation (up to 15 gears), automatic torque compensation, energy-saving operation mode, instantaneous stop and restart, stall prevention and other functions.
- I/O interface :6-point input (2-point high-speed), 3-point relay output, 2-point analog input (1-point voltage/current optional), 1-point analog output (DC0-10V/12bit).
- communication function : built-in RS - 485 interface (support Modbus RTU protocol), optional communication expansion card (such as CC-Link IE Field Basic, Ethernet/IP, etc.).
- security function : built-in STO security function (in line with ISO 13849 - 1 PLd/Cat.3 ), supports automatic restart and fault history record; There is a password function to prevent parameter error correction.
- Environmental Adaptability
- Protection class :IP20 (open structure, to be installed in the control cabinet).
- Operating ambient temperature :-20 ℃ - +60 ℃ (no condensation);ND rated over 50 ℃, SLD rated over 40 ℃ need derating.
- ambient humidity : below 95% RH (no condensation, substrate coating (IEC60721-3-3: 1994 3C2/3S2 suitable)); Below 90% RH (no condensation, no coating).
- Storage temperature :-40 ℃ - +70 ℃.
- Altitude · Vibration : Below 3000m, below 5.9m/s², 10 to 55Hz(X, Y, Z directions).
- overall dimensions and others : about 108mm (w) × 128mm (h) × 155.5mm (d) (the overall dimensions of different data may vary slightly, depending on the actual product); The weight is about 1.4kg (including the weight of packaging, etc. will be increased).
Plain language sourcing guide for The FR-D840-2.2K-050-60 Mitsubishi inverter replaces the FR-D700 series 2.2KW, providing a comprehensive upgrade.
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Mitsubishi | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
The FR-D840-2.2K-050-60 Mitsubishi inverter replaces the FR-D700 series 2.2KW, providing a comprehensive upgrade.
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
The FR-D840-2.2K-050-60 Mitsubishi inverter replaces the FR-D700 series 2.2KW, providing a comprehensive upgrade. verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
