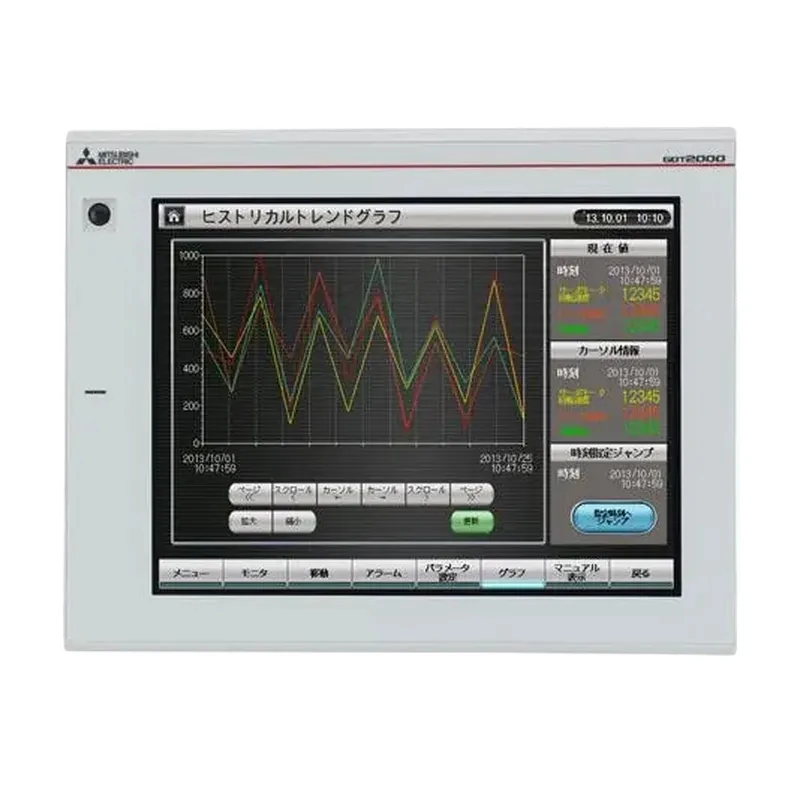

GT2712-STWA Mitsubishi Touchscreen AC220V 12.1-inch Original Human-Machine Interface
LEHIY item code: LH-0024
Quick buying check
This page helps you check GT2712-STWA Mitsubishi Touchscreen AC220V 12.1-inch Original Human-Machine Interface before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
# Excellent choice: GT2712-STWA Japan's Mitsubishi touch screen, leading the new trend of industrial interaction In the wave of industrial automation, the importance of human-computer interaction interface has become increasingly prominent. GT2712-STWA Japan's Mitsubishi touch screen AC220V AC 12.1 inch original man-machine interface, with its excellent performance and excellent design, has become a right-hand man in the industrial field to improve efficiency and optimize operation. **12.1-inch HD large screen, clearly showing every detail** The GT2712-STWA is equipped with a 12.1-inch large screen, providing a wide field of view and clear image display. Whether it is a complex process flow chart, a detailed data table or a precise operation button, it can be presented delicately and realistically on the screen, allowing the operator to be clear at a glance and reducing the possibility of misoperation. **AC220V AC power supply, stable and reliable to adapt to the industrial environment** AC220V AC power supply mode is adopted to ensure stable operation in the industrial environment. Whether it is voltage fluctuations or complex grid conditions, GT2712-STWA can maintain good working conditions, provide continuous and reliable support for your production process, and reduce downtime and failure caused by power problems. **Original quality, excellent performance guarantee** As the original product of Mitsubishi, GT2712-STWA uphold the strict manufacturing process and high quality standards of Mitsubishi. From the selection of parts to the overall assembly and debugging, every link has undergone strict quality control to ensure the stability, durability and accuracy of the product. **Sensitive touch response, smooth operation experience** Its touch screen has a high degree of sensitivity, can quickly respond to the operator's touch instructions, to achieve smooth operation. Whether it is a tap, swipe or long press, it can be accurately captured, making your operation as natural and convenient as on a smart phone. **Powerful communication function, seamless docking industrial system** With strong communication ability, it can realize seamless docking with various industrial control systems. Whether it is PLC, DCS or other automation equipment, GT2712-STWA can establish a stable and efficient communication connection with it, realize the rapid transmission of data and real-time interaction, and improve the synergy and intelligence level of the entire industrial system. **Rugged and durable, adaptable to harsh industrial environments** The shell is made of sturdy materials and has good protective performance, which can effectively resist the influence of harsh industrial environmental factors such as dust, water vapor, vibration and shock. Even in high temperature, high humidity or dusty environment, it can operate stably for a long time, reducing maintenance costs and equipment failure rate. **Easy to program and maintain, save time and cost** Equipped with simple and easy-to-use programming software, you can easily customize the interface layout, function buttons and operation flow. At the same time, its maintenance is also very convenient, troubleshooting and parts replacement can be completed quickly, reducing equipment downtime and improving production efficiency. **Rich function expansion to meet diversified needs** Support a variety of function expansion modules, such as Ethernet interface, USB interface, memory card slot, etc., which can be flexibly configured according to actual needs to meet the personalized requirements of different industrial application scenarios, Provide more possibilities for your industrial production. In short, GT2712-STWA Japan's Mitsubishi touch screen AC220V AC 12.1-inch original man-machine interface, with its excellent display effect, stable performance, sensitive operation, strong communication capabilities and durable quality, it has become a rare and excellent product in the field of industrial automation. Choosing GT2712-STWA is to choose efficient, reliable and intelligent industrial interaction solutions to bring new breakthroughs and improvements to your industrial production!
GT2712-STWA, Mitsubishi GT2712-STWA, Mitsubishi touch screen GT2712-STWA,GT2712-STWA agents, Mitsubishi GT2712-STWA stock, GT2712-STWA technology, GT2712-STWA fault analysis, GT2712-STWA instructions, GT2712-STWA parameters, GT2712-STWA dimensions, GT2712-STWA design software, GT2712-STWA programming software
| Performance Specifications | ||
| Project | Specifications | |
| GT2712-STWA | ||
| Display * 1*2 | Display type | TFT Color LCD |
| Picture size | 12.1 inches | |
| Resolution | SVGA:800 × 600 points | |
| Display size | 246(W)×184.5(H)mm | |
| Number of characters displayed | for 16 dot matrix standard font: 50 words x 37 lines (for full width 12 dot matrix standard font: 66 words x 50 lines (full width) | |
| Display color | 65536 color | |
| Brightness adjustment | Level 32 | |
| Backlight | LED (not replaceable) | |
| Backlight life * 4 | About 60000 hours (the time when the ambient temperature is 25 ℃ and the display brightness is 50%) | |
| Touch Panel * 3*11 | Mode | Analog resistive film mode |
| Key size | Minimum 2 × 2 dots * 8 (per key) | |
| Press simultaneously | Maximum 2 points | |
| Lifetime | More than 1 million times (operating force below 0.98N) | |
| Panel Color | White | |
| Body Sensor | Detection distance | lm |
| Detected temperature | The temperature difference between human body temperature and ambient temperature is above 4°C | |
| User memory | User memory capacity | Memory for storage (ROM)* 12:57MB Memory for operation (RAM):128MB |
| Lifetime (number of writes) | 100000 times | |
| Internal Clock Accuracy | ± 90 sec/month (ambient temperature 25 ℃) | |
| GT11-50BAT type lithium battery | ||
| Battery | Backup objects | SRAM data, clock data, system status log data |
| Lifetime | Approximately 5 years (ambient temperature 25 ℃) | |
| Built-in interface | RS-232 | 1ch transmission speed: 115200/57600/38400/19200/9600/4800bps interface shape: D-sub 9-pin (male) |
| RS-422/485 | 1ch transmission speed: 115200/57600/38400/19200/9600/4800bps interface shape: D-sub 9-pin (female) | |
| Ethernet | lch data transfer mode: 100BASE-TX/10BASE-T interface shape: RJ-45 (module plug) | |
| USB(host) | lch (back) | |
| Maximum transfer speed: High-Speed 480Mbps Interface shape: USB-A | ||
| USB(device) | lch (back) | |
| Maximum transfer speed: High-Speed 480Mbps Interface shape: USBMini-B | ||
| SD memory card * 12 | lch supports SDHC (up to 32GB) | |
| Extended interface * 7 | For installing communication module/option module | |
| Extended auxiliary interface | For installing option modules | |
| Side interface | For installing the communication module | |
| Buzzer output | Single tone (interval, length adjustable) | |
| POWER LED | Emitting color: 2 colors (blue, orange) | |
| Protective structure * 5 | Front: I P67F * 6*9 In cabinet: IP2X | |
| Safety Standard/Electric Wave Method (October 2017) | CE, ATEX * 10, UL, cUL, ClassI, Division 2, EAC, KC, KCs * 10 | |
| Dimensions | 316(W)×246(H)×52(D)mm | |
| Panel Opening Dimensions | 302(W)×228(H)mm | |
| Weight (excluding mounting accessories) | 2.4kg | |
| Support Packages | GT Works3 Version1.180N and above |
Plain language sourcing guide for GT2712-STWA Mitsubishi Touchscreen AC220V 12.1-inch Original Human-Machine Interface
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
