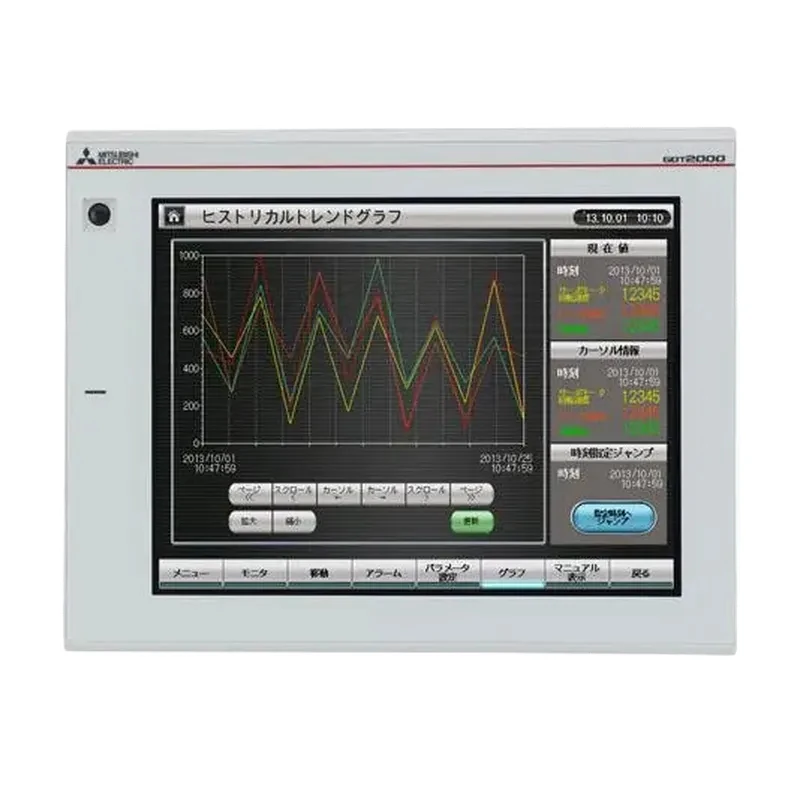

GT2712-STWD Mitsubishi 12.1-inch touchscreen with DC 24V power supply, original Japanese HMI.
LEHIY item code: LH-0021
Quick buying check
This page helps you check GT2712-STWD Mitsubishi 12.1-inch touchscreen with DC 24V power supply, original Japanese HMI. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
# [GT2712-STWD Mitsubishi touch screen 12.1 inch DC24V DC power supply Japan original man-machine interface]-excellent interactive experience, innovative control choice in the field of industrial automation, the performance and quality of man-machine interface directly affect the production efficiency and operation experience. [GT2712-STWD Mitsubishi touch screen 12.1 inch DC24V DC power supply Japan original man-machine interface] with its excellent characteristics, has become the first choice of many enterprises. **1. High-definition display, visual feast** 12.1-inch large screen design, to provide you with a wide field of vision and clear image display. The high-resolution screen can present a variety of data, charts and images in a delicate manner, whether it is a complex process flow chart or fine equipment parameters, can be seen at a glance. At the same time, excellent color reproduction and contrast ensure that a clear and comfortable visual experience can be provided under various light conditions, reducing visual fatigue and improving work efficiency. **2. DC power supply, stable and reliable** DC24V DC power supply mode is adopted, which can not only provide stable power input, ensure the normal operation of the touch screen, but also effectively reduce energy consumption and adapt to the power demand of various industrial environments. Its stable power supply performance reduces the risk of failure and data loss caused by power fluctuations, and provides a reliable guarantee for your production process. **3. Japan original, quality assurance** from Japan's original manufacturing process, adhering to the Mitsubishi has always been rigorous and exquisite. From the selection of raw materials to the monitoring of the production process, every link has undergone strict quality testing to ensure that the products meet excellent quality standards. This means you get a durable, reliable and stable human-machine interface that can operate in harsh industrial environments for long periods of time, reducing maintenance costs and downtime. **4. Sensitive touch, fast response** With high sensitivity touch function, you can quickly respond to your operation instructions with just one click. Whether it is sliding, clicking or zooming, you can accurately perceive your actions and realize smooth human-computer interaction. This fast response feature greatly improves operational efficiency and allows you to complete various tasks in the shortest possible time. **5. Powerful communication capabilities** Supports multiple communication protocols and can seamlessly connect with various industrial equipment and control systems. Whether it is PLC, frequency converter or sensor, it can easily realize data interaction and sharing, and build an efficient automation control network. At the same time, its good compatibility makes it unnecessary to worry about compatibility issues when upgrading and expanding the system, providing greater flexibility for your future development. **6. Rugged and durable, adaptable to harsh environments** Adopt a rugged shell design, with dust, water and vibration resistance, able to work stably in harsh industrial environments such as high temperature, high humidity, and dust. Its durable characteristics can effectively resist external interference and damage, extend service life, and reduce equipment replacement costs. **7. Easy to program and maintain** Equipped with a friendly programming interface and rich development tools, even for users without professional programming experience, they can easily get started with interface design and function customization. At the same time, its perfect fault diagnosis and maintenance functions can quickly locate and solve problems, reduce equipment downtime, and improve production efficiency. **8. Data security and protection** Emphasis on data security and protection, the use of advanced encryption technology and rights management functions to ensure that your production data and confidential information is not leaked and tampered. Only authorized personnel can access and manipulate critical data, providing reliable information security for your business. [GT2712-STWD Mitsubishi touch screen 12.1 inch DC24V DC power supply Japan original man-machine interface] with its excellent performance, reliable quality and excellent user experience, has become an indispensable part of the field of industrial automation. Whether it is to improve production efficiency, optimize the operation process or ensure the stable operation of equipment, it will be your ideal choice.
GT2712-STWD, Mitsubishi touch screen GT2712-STWD, Mitsubishi GT2712-STWD,GT2712-STWD size, GT2712-STWD parameters, GT2712-STWD agents, GT2712-STWD software, GT2712-STWD maintenance, GT2712-STWD procedures, GT2712-STWD troubleshooting
| Performance Specifications | ||
| Project | Specifications | |
| GT2712-STWD | ||
| Display * 1*2 | Display type | TFT Color LCD |
| Picture size | 12.1 inches | |
| Resolution | SVGA:800 × 600 points | |
| Display size | 246(W)×184.5(H)mm | |
| Number of characters displayed | for 16 dot matrix standard font: 50 words x 37 lines (for full width 12 dot matrix standard font: 66 words x 50 lines (full width) | |
| Display color | 65536 color | |
| Brightness adjustment | Level 32 | |
| Backlight | LED (not replaceable) | |
| Backlight life * 4 | About 60000 hours (the time when the ambient temperature is 25 ℃ and the display brightness is 50%) | |
| Touch Panel * 3*11 | Mode | Analog resistive film mode |
| Key size | Minimum 2 × 2 dots * 8 (per key) | |
| Press simultaneously | Maximum 2 points | |
| Lifetime | More than 1 million times (operating force below 0.98N) | |
| Panel Color | White | |
| Body Sensor | Detection distance | lm |
| Detected temperature | The temperature difference between human body temperature and ambient temperature is above 4°C | |
| User memory | User memory capacity | Memory for storage (ROM)* 12:57MB Memory for operation (RAM):128MB |
| Lifetime (number of writes) | 100000 times | |
| Internal Clock Accuracy | ± 90 sec/month (ambient temperature 25 ℃) | |
| GT11-50BAT type lithium battery | ||
| Battery | Backup objects | SRAM data, clock data, system status log data |
| Lifetime | Approximately 5 years (ambient temperature 25 ℃) | |
| Built-in interface | RS-232 | 1ch transmission speed: 115200/57600/38400/19200/9600/4800bps interface shape: D-sub 9-pin (male) |
| RS-422/485 | 1ch transmission speed: 115200/57600/38400/19200/9600/4800bps interface shape: D-sub 9-pin (female) | |
| Ethernet | lch data transfer mode: 100BASE-TX/10BASE-T interface shape: RJ-45 (module plug) | |
| USB(host) | lch (back) | |
| Maximum transfer speed: High-Speed 480Mbps Interface shape: USB-A | ||
| USB(device) | lch (back) | |
| Maximum transfer speed: High-Speed 480Mbps Interface shape: USBMini-B | ||
| SD memory card * 12 | lch supports SDHC (up to 32GB) | |
| Extended interface * 7 | For installing communication module/option module | |
| Extended auxiliary interface | For installing option modules | |
| Side interface | For installing the communication module | |
| Buzzer output | Single tone (interval, length adjustable) | |
| POWER LED | Emitting color: 2 colors (blue, orange) | |
| Protective structure * 5 | Front: I P67F * 6*9 In cabinet: IP2X | |
| Safety Standard/Electric Wave Method (October 2017) | CE, ATEX * 10, UL, cUL, ClassI, Division 2, EAC, KC, KCs * 10 | |
| Dimensions | 316(W)×246(H)×52(D)mm | |
| Panel Opening Dimensions | 302(W)×228(H)mm | |
| Weight (excluding mounting accessories) | 2.4kg | |
| Support Packages | GT Works3 Version1.180N and above |
Plain language sourcing guide for GT2712-STWD Mitsubishi 12.1-inch touchscreen with DC 24V power supply, original Japanese HMI.
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
