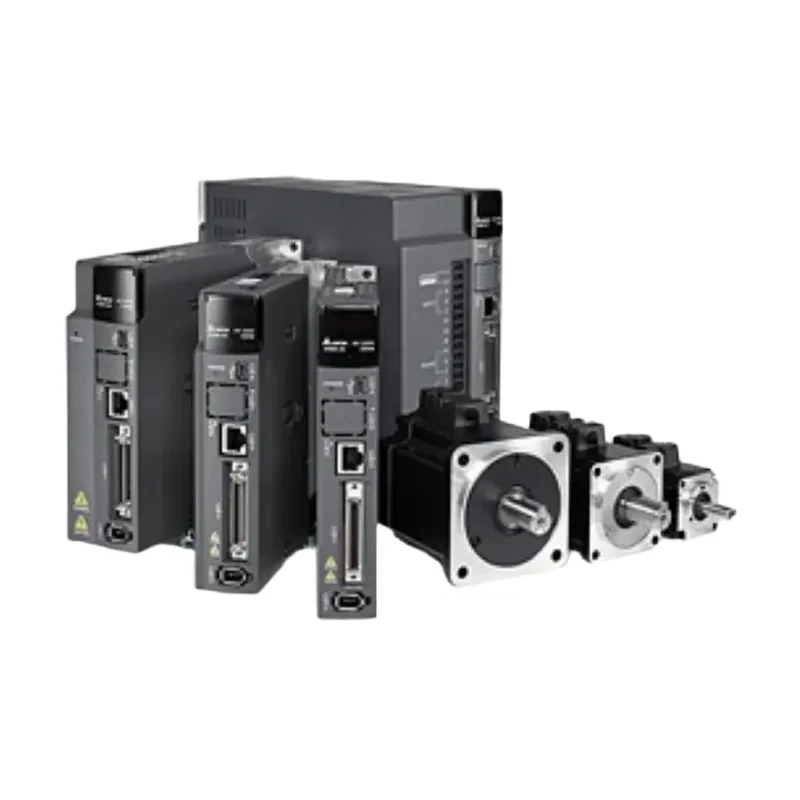

Delta ASDA-A3 AC servo system

product features

3.1kHz speed response bandwidth A3 response bandwidth increased by 3 times, command following more real-time Significantly shorten the position arrival setting time and optimize the equipment capacity 24-bit high resolution absolute encoder single ring resolution 16,777,216 pulse wave, more accurate positioning Low-speed processing application is more stable, effectively improving the processing surface finish Absolute encoder, no loss of motor position when power is cut off The advanced motion control function has built-in more flexible motion control, added value and upgrade of functions 99 segments of motion stroke can be planned Intuitive icon interface operation Four operations/comparisons can be performed Path overlap/path jump Origin reset mode Electronic cam Position/sp; Position/sp; strong self-adjustment ability automatic gain adjustment function Built-in expert-level automatic adjustment function, reduced servo use threshold, optimized equipment performance Guided and conversational automatic adjustment function, servo gain adjustment can be completed as long as simple setting in sequence Support panel keys and software automatic adjustment function excellent vibration suppression ability high frequency vibration filtering The time of automatic search for resonance frequency points is shortened to reduce the impact on the mechanism At the same time, 5 groups of high frequency resonance are suppressed, and the filter width can be flexibly adjusted to reduce the broadband of the affected band low frequency swing suppression For highly flexible machines, effectively suppress mechanism oscillation, improve operation efficiency Active calculus suppression rule can avoid terminal machine shaking and increase operation speed Mechanism diagnosis function measuring mechanism elasticity coefficient and damping coefficient The assembly of large quantities of machines can be used to check their consistency Through comparison at different time points, the aging and variation degree of the mechanism can be understood Multi-axis common DC bus design, keep DC bus voltage stable, recycle energy, and save energy for mechanical equipment Multiple drivers use common DC bus function to save the number of braking resistors and reduce costs The compact appearance design reduces the drive face width and motor length by about 20% (compared with A2) Save equipment installation space and weight, realize equipment miniaturization Intuitive software interface tree structure function menu, use the easy-to-use icon-based parameter setting interface to reduce the probability of setting errors, intuition and time-saving

Applications

Machine tools, precision engraving machines, gantry processing, TFT panel cutting, IC packaging machines, electronic assembly or testing equipment, mechanical arms, industrial robots, packaging equipment, labeling equipment, semiconductor equipment, Textile equipment

Plain language sourcing guide for Delta ASDA-A3 AC servo system

Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.

Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.

Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.

If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.

Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.

Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.

Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.

Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.

For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.

For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.

For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
