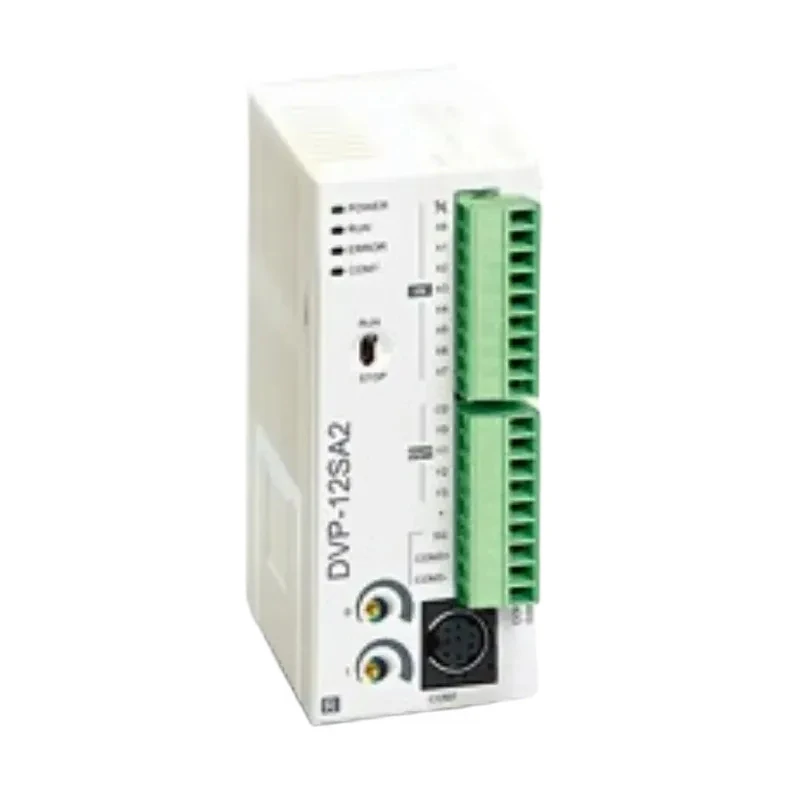

Delta DVP-SA2 series PLC
LEHIY item code: LH-DELTA-0006
Quick buying check
This page helps you check Delta DVP-SA2 series PLC before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Introduction
Product Features
- 4 points high-speed pulse output: 2 points 100kHz,2 points 10kHz
- 8-point high-speed pulse input: 2: 100kHz,6: 10kHz,1 group A/B phase 50kHz
- Support biaxial synchronization (linear interpolation and circular interpolation)
- Program capacity: 16k steps/Data register: 10k words
- higher than PLC processing speed at the same level, LD:0.54 μs,MOV:3.4μs
- Built-in 1 set of RS-232 and 2 sets of RS-485 communication ports (master/slave station), compatible with standard MODBUS ASCII/RTU communication protocol, support PLC Link function
- provides battery free perpetual calendar function for up to half a month
- Support DVP-S series left and right modules, providing users with multiple module selectivity
Application field
Printing machine; Dye machine; Container filling machine (formula application); Production line workstation monitoring (PLC Link)Technical specifications
S-series hosts| Name | Electrical pre-supply | Output Method | Input | Output | Model |
| SV2 High Functionality Host | 24VDC supply | Relays | 16 | 12 | DVP28SV11R2 |
| 24VDC supply | Transistors | 16 | 12 | DVP28SV11T2 | |
| 24VDC source | Transistor (PNP) | 16 | 12 | DVP28SV11S2 | |
| SV High Functionality Host | 24VDC supply | Relays | 16 | 12 | DVP28SV11R |
| 24VDC supply | Transistors | 16 | 12 | DVP28SV11T | |
| Name | Power Supply | Output Method | Input | Output | Model |
| SS2 Standard Host | 24VDC supply | Relays | 8 | 6 | DVP14SS211R |
| 24VDC supply | Transistors | 8 | 6 | DVP14S$211T | |
| 24VDC supply | Transistor (PNP) | 8 | 4 | DVP12SS211S | |
| SA2 Advanced Host | 24VDC supply | Relays | 8 | 4 | DVP12SA211R |
| 24VDC supply | Transistors | 8 | 4 | DVP12SA211T | |
| SX2 Analog Host | 24VDC supply | Relays | 8(4Al) | 6(2AO) | DVP20SX211R |
| 24VDC supply | Transistor (NPN) | 8(4Al) | 6(2AO) | DVP20SX211T | |
| 24VDC supply | Transistor (PNP) | 8(4Al) | 6(2A0) | DVP20SX2118 | |
| Name | Power Supply | Output Method | Input | Output | Model |
| SE Networked Hosts | 24VDC supply | Relays | 8 | 4 | DVP12SE11R |
| 24VDC power | Transistors | 8 | 4 | DVP12SE11T | |
| Name | Power Supply | Output Method | Input | Output | Model |
| SX Analog Host | 24VDC supply | Relays | 4(2Al) | 2(2AO) | DVP10SX11R |
| 24VDC supply | Transistors | 4(2Al) | 2(2AO) | DVP10SX11T |
| Name | Output Method | Input | Output | Model |
| Digital Module | Relays | 6 | DVP06SN11R | |
| Relays | 8 | DVP08SN11R | ||
| Transistors | 8 | DVP08SN11T | ||
| Transistors | 16 | DVP16SN11T | ||
| Relays | 4 | 4 | DVP08SP11R | |
| Transistors | 4 | 4 | DVP08SP11T | |
| 8 | DVP08SM11N | |||
| 8 | DVP08SM10N | |||
| Transistor (PNP) | 8 | DVP08SN11TS | ||
| Digital Switches | 8 | DVP08ST11N | ||
| Relays | 8 | 8 | DVP16SP11R | |
| Transistor (PNP) | 4 | 4 | DVP08SP11TS | |
| Transistor (NPN) | 8 | 8 | DVP16SP11T | |
| Transistor (PNP) | 8 | 8 | DVP16SP11TS | |
| Transistor (PNP) | 16 | DVP16SN11TS | ||
| 16 | DVP16SM11N | |||
| Transistors, Horn | ■ | 32 | DVP32SN11TN | |
| Horn | 32 | DVP32SM11N | ||
| Analog I/O Module | ■ 4-point analog input voltage (-10V-+10V)/current (-20mA ~ + 20mA)* input resolution 14 bits ■ built-in RS-485 interface | DVP04AD-S | ||
| ■ 4-point analog output voltage (0V-+10V)/current (0mA-+ 20mA)* ■ decomposition rate 12 bits ■ built-in RS-485 interface | DVP04DA-S | |||
| ■ 2-point analog output voltage (0V-+10V)/current (0mA ~ + 20mA)* ■ resolution 12 bits ■ built-in RS-485 interface | DVP02DA-S | |||
| ■ 6-point analog input voltage (-10V-+10V)/current (-20mA-+ 20mA)* + ■ Input resolution 14-bit built-in RS-485 interface | DVP06AD-S | |||
| ■ 6-point analog hybrid I/O module ■ 4-point analog voltage (-10V ~ +10V)/current (-20mA-+ 20mA) ■ 2-point analog voltage (0V-+10V)/current (0mA-+ 20mA) ■ resolution 12-bit ■ built-in RS-485 interface | DVP06XA-S |
| Name | Description | Model |
| Left High Speed Analog I/O Module | ■ 4 sets of analog inputs * ■ signal range: 1-5V,0-5V,-5-5V,0-10V,-10-10V, & nbsp,-20-20mA ■ decomposition rate 16-bit risk provides single channel on/off uncertainty to improve overall conversion efficiency ■ conversion time: 250 μs/point ■ disconnection warning (1-5V,4 ~ 20mA) | DVP04AD-SL |
| ■ 4 sets of analog outputs * ■ signal range: 0~10V,-10~10V,4 ~ 20mA,0 ~ 20mA ■ resolution 16 bits provide single channel on/off indeterminate ■ conversion time: 250 μs/point | DVP04DA-SL | |
| Left High Speed Load cell Weighing Module | ■ 2 sets of Load cell sample weight modules * ■ resolution 20 bits ■ 4-wire/6-wire load celH sensor ■ measurement range: 0 ~ 6mV // V | DVP02L.C-SL |
| ■ 1 set of Load coll switch module ■ resolution 20 bits ■ 4-wire/6-wire load celH sensor ■ measurement range: 0-6mV // V | DVP01LC-SL | |
| Temperature Measurement Module | ■ 4-point platinum thermal resistance (PT100) temperature sensor input */DT1000 ■ resolution 0.1 ℃ ■ built-in RS-485 interface | DVP04PT-S |
| ■ 4-point thermocouple (J, K, R.S, T type) temperature sensor input * ■ resolution 0.1 ℃ ■ built-in RS-485 interface | DVP04TC-S | |
| Positioning Module | Single Axis 200kHz Servo Positioning Control Expansion Module | DVP01PU-S |
| Communication Module | DeviceNet slave module | DVPDT01-S |
| PROFIBUS DP slave module | DVPPF01-S | |
| Left High Speed Communication Module | Ethernet module, 10/100Mbps | DVPEN01-SL |
| DovicoNot master module, 500kbps | DVPDNET-SL | |
| CANopen master module, 1Mbps | DVPCOPMSL | |
| PROFIBUS DP slave module, 12Mbps | DVPPF02-SL | |
| RS-485/RS-422 communication module, 460kbps | DVPSCM12-S | |
| BACnet MS/TP slave module, 460kbps | DVPSCM52-S | |
| Remote I/O Modules | RS-485 I/O Modules for Connection to S Series/O Modules | RTU-485 |
| Ethernet remote I/O modules to interface with S-Series J/0 modules | RTU-EN01 | |
| DevicoNot remote/0 module to connect with S Series 1/0 module | RTU-DNET | |
| PROFIBUS remote l/0 modules to connect with S-Series/0 modules | RTU-PD01 |
Plain language sourcing guide for Delta DVP-SA2 series PLC
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
