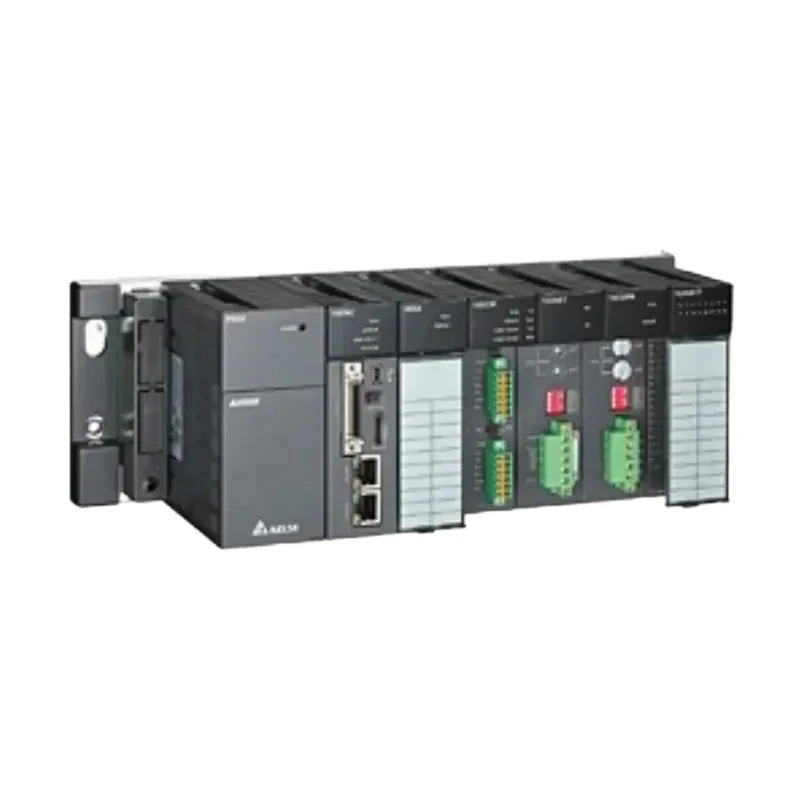

Delta AH series motion control CPU

Product Introduction

Product Features

Standard Motion Control System

• Provide motion control interfaces such as EtherCAT, DMCNET and Pulse-train

• The motion control module can operate independently, and users can edit and download the program.

• All motion control modules support standard system architecture

• All motion control modules can be installed on the main backplane and extension backplane at the local end

• Motion control function:

Performance - Pulse train: 1 MHz Output & nbsp: 12-axis synchronization time is 1 ms - EtherCAT:8/16/32-axis synchronization time is 0.5/1/2 ms

• Support UD / PD / AB / 4AB input mode

• support hand wheel input/E-Cam / G-code / 2~6 axis linear tween/2 axis arc tween/3 axis spiral tween

Note: The EtherCAT motion control module (AHxxEMC-5A) does not support installation on the I/O slot.

• Provide motion control interfaces such as EtherCAT, DMCNET and Pulse-train

• The AHxxEMC-5A can be installed on the CPU slot of a specific motion control backplane. In addition to motion control, it can also replace the CPU for general CPU work

• The simplified motion control system does not support the expansion of the backplane

• The motion control module can be installed on the I/O slot of the backplane as well

• Motion control function:

Performance: - Pulse train: up to 1MHz output - & nbsp: 12-axis minimum synchronization time is 1 ms - EtherCAT:8/16/32-axis minimum synchronization time is 0.5/1/2 ms

• Support UD / PD / AB / 4AB input mode

• support hand wheel input/E-Cam / G-code / 2~6 axis linear tween/2 axis arc tween/3 axis spiral tween

Note: The EtherCAT motion control module (AHxxEMC-5A) does not support installation on the I/O slot for the time being Integrated motion control editing Integrated motion control editing: ISPSoft V3 integrates logic programming and motion programming on the same set of software, and provides PLCopen that meet international standards and specifications.®and the rich functional blocks provided by Delta.

Application field

Equipment for food packaging, electronic manufacturing, printing and other industries

Technical Specifications

1. EtherCAT Communication Motion Controller (100 Mbps)
2. the minimum synchronization time of 8/16/32 axis is 0.5/1/2 ms
3. Support 2~6 axis linear tween, 2 axis arc tween, 3 axis spiral tween
4. Built-in Ethernet communication port
5. Support Micro SD card
6. Support EtherNet/IP
7. - Adapter mode
8. -Support I/O online and explicit messages
9. -Number of connections: TCP = 16 ; CIP = 32
10.      - RPI:2 ~1,000 ms
11.      - PPS:3,200
12. - 250 words/Online
13. CPU processing speed: LD instruction @ 0.08 μs
14. Program capacity: 256 k steps
15. Data cache: D = 64 k words / L = 64 k words
16. Support UD / PD / AB / 4AB input mode
17. Built-in Mini USB programming communication port
18. Users can independently write motion control programs and download and execute them.
19. Support G-code
20. Support hot plug
21. With diagnostic function
22. Module status LED display
23. Can be installed on the CPU slot of the motion-controlled main backplane and operate as a host
24. The maximum number of function blocks supported is 4096
