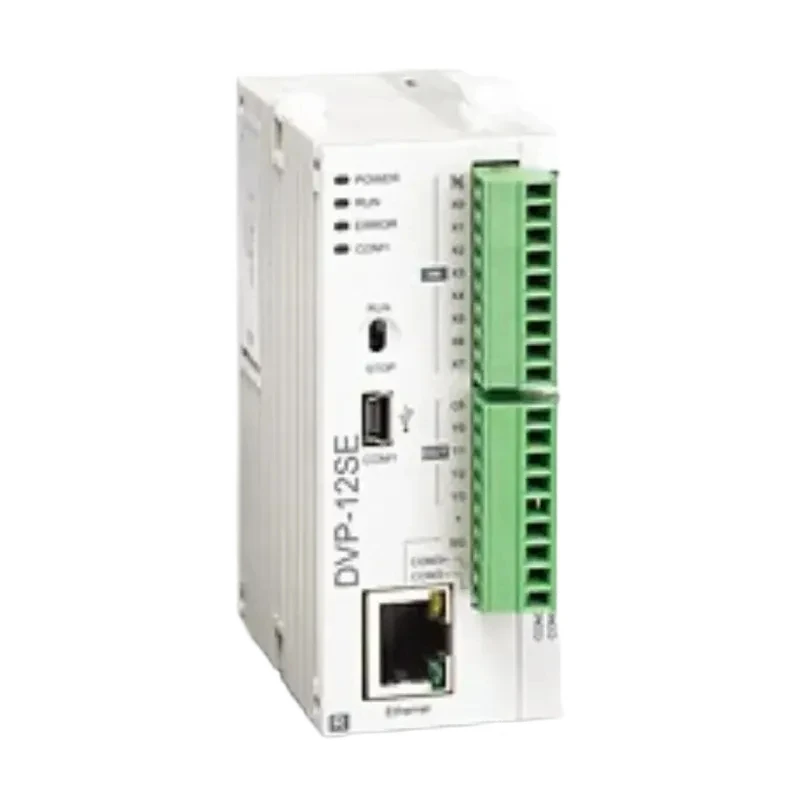

Delta DVP-SE series
LEHIY item code: LH-DELTA-0026
Quick buying check
This page helps you check Delta DVP-SE series before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Introduction
Product Features
Product Features Complete Communication Host: Host Points 8DI/4DO, Built-in Mini USB,Ethernet,2 Groups of RS-485 Communication Ports- Program capacity: 16k steps/Data register: 12k words
- higher than the same PLC processing speed, LD:0.64 μs,MOV:2 μs
- The built-in Ethernet supports MODBUS TCP and Ethernet/IP functions, and supports the two major communication formats in the market.
- IP Filter function provides the first firewall to effectively isolate threats on the network
- It also provides Remote I/O function, which is suitable for applications that require distributed control, such as building automation systems.
Technical Specifications
S-Series Hosts| Name | Electrical pre-supply | Shaft Out Mode | Input | Output | Model |
| SV2 High Functionality Host | 24VDC power | Relay | 16 | 12 | DVP28SV11R2 |
| 24VDC power | Transistors | 16 | 12 | DVP28SV11T2 | |
| 24VDC power | Transistor (PNP) | 16 | 12 | DVP288V11R2 | |
| SV High Functionality Host | 24VDC power | Relay | 16 | 12 | DVP28sV11R |
| 24VDC power | Transistors | 16 | 12 | DVP28SV11T | |
| Name | Power Supply | Output mode | Input | Output | Model |
| SS2 Standard Host | 24VDC power | Relay | 8 | 6 | DVP1488211R |
| 24VDC power | Transistors | 8 | 6 | DVP1488211T | |
| 24VDC power | Transistor (PNP) | 8 | 4 | DVP1288211S | |
| SA2 Advanced Host | 24VDC power | Relay | 8 | 4 | DVP12SA211R |
| 24VDC power | Transistors | 8 | 4 | DVP12SA211T | |
| SX2 Analog Host | 24VDC power | Relay | 8(4Al) | 6(2AO) | DVP20SX211R |
| 24VDC power | Transistor (NPN) | 8(4Al) | 6(2AO) | DVP208X211T | |
| 24VDC power | Transistor (PNP | 8(4Al) | 6(2AO) | DVP205X211S | |
| Name | Power Supply | Output mode | Input | Output | Model |
| SE Networked Hosts | 24VDC power | Relay | 8 | 4 | DVP128E11R |
| 24VDC power | Transistors | 8 | 4 | DVP12SE11T | |
| Name | Power Supply | Output mode | Input | Output | Model |
| S X Analog Host | 24VDC power | Relay | 4(2AD) | 2(2AO) | 0VP108X11R |
| 24VDC power | Transistors | 4(2Al) | 2(2AO) | DVP10SX11T |
| Name | Output Mode | Input | Output | Model |
| Digital Module | Relays | 6 | DVP06SN11R | |
| Relays | One | 8 | DVP085N11R | |
| Transistors | 8 | DVP08SN11T | ||
| Transistors | 16 | DVP16SN14T | ||
| Relays | 4 | 4 | DVP08SP11R | |
| Transistors | 4 | 4 | DVP08sP11T | |
| 8 | DVP08SM11N | |||
| 8 | DVP08SM10N | |||
| Transistor (PNP) | 8 | DVP08SN11TS | ||
| Digital Switches | 8 | DVP08ST11N | ||
| Relays | 8 | 8 | DVP16SP11R | |
| Transistor (PNP | 4 | 4 | DVP08SP11TS | |
| Transistor (NPN) | 8 | 8 | DVP16SP11T | |
| Transistor (PNP) | 8 | 8 | DVP16SP11TS | |
| Transistor (PNP | 16 | DVP16SN11TS | ||
| 16 | One | DVP168M11N | ||
| Transistors, Horn | 32 | DVP32SN11TN | ||
| Horn | 32 | DVP32SM11N | ||
| Analog I/O Module | ■ 4-point analog input voltage (-10V ~ +10V)/current (-20mA ~ + 20mA)* 4-axis resolution 14-bit built-in R8-485 interface | DVP04AD-S | ||
| ■ 4-point analog output voltage (0V-+10V/current (0mA ~ + 20mA)* ■ resolution 12 bits ■ built-in RS-485 interface | DVP04DA-S | |||
| ■ 2-point analog output voltage (0V ~ +10V)/current (0mA-+ 20mA) -12-bit resolution ■ Built-in RS-485 interface | DVP02DA-S | |||
| ■ 6-point mode input voltage (-10V-+10V)/current (-20mA-+ 20mA)* input resolution 14-bit built-in RS-485 interface | DVP06AD-S | |||
| 4-6-point analog hybrid l/0 module 4-point analog voltage (-10V-+10V)/current (-20mA-+ 20mA) 2-point analog voltage (0V-+10V)/current (0mA-+ 20mA) daily resolution 12-bit built-in RS-485 interface | DVP06XA-S |
| Name | Description | Model |
| Left High Speed Analog I/O Module | ■ 4 groups of analog inputs * ■ Signal range: 1-5V,0-5V,-5-5V,0-10V,-10-10V 4-20mA,-20-20mA ■ Resolution 16-bit ■ Provide single reverse channel on/of to improve overall conversion efficiency ■ Conversion time: 250 μs/point ■ Disconnect warning (1-5V,4-20mA) | DVP04AD-SL |
| ■ 4 sets of analog outputs * ■ Signal range: 0~10V,-10~10V,4 ~ 20mA,0 ~ 20mA ■ Resolution 16 bits ■ Provide single channel on/off setting Port conversion time: 250 μs/point | DVP04DA-SL | |
| Left High Speed Load cel Weighing Module | 2 sets of Load cell weighing modules * ■ Resolution rate 20 bits ■ 4-wire/6-wire load celH sensor can be connected ■ Measurement range provided: 0 ~ 6mV // V | DVP02LC-SL |
| ■ 1 set of Load coll weighing module ■ resolution 20 bits ■ 4-wire/6-wire load celH sensor can be connected ■ measurement range provided: 0-6mV // V | DVP01LC-SL | |
| Temperature Measurement Module | ■ 4-point Platinum Thermal Resistance (PT100) Temperature Sensor Input */DT1000 ■ Resolution 0.1 ℃ Built-in RS-485 Interface | DVP04PT-S |
| ■ 4-point thermoelectric handle (, K, R.S, T type) temperature sensor input * Resolution 0.1 ℃ ■ Built-in RS-485 interface | DVP04TC-S | |
| Positioning Module | Single-axis 200kHz Servo Positioning Control Expansion Module | DVP01PU-S |
| Communication Module | DeviceNet slave module | DVPDT01-S |
| PROFIBUS DP slave module | DVPPF01-S | |
| Left High Speed Communication Module | Ethernet Module, 10/100Mbps | DVPEN01-SL |
| DovicoNot master module, 500kbps | DVPDNET-SL | |
| CANopen master module, 1Mbps | DVPCOPM-SL | |
| PROFIBUS DP slave module, 12Mbps | DVPPF02-SL | |
| RS-485/RS-422 Serial Address Module, 460kbps | DVPSCM12-S | |
| BACnet MS/TP Slave Module, 460kbps | DVPSCM52-S | |
| far /O</> strong </> strong block </> | RS-485 transport/O module can be connected to S series/O module | RTU-485 |
| Ethernet remote/0 module to connect with 8 Series/0 module | RTU-EN01 | |
| DevicoNo remote/0 module to connect with Series 5/0 module | RTU-DNET | |
| PROFIBUS remote I/O modules to connect with S Series/O modules | RTU-PD01 |
Plain language sourcing guide for Delta DVP-SE series
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
