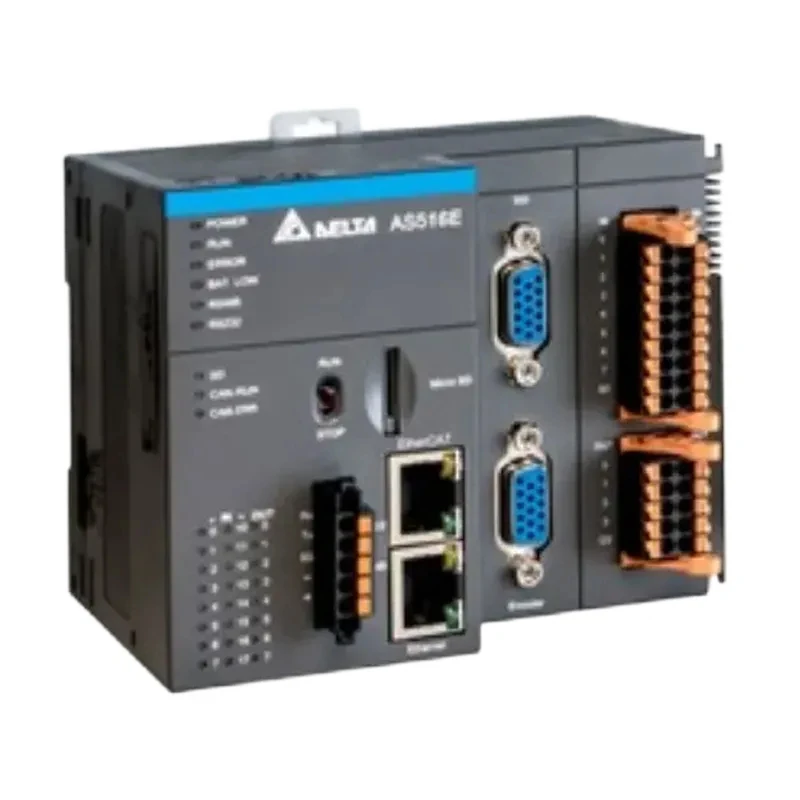

Delta AS series motion control CPU
LEHIY item code: LH-DELTA-0013
Quick buying check
This page helps you check Delta AS series motion control CPU before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Introduction
Product Features
- synchronous control of up to 32 axes with virtual axis-AS516E(EtherCAT): 16 axes/1ms, up to 16 real axes-AS524C(CANopen): 4 axes/2ms, up to 24 real axes
- Built-in international standard motion command library, support Jerk and BufferMode, no pause between motion paths
- Support encoder axis and virtual axis, no need to purchase encoder module
- Basic motion control functions for easy and quick use:-single-axis commands such as speed, position, origin regression, torque, position setting, etc.
- advanced motion control function to meet complex processes:-provide application instructions such as electronic gear, electronic cam, rotary cutting, etc.-support G code/axis group instructions: 8-axis linear interpolation, circular interpolation, spiral interpolation
- Support AS series modules, IO response more timely
- The program is compatible with the new generation of DVP-MC series motion control CPU, cross-platform conversion is easy
- Support third-party EtherCAT slave station (AS516E *), system configuration is more flexible
- Note: AS516E future firmware will support third-party slave function
Application field
- Electronic manufacturing, packaging, printing, packaging, wire cutting, pharmaceutical, CNC cutting machine, high-speed cutting machine, CNC lathe and other equipment
Technical specifications
Motion control network:- - AS516E: EtherCAT (100 Mbps)
- - AS524C: CANopen DSP402 (1 Mbps)
- - AS516E(EtherCAT): 16 axes/1ms, up to 16 real axes
- - AS524C(CANopen): 4 axes/2ms,8 axes/4ms, up to 24 real axes
- -Number of cam tables: 64
- -Single cam key point: 2048 points
- -Program capacity: 20MB; Variable capacity: 20MB;G code 256KB
- - 1GHz high-speed computing processor, supporting 64-bit floating-point (LREAL) data type operations
- -programming/serial communication port: USB(2.0)/RS232/RS485 1 group each
- - CANopen communication port: 1 group (DS301 master station/slave station)
- - Ethernet communication port: 1 group (AS516E) / 2 group (AS524C), supporting MODBUS TCP(Server/Client) and Ethernet/IP(Adapter)
- -Built-in two incremental encoder interfaces and one SSI absolute encoder interface
- -Host built-in I/O: 16DI (external interrupt support)/8DO
- -Maximum I/O expansion points: 1,024 points
- -Maximum expansion modules: 32 in total (limit: 16 analog modules at most)
Plain language sourcing guide for Delta AS series motion control CPU
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
