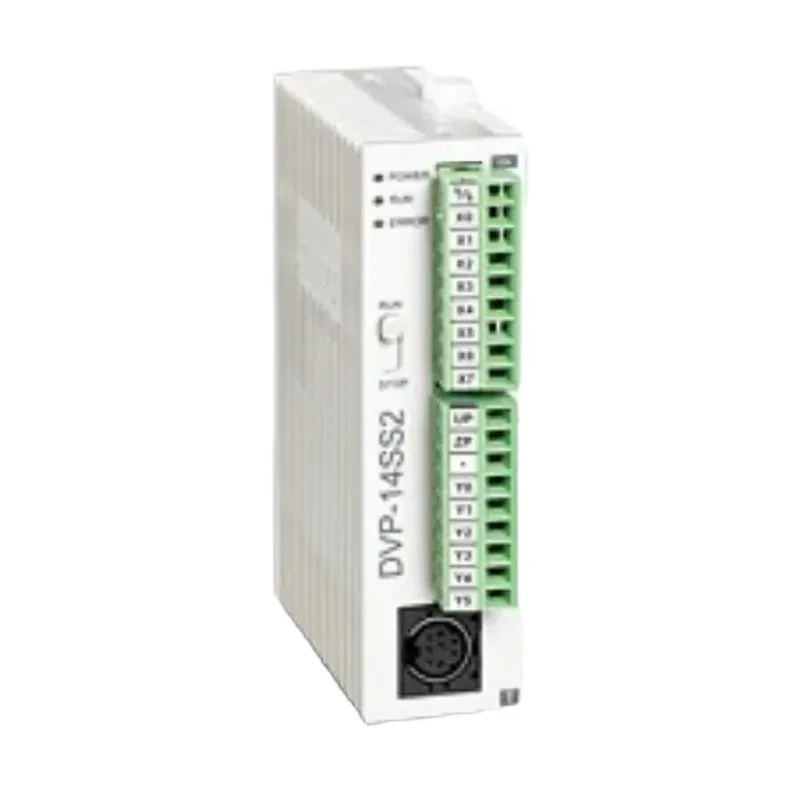

Delta DVP-SS2 series PLC
LEHIY item code: LH-DELTA-0010
Quick buying check
This page helps you check Delta DVP-SS2 series PLC before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Introduction
Product Features
- Program capacity: 8k steps/Data register: 5k words
- higher than PLC processing speed at the same level, LD:0.54 μs,MOV:3.4μs
- Built-in RS-232 and RS-485 communication port (master/slave station), standard MODBUS ASCII/RTU communication protocol, support PLC Link function
- 10kHz pulse output at 4 points
- 8-point high-speed counter, 4: 20kHz / 4: 10kHz
Application field
spinning machine; conveyor belt (speed control); winding machine (tension control)Technical specifications
S-series hosts| Name | Power Supply | Output Method | Input | Output | Model |
| SV2 High Functionality Host | 24VDC power | Relay | 16 | 12 | DVP28SV11R2 |
| 24VDC power | Transistor | 16 | 12 | DVP28SV11T2 | |
| 24VDC power | Transistor (PNP) | 16 | 12 | DVP28SV11S2 | |
| SV High Functionality Host | 24VDC power | Relay | 16 | 12 | DVP28SV11R |
| 24VDC power | Transistor | 16 | 12 | DVP28SV11T | |
| Crystal name | Power Supply | Output | Input | Output | Model |
| SS2 Standard Host | 24VDC power | Relay | 8 | 6 | DVP14SS211R |
| 24VDC power | Transistor | 8 | 6 | DVP14SS211T | |
| 24VDC power | Transistor (PNP) | 8 | 4 | DVP12Ss211s | |
| SA2 Advanced Host | 24VDC power | Relay | 8 | 4 | DVP12SA211R |
| 24VDC power | Transistor | 8 | 4 | DVP12SA211T | |
| SX2 Analog Host | 24VDC power | Relay | 8(4Al) | 6(2AO) | DVP20SX211R |
| 24VDC power | Transistor (NPN) | 8(4Al) | 6(2AO) | DVP20SX211T | |
| 24VDC power | Transistor (PNP) | 8(4AI) | 6(2AO) | DVP20SX211s | |
| Name | Power Supply | Output | Input | Output | Model |
| SE Networked Host | 24VDC power | Relay | 8 | 4 | DVP128E11R |
| 24VDC Electro-hydraulic | Transistor | 8 | 4 | DVP12SE11T | |
| Name | Power Supply | Output | Input | Output | Model |
| SX Analog Host | 24VDC power | Relay | 4(2Al) | 2(2AO) | DVP108X11R |
| 24VDC power | Transistor | 4(2Al) | 2(2AO) | DVP10SX11T |
| Name | Output Method | Input | Output | Model |
| Digital Module | Relay | 6 | DVP06SN11R | |
| Relay | DVP08SN11R | |||
| Transistor | 8 | DVP08SN11T | ||
| Transistor | 16 | DVP16SN11T | ||
| Relay | 4 | 4 | DVP08SP11R | |
| Transistor | 4 | 4 | DVP08SP11T | |
| 8 | DVP08SM11N | |||
| 8 | DVP08SM10N | |||
| Transistor (PNP) | 8 | pVP08sN11TS | ||
| Digital Switches | 8 | DVP08ST11N | ||
| Relay | 8 | 8 | DVP16SP11R | |
| Transistor (PNP) | 4 | 4 | DVP08SP11TS | |
| Transistor (NPN) | 8 | 8 | DVP16SP11T | |
| Transistor (PNP) | 8 | 8 | DVP16SP11TS | |
| Transistor (PNP) | 16 | DVP16SN11TS | ||
| 16 | DVP16SM11N | |||
| Transistors, Horns | 32 | DVP32SN11TN | ||
| Horns | 32 | DVP32SM11N | ||
| Analog I/O Module | ■ 4-point analog input voltage (-10V ~ +10V)/current (-20mA ~ + 20mA) ■ input resolution 14 bits ■ built-in RS-485 interface | DVP04AD-S | ||
| ■ 4-point analog output voltage (0V-+10V)/current (0mA-+ 20mA)* ■ resolution 12 bits ■ built-in RS-485 interface | DVP04DA-S | |||
| ■ 2-point analog output voltage (0V-+10V)/current (0mA ~ + 20mA) ■ resolution 12 bits ■ built-in RS-485 interface | DVP02DA-S | |||
| ■ 6-point analog input voltage (-10V-+10V)/current (-20mA-+ 20mA)* input resolution 14-bit ■ built-in RS-485 interface | DVP06AD-S | |||
| ■ 6-point analog hybrid I/O module ■ 4-point analog voltage (-10V ~ +10V)/current (-20mA-+ 20mA) ■ 2-point analog voltage (0V-+10V)/current (0mA-+ 20mA) ■ resolution 12-bit ■ built-in RS-485 interface | DVP06XA-S |
| Name | Description | Model |
| Left High Speed Analog I/O Module | ■ 4 sets of analog inputs * ■ signal range: 1-5V,0-5V,-5-5V,0-10V,-10-10V, & nbsp,-20-20mA resolution 16 bits ■ single channel on/off is provided to improve overall conversion efficiency ■ conversion time: 250 μs/point ■ disconnection warning (1~5V,4 ~ 20mA) | DVP04AD-SL |
| ■ 4 sets of analog outputs ■ signal range: 0~10V,-10~10V,4 ~ 20mA,0 ~ 20mA ■ resolution 16 bits ■ single channel on/off is provided ■ conversion time: 250 μs/point | DVP04DA-SL | |
| Left High Speed Load cell Weighing Module | ■ 2 sets of Load cell mixing modules * ■ decomposition rate 20 bits ■ 4-wire/6-wire load celH special sensor ■ measurement range: 0 ~ 6mV // V | DVP02LC-SL |
| ■ 1 set of Load cell weighing module "■ resolution 20 bits ■ 4-wire/6-wire load cel sensor ■ measurement range: 0-6mV // V | DVP01LC-SL | |
| Temperature Measurement Module | ■ 4-point platinum thermal resistance (PT100) temperature sensor input */DT1000 ■ resolution 0.1 ℃ ■ built-in RS-485 interface | DVP04PT-S |
| ■ 4-point thermoelectric handle (j, k, R.S, T type) temperature sensor input * ■ resolution 0.1 ℃ built-in RS-485 interface | DVP04TC-S | |
| Positioning Module | Single Axis 200kHz Servo Positioning Control Expansion Module | DVP01PU-S |
| Communication Module | DeviceNet slave module | DVPDT01-S |
| PROFIBUS DP slave module | DVPPF01-S | |
| Left High Speed Communication Module | Ethernet module, 10/100Mbps | DVPEN01-SL |
| DeviceNot master module, 500kbps | DVPDNET-SL | |
| CANopen master module, 1Mbps | DVPCOPM-SL | |
| PROFIBUS DP slave module, 12Mbps | pVPPF02-SL | |
| RS-485/RS-422 serial communication module, 460kbps | DVPSCM12-S | |
| BACnet MS/TP Slave Module, 460kbps | DVPSCM52-S | |
| Remote I/O Modules | RS-485 I/O Modules for Connection to S Series I/O Modules | RTU-485 |
| Ethernet remote/0 module to connect with S-Series/0 module | RTU-EN01 | |
| DevicoNot remote 1/0 modules to connect with S-Series/0 modules | RTU-DNET | |
| PROFIBUS remote l/O modules to connect with S-Series/O modules | RTU-PD01 |
Plain language sourcing guide for Delta DVP-SS2 series PLC
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
