WIKA IPT-20 Pressure Transmitter for Petrochemical, Food and Beverage Use
LEHIY item code: LH-WIKA-0008
Quick buying check
This page helps you check WIKA IPT-20 Pressure Transmitter for Petrochemical, Food and Beverage Use before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
WIKA IPT-20 pressure transmitters are made in Germany for petrochemical, food, and beverage applications. Customized models and configurations are available upon request. WIKA transmitters are eligible for project discounts.
The WIKA IPT-2X process transmitter comes with original documents including a factory performance test report, quality certificate, and operation manual.
WIKA Transmitter IPT-20 Accessory Configuration Details: Industrial Process Transmitter with Metal Sensor Element WIKA IPT-2x Model: IPT-20 Parameters are as follows: Specification Data Sheet: PE 86.06 Process Connection Type: Standard connection with pressure port Electrical Certification: EAC Explosion-proof: Explosion-proof Zone: Zone 1 and Zone.
0 gas connection [Ex d IIC T1…]T6 Ga/Gb] Housing Material: Aluminum single-chamber housing Model: Compact / IP66/IP67; NEMA 4 x Digital Display: With integrated indication/regulation module (top) Output Signal: 4…20mA, 2-wire, HART Electrical Connection: M20x1,5 / cable gland nickel-plated brass.
(ø6-12mm) Measuring Range: 0…4000 bar Accuracy: 0.5% of range Process Connection Type: Pressure gauge connection open Process Connection/Wet Part: M16 × 1.5mm inner bore, with sealing cone seal: None -40…+105°C WIKA IPT-20, IPT-21 process pressure transmitters with welded metal measuring elements.
Applications: Processing engineering, chemical industry, petrochemical industry, food and beverage industry, machinery manufacturing and equipment construction. Features: High measurement accuracy, adjustable pricing, wide range of applications, certifications, 7 different housings.
Configurable via DTM (Device Type Manager) according to FDT (Field Device Tool) – concepts (such as PACTware).
WIKA Pressure Transmitter Description: This pressure transmitter model is available in intrinsically safe and explosion-proof (ATEX compliant) versions, both supporting 4…20 mA, 4…20 mA HART®, PROFIBUS®, or FOUNDATION Fieldbus® output signals to meet corresponding application requirements.
All electronic components of the pressure transmitter are explosion-proof, even the explosion-proof version is intrinsically safe, therefore, the instrument can be calibrated in an explosion-proof area while operating.
The WIKA DPT-10 general-purpose transmitter meets a variety of industrial measurement needs, such as flow measurement, level measurement, or filter and pump detection using differential pressure elements. The DPT-10 is equipped with a diaphragm seal, making it suitable for harsh processing conditions.
This model has a measurement range of 0...1 kPa to 0...4 MPa and a static pressure limit up to 42 MPa, meeting the requirements of any application. Furthermore, this transmitter combines internal digital signal processing and a proven sensor to achieve high accuracy and long-term stability.
The WIKA IPT-20 pressure transmitter for petrochemical and food/beverage applications is available in seven different housings, allowing selection of a suitable housing for various operating environments. The housing can rotate freely 330° and is primarily available in plastic, aluminum, and stainless steel.

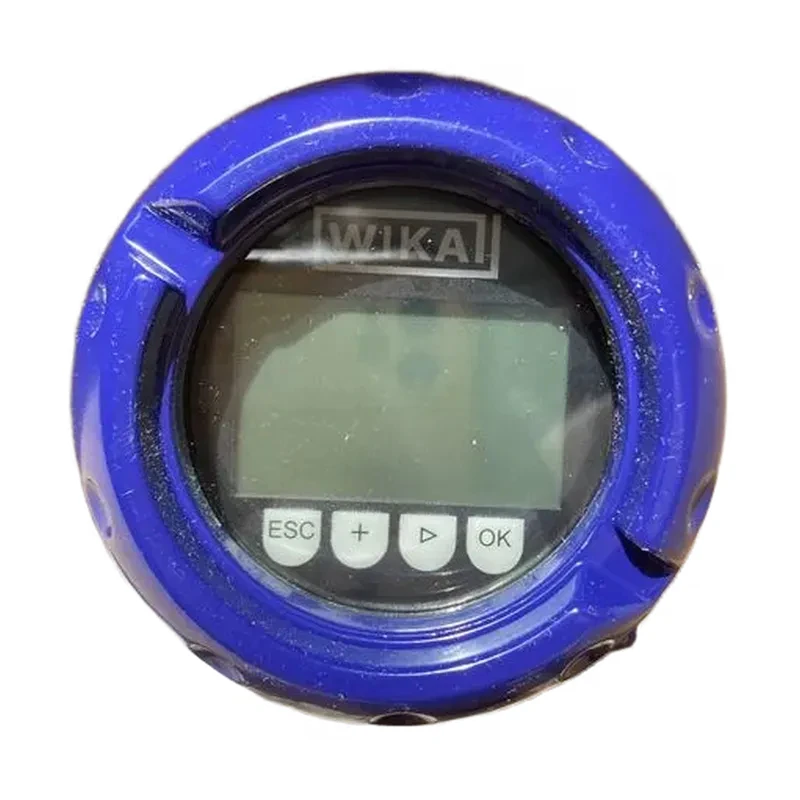

For demanding applications in the food and pharmaceutical industries, an electropolished stainless steel (316L) housing is also available. Easy to configure and operate, the instrument can be configured and maintained via a display with an optional operating module, which can be installed in four different positions.
The operation menu is logically structured, easy to understand, and offers seven selectable languages. Furthermore, users can use the free PACTware® configuration software to set operating parameters. The instrument-specific DTM allows for easy integration of instruments into corresponding distributed control systems.

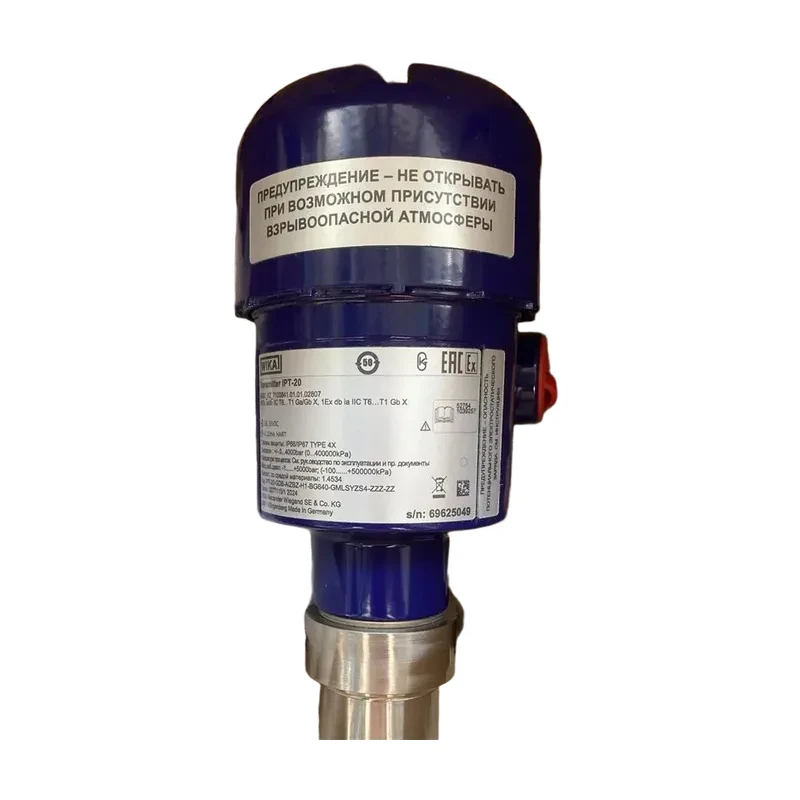

Imported German WIKA IPT-20 pressure transmitter, actual product photos: WIKA IPT-20 and IPT-21 process pressure transmitters with welded metal measuring elements: 82094493 Parameter description: 232.50 4.5 25MPA LBM FF; 82095048 Parameter description: 232.50 4.5 40MPA LBM FF; 50782231 Parameter description: 111.11 2.
3000PSI 1/4 BR; 82052492 Assembly description: Industrial assembly configuration; 82052506 Assembly description: Industrial assembly configuration; 52050D105G4 Parameter description: TI.52 5 " 0/100 °C Glass 1/2" NPT; 52060D105G4 Parameter description: TI.52 6 "0/100 °C Glass 1/2" NPT 52080D109S4SF Parameter Description: TI.52 8".
0/200 °C Safety Glass 1/2" NPT SF 50921878 Parameter Description: 233.34 4.5 11KGCM2 1/2 L TAG CC 82102587 Pressure Transmitter IPT-10 82097941 Pressure Transmitter I IPT-10 82097948 Pressure Transmitter I IPT-10 82113536 Pressure Transmitter I IPT-10 9694646 232.54 2.5.
160PSI/KGCM2 1/4 L 82096046 Pressure Transmitter I IPT-10 82096244" Pressure transmitter I IPT-11 82103445.
For WIKA transmitters, pressure gauges, and sensor instruments, please call us!
Plain language sourcing guide for WIKA IPT-20 Pressure Transmitter for Petrochemical, Food and Beverage Use
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | WIKA | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
