S/A-10 WIKA pressure sensor and pressure transmitter

Genuine imported German-made S/A-10 WIKA pressure sensors and transmitters. One-year warranty; customs documents and quality certificates are available. We support online selection and after-sales technical support for WIKA sensors/transmitters.

WIKA Sensor/Transmitter Introduction: WIKA pressure sensors (or WIKA pressure transmitters) convert the physical quantity of "pressure" into an industrially standardized signal.

We offer various pressure sensors to meet all general industrial applications, as well as special models for refrigeration and air conditioning, food processing, construction machinery, medical gases, and the semiconductor industry.

WIKA offers pressure sensors with 0.05% accuracy and a measurement range from 0.005 MPa to 1,500 MPa.

Products also feature digital interfaces such as CANopen and IO-Link, and various international certifications (including hazardous area certification). What is a WIKA pressure sensor? What is a WIKA pressure transmitter?

A pressure sensor is used as a measuring element to convert the physical quantity of "pressure" into an electrical variable.

WIKA defines pressure transmitters as pressure sensors with standardized electrical and mechanical interfaces and standardized output signals. Pressure sensors are typically used to measure absolute pressure as well as gauge and differential pressure, and measurements can be easily completed in a short time.

WIKA manufactures pressure sensors using three of the most common pressure measurement principles in industrial measurement technology — thin-film sensors, thick-film sensors, and piezoresistive pressure sensors.

The operating principle of WIKA pressure sensors is generally distinguished by their measurement range, pressure connection thread, output signal, and electrical connection. A standardized pressure connection directs the measured pressure to the pressure sensor element.

The pressure sensor's electronics convert the signal into a scaled signal and transmit this scaled signal via a standardized connector or cable for subsequent signal evaluation. diaphragm.

The operating principle of piezoresistive pressure sensors is based on the piezoresistive effect of pressure measurement. The piezoresistive effect states that the resistance of a semiconductor material, such as a silicon diaphragm, changes due to stretching or compression.

In the overview of WIKA's various pressure sensors, you can learn more about the different types of pressure sensors, their applications, and how to select the right WIKA pressure sensor.

Applications of WIKA Differential Pressure Sensors: WIKA differential pressure sensors measure the difference between two absolute pressures and display it as a differential pressure.

These sensors are used to monitor filters, pumps, or compressors, such as the WIKA A2G-50 differential pressure sensor. These sensors also play an important role in the pharmaceutical industry. WIKA S/A-10 Pressure Sensor: WIKA Pressure Transmitter Product Description, Applications, and Features.

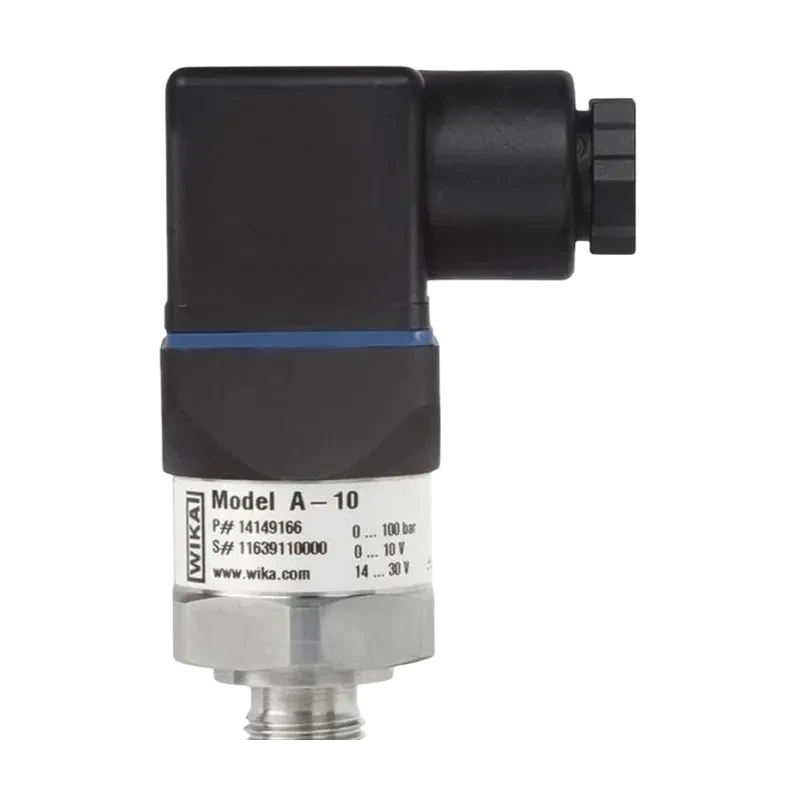

Description: The field-proven A-10 pressure transmitter (pressure sensor) is a versatile product for pressure measurement in industrial environments. Its compact design allows for integration into various machine designs. A wide measurement range, plus special measurement ranges, further enhances its versatility.

Applications: Mechanical manufacturing, measurement and control technology, hydraulic and pneumatic technology, pumps and compressors, marine manufacturing. Features: Superior quality and reliable technology. A wide range of models are available, covering various applications. All available models can be shipped quickly, starting from 1 piece. High cost-performance ratio.

Superior quality and reliable technology. Our years of experience and precise understanding of customer needs have been incorporated into the development of the WIKA A-10. It has proven in countless applications for over a decade.

Renowned globally for its consistently high quality and reliable functionality, and tested by numerous internal and external organizations, this best-selling product can withstand up to 100 million load cycles with near-constant accuracy.

A wide range of models covering diverse applications, the WIKA A-10 measures gauge, absolute, and mixed pressures upon request.

It can be flexibly configured with over 2 million variations, allowing for easy integration into virtually any plant concept. All optional models are available for rapid delivery, with quantities as low as one piece.

Each optional A-10 model can be produced and packaged within five business days of order placement, allowing for shipment even from single pieces, or in large quantities. Shorter lead times help OEMs meet short production time requirements and help distributors quickly procure the right products for their customers.

The WIKA A-10 offers excellent performance at a cost-effective price, matching the accuracy and robustness required for most applications. High reliability and long service life ensure low maintenance and replacement costs.
