SIEMENS Smart Connectivity Module, 6SL3255-0VA00-5AA0
LEHIY item code: LH-2661
Extreme Operating Temperature Range: -10 °C to 60 °C
Category: SIEMENS Smart Connectivity Module
Rated Voltage/Voltage Range: 24 V DC
Quick buying check
This page helps you check SIEMENS Smart Connectivity Module, 6SL3255-0VA00-5AA0 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Introduction Overview

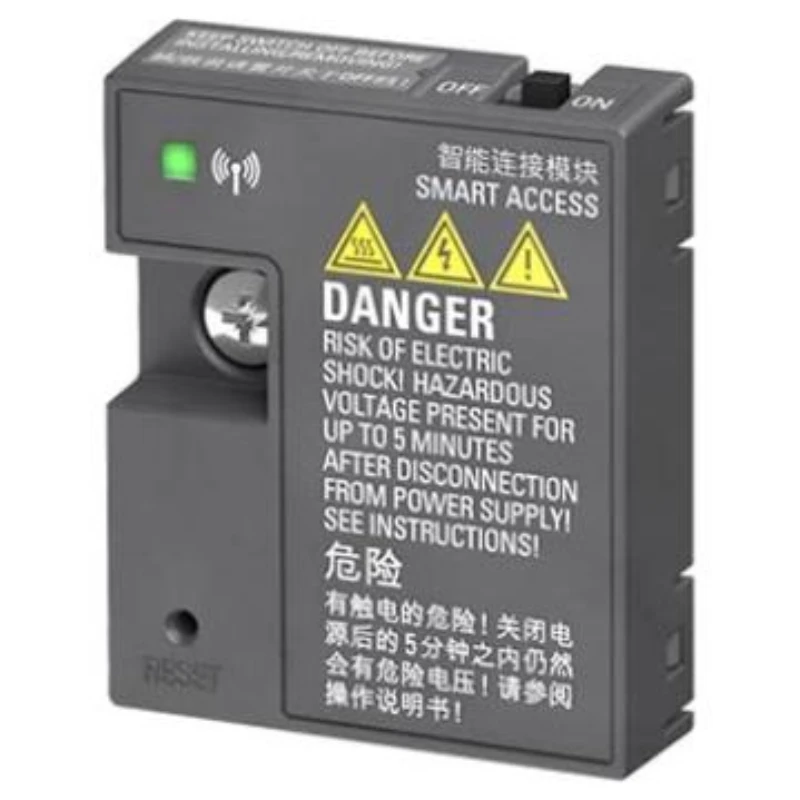

The SINAMICS V20 Smart Connection Module is a web server module that integrates Wi-Fi connectivity. This module enables web-based access to the inverter from connected devices (traditional PCs, tablets, or smartphones with wireless network cards), allowing for quick commissioning, parameter setting, JOG, monitoring, diagnostics, backup, and recovery operations.
This module is for commissioning only and should not be used with the inverter for extended periods.
Installation of the SINAMICS V20 Smart Connection Module to the Inverter
Instructions
Prerequisites
Before installing the SINAMICS V20 Smart Connection Module to the V20, if RS485 communication exists, P2010[1] must be set to 12 via BOP.
Caution
Improper installation or removal may damage the module.
Installing or removing the SINAMICS V20 Smart Connect Module with the power switch in the "ON" position may damage the module. Ensure the switch is switched to the "OFF" position before installing or removing the module.
Reset Wi-Fi Configuration
With the inverter powered on, pressing and holding the reset button on the module will reset the Wi-Fi configuration to the default settings:● Wi-Fi SSID: V20 smart access_xxxxxx ("xxxxxx" represents the last six characters of the SINAMICS V20 smart connection module's MAC address)
● Wi-Fi Password: 12345678
● Frequency Channel: 1
Instructions
Before pressing the reset button to reset the Wi-Fi configuration, please check the color of the status LED on the module to ensure it is solid green/solid yellow or flashing green. After pressing the reset button, do not release it until the status LED flashes yellow. Only then can the Wi-Fi configuration be successfully reset via the reset button.
Product Features
| LED Colors | Meaning | |
| Red Solid | Client connected to module, USS communication between module and inverter failed. | |
| Green Solid | Module is working, client connected to module. | |
| Yellow Solid | Module is working, no client connected to module. | |
| Red flashing | Flashing at 1 Hz | No client connected to the module; USS communication between the module and the inverter failed. * |
| Flashing at 0.5 Hz | Module is starting up. | |
| Green flashing | Module is working; a WebSocket channel has been connected to the module. | |
| Yellow flashing | Module restart reminder. | |
| Red and yellow flashing alternately | Web application, firmware, or service pack is being updated. |
* If USS communication between the module and the inverter fails, you must first slide the module's power switch to "OFF" to power off the module, then press and hold the reset button and slide the power switch to "ON" to power on the module, and then upgrade the.
module's firmware version.
Technical Specifications
| Firmware Version | ≥ V01.02.05 |
| Rated Voltage/Voltage Range | 24 V DC |
| Wireless Technology and Operating Frequency | Wi-Fi 2400 MHz to 2483.5 MHz |
| RF Output Power | 17.5 dBm (e.i.r.p) |
| Wireless Modulation Standard | 802.11 b/g |
| Antenna Type and Gain | 1.9 dBi |
| Extreme Operating Temperature Range | -10 °C to 60 °C |
Notes
The maximum wireless communication distance (unbarriered) is 140 m, but this value may vary depending on environmental conditions.
Technical Specifications
| Specification | Value |
|---|
