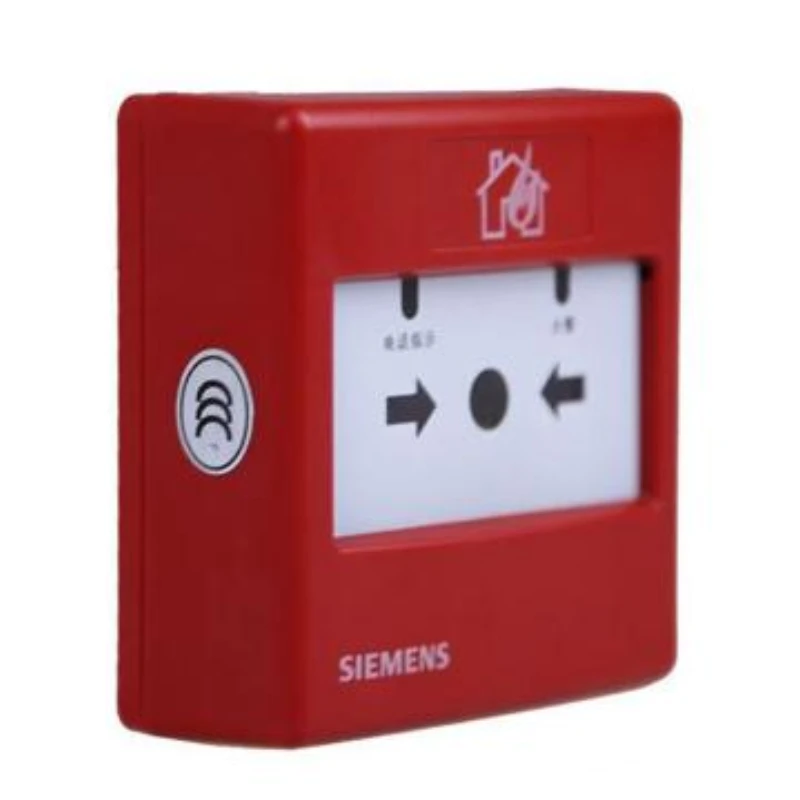

SIEMENS Intelligent Manual Alarm Button (with built-in short-circuit isolator in telephone jack), FDM230-CN
LEHIY item code: LH-1191
Description: SIEMENS Intelligent Manual Alarm Button (with built-in short-circuit isolator in telephone jack)
Category: Manual Alarm Button
The FDM230-CN manual fire alarm button is used to manually activate the alarm when a fire occurs. It consists of two parts: a manual alarm (1) and a base (2).
Quick buying check
This page helps you check SIEMENS Intelligent Manual Alarm Button (with built-in short-circuit isolator in telephone jack), FDM230-CN before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Overview
The FDM230-CN manual fire alarm button is used to manually activate the alarm when a fire occurs. It consists of two parts: a manual alarm (1) and a base (2).
Product Features
Meets national standard GB19880-2005 "Manual Fire Alarm Buttons"
Resettable push-button alarm
Each manual alarm is independently addressed, and the address is automatically set without the need for encoder settings or DIP switches.
The fire alarm LED can display normal, alarm, and location status, and the telephone LED can display the telephone status.
Communicates with the controller (FC720-CN series/FS1120 series) via C-NET.
Comes with a telephone jack (3.5mm diameter)
The product label comes with a peelable coding sticker for easy engineering debugging
Manual Fire Alarm Button Function
Pressing the control panel directly triggers the alarm. The control panel display changes as shown in Figure 2, and the fire alarm indicator light illuminates.
Insert the telephone jack to call the switchboard.
Reset the control panel with the key to restore the manual alarm to normal operation.
Manual Fire Alarm Button Debugging
The table below lists the different states indicated by the fire alarm indicator light.
| Status | Red LED Indicator Light |
| Normal | Off |
| Alarm | Constant On |
| Location | Flashing |
The following table lists the different states indicated by the telephone indicator lights
| Status | Red LED Indicator |
| Normal (Hang-up) | Flashing |
FDM230-CN Manual Communicator Function Check
Set the circuit containing the manual communicator to test mode
Press the control panel; the fire alarm indicator light will illuminate.
Insert the key from the bottom as shown in Figure 9 to reset the control panel.
Remove the key and reset the manual alarm to normal mode.
Product Applications
Applications
Immediate manual alarm for fire alarms.
Indoor use.
Surface mounting and recessed mounting; location should be easily accessible.
Installation:
Preparation
Use the key to separate the base (see Figure 3; the key is included in the product packaging).
Keep the key in a safe place. Secure the base. Installation. ...
Technical Specifications
