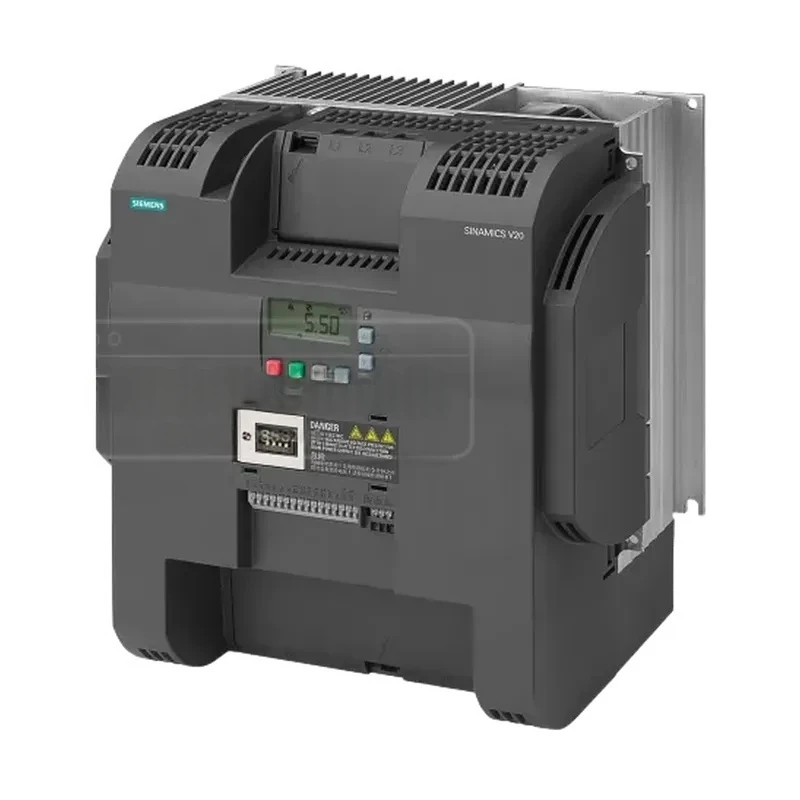

Siemens frequency converter 6SL3210-5BB15-5UV1
LEHIY item code: LH-0068
Quick buying check
This page helps you check Siemens frequency converter 6SL3210-5BB15-5UV1 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
| Category | Details |
| Product Introduction | Siemens 6SL3210-5BB15-5UV1 belongs to SINAMICS V20 series frequency converter, which is specially designed for precise control of AC motor speed and running state. The inverter has a strong high overload capacity, which can ensure the stable operation of the motor under various complex conditions, such as frequent starting, long-term high-load operation and so on. It is equipped with a basic operation panel, users can easily and quickly set various parameters, real-time monitoring of the motor running voltage, current, speed and other key information. Its protection level reaches the IP20/UL open standard, which can effectively prevent dust from entering, resist the intrusion of foreign objects to a certain extent, and provide guarantee for the reliable operation of the equipment in different environments. In terms of installation, it has a compact structure and supports two installation methods, through-wall and wall-mounted, and these two methods can be installed side by side, which greatly saves cabinet space. |
| Technical parameters | |
| Project | Details |
| -- | -- |
| Input voltage | 200 - 240V 1AC, allowable fluctuation range is ± 10% |
| Frequency | 47 - 63Hz |
| Nominal power | 0.55kW |
| Overload capacity | 150% rated load current within 60 seconds |
| I/O configuration | digital quantity input: 4 (DI), which can receive switching quantity control signals such as motor start, stop, forward and reverse rotation, etc. digital quantity output: 2 (DO), which is used to feed back information such as motor running state, fault alarm, etc. analog quantity input: 2 (AI), which can be connected to sensors such as pressure and temperature, convert physical quantity into electrical signals, and realize dynamic adjustment of motor speed analog quantity output: 1, which can output analog signals such as motor speed and torque for monitoring by other equipment |
| Fieldbus | Support USS/MODBUS RTU communication protocol to facilitate data interaction with host computer, PLC and other equipment to realize remote monitoring and centralized management |
| Dimensions (width x height x depth) | 68x142x128mm |
| Protection level | IP20/UL open |
| Installation method | Wall-mounted, side-by-side, through-wall installation |
| Cooling method | 0.12 to 0.75kW for convection cooling; all dimensions can be cooled by radiator and external fan |
| Operating temperature | Volume reduction at -10 …60°C (14 …140 °F),40 …60°C (104 …140 °F) |
| Storage temperature | -40 ... 70°C (-40 ... 158 °F) |
| Relative humidity | 95% (no condensation) |
| Installation altitude | below 4000 m above sea level; Output current drop capacity at 1000 - 4000 m, input voltage drop capacity at 2000 - 4000 m |
| Motor cable length | unshielded cable: 50m is suitable for relevant smaller dimensions, 100m is suitable for larger dimensions FSE; Shielded cable: 25m is suitable for relevant smaller dimensions, 50m is suitable for FSE, and the length of motor cable can be extended by using output reactor |
Plain language sourcing guide for Siemens frequency converter 6SL3210-5BB15-5UV1
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
