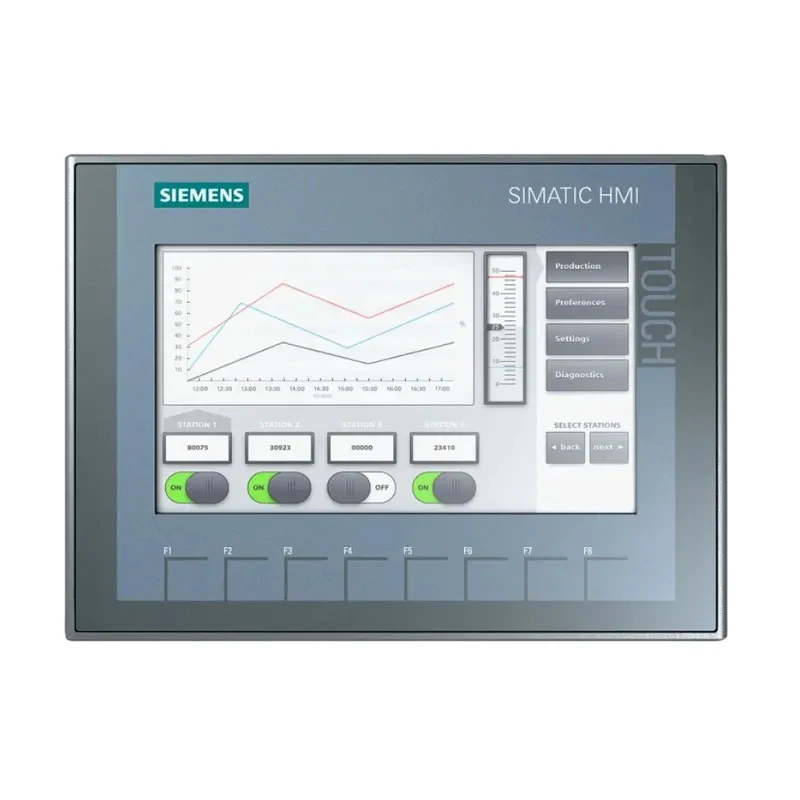

Siemens Touchscreen 6AV2123-2GA03-0AX0
LEHIY item code: LH-0052
Quick buying check
This page helps you check Siemens Touchscreen 6AV2123-2GA03-0AX0 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
| Order No. 6AV2123-2GA03-At/ | |
| SIMATIC HMI,KTP700 Basic Edition DP Compact Panel, Push/Touch Operation, 7 "TFT Display Screen, 65536 Color, sp PROFIBUS; connect, Minimum version for configuration WinCC Basic V13/ STEP 7 Basic V13 Includes open source software, available for free on CD | |
| General information | |
| Product Type Logo | KTP700 Basic color DP |
| Show | |
| Screen Specifications | TFT Widescreen Display, LED Background Light |
| Screen alignment | 7 in |
| Screen width | 154.1 mm |
| Screen height | 85.9 mm |
| Number of colors | 65536 |
| Resolution (pixels) | |
| ● Flat Image Resolution | 800 pixel |
| ● Vertical image resolution | 480 pixel |
| Backlight | |
| ● MTBF Background illumination (at 25°C ) | 20 000 h |
| ● Adjustable background lighting | Yes |
| Operating elements | |
| Keyboard Font | |
| ● Function button | |
| -Number of function keys | 8 |
| - Number of function keys with LED | 0 |
| ● Key with LED | No |
| ● System button | No |
| ● Numeric keypad | Yes; OnScreen Keyboard |
| Yes; OnScreen Keyboard | |
| Touch screen | |
| ● Touch Screen Specifications | Yes; Analog |
| Installation/Installation | |
| Installation Location | Vertical |
| Can be installed vertically (portrait format) | Yes |
| Can be installed horizontally (landscape format) | Yes |
| The maximum allowable skew when external communication is not allowed | 35° |
| Supply Voltage | |
| Voltage type of power supply | DC |
| Rating (DC) | 24 V |
| Allowable Range, Lower (DC) | 19.2 V |
| Allowable Range, Upper (DC) | 28.8 V |
| Input current | |
| Current consumption (rated value) on current pulse I²t | 230 mA 0.2 A²·s |
| Power | |
| Typical Received Effective Power | 5.5 W |
| Processors | |
| Processor Type | ARM |
| Memory | |
| Flash RAM as available storage for Lex data | Yes Yes 10 Mbyte |
| Output Type | |
| Sound ● Buzzer & nbd; | Whether |
| Time | |
| Clock | |
| ● Cache | Yes Yes; Buffer Duration Typical 6 weeks Yes |
| Connect | |
| Business Ethernet Connection Number RS 485 Connection Number RS 422 Connection Number RS 232 Connection Number USB Connection Number 20 mA Connection Number (TTY) and Connection Number Other Connection Number SD number of card slots with software connection | 0 1 1; Common RS 485 0; With optional adapter 1; Most (16) GB 0 0 0 0 0 No |
| Ethernet | |
| ● Industry Ethernet Status LED | 0 |
| Protocol | |
| PROFINET PROFINET IO Protocol IRT PROFIBUS EtherNet/IP Protocol MPI | No No No Yes |
| Protocol (Ethernet) | |
| ● TCP/IP ● DHCP ● SNMP ● DCP ● LLDP | No No No No |
| Network Attributes | |
| ● HTTP ● HTML | No No |
| Redundancy Mode | |
| Fluid Redundancy | |
| - MRP | No |
| Other Agreements | |
| ● CAN | No |
| ● MODBUS | Yes; Modicon (MODBUS RTU) |
| Alarm/Diagnosis/Status Information | |
| Diagnostic ● Diagnostic information is readable | |
| EMV | |
| According to EN 55 011 Standard Suppressed Wire Rod Radiation | |
| ● Limit Value Level A Suitable for applications in the industry | Yes |
| ● Limit Value Class B Suitable for use in residential areas | No |
| Protection level and protection category | |
| IP (positive) | IP65 |
| IP (back) | IP20 |
| NEMA (positive) | |
| ● Include type 4, positive | Yes |
| ● Include Type 4x Positive | Yes |
| Standards, Licenses, Certificates | |
| CE Marking | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC License | Yes |
| Use in explosion-proof areas | |
| ● ATEX Zone 2 | No |
| ● ATEX Zone 22 | No |
| ● IECEx Zone 2 | No |
| ● IECEx Zone 22 | No |
| ● cULus Class I, Zone 1 | No |
| ● cULus Class I, Zone 2, Level 2 | No |
| ● FM Class I, Grade 2 | No |
| Shipbuilding Permit | |
| ● Lloyd's Register (GL) | Yes |
| ● American Bureau of Ship Inspection (ABS) | Yes |
| ● Bureau Veritas (BV) | Yes |
| ● DNV | Yes |
| ● LRS | Yes |
| ● Class NK | Yes |
| ● Polish Classification Society (PRS) | No |
| ● China Classification Society (CCS) | No |
| Environmental requirements | |
| Suitable for indoor use | Yes |
| Suitable for use outside the web | No |
| Ambient temperature in operation | |
| Operation (Vertical Installation) | |
| -the minimum value for vertical installation | 0 °C |
| -Best Value for Vertical Installation | 50 °C |
| Operation (most inclined) | |
| - The most skewed point | 0 °C |
| - The Best Value of the Most Inclined Portrait | 40 °C |
| Operation (Vertical Installation, Portrait Format) | |
| -the minimum value for vertical installation | 0 °C |
| -Best Value for Vertical Installation | 40 °C |
| Operation (most oblique, portrait format) | |
| - The most skewed point | 0 °C |
| - The Best Value of the Most Inclined Portrait | 35 °C |
| Ambient temperature during transport/storage | |
| ● Maximum Value ● Maximum Value | -20 °C 60 °C |
| Relative Air Humidity | |
| ● Operation, Best Value | 90%; No condensation |
| Operating System | |
| Proprietary | Yes |
| Preinstalled Operating System | |
| ● Windows CE | No |
| Item Configuration/Title | |
| Message display system (including buffer and transponder) Process value display (output) can specify process value (input) | Yes Yes Yes |
| Configurator | |
| ● STEP 7 Basic (TIA Portal) ● STEP 7 Professional (TIA Portal) ● WinCC flexible Compact ● WinCC flexible Standard ● WinCC flexible Advanced ● WinCC Basic (TIA Portal) ● WinCC Comfort (TIA Portal) ● WinCC Advanced (TIA Portal) ● WinCC Professional (TIA Portal) | Yes; Via Integrated WinCC Basic (TIA Portal) Yes; Via Integrated WinCC Basic (TIA Portal) No No No Yes Yes Yes Yes |
| Words | |
| Word | |
| ● Number of online/on-time words | 10 |
| Words | |
| ● Words for each item | 32 |
| WinCC (TIA Portal) | |
| Library Application Software/Options ● SIMATIC WinCC Sm @ rtServer Visual Basic task Control Help System ● The number of characters per information | No No Yes 500 |
| Message System | |
| ● Number of Message Categories ● Bit Messages Number of Bit Messages Simulation bsp; - Number of Analog Messages ● S7 Message Numbering Method ● System Messages HMI SIMOTION; ● Number of characters per message ● Number of process values per message ● Confirm groups | 32 1 000 25 No Yes; SIMATIC S7-1200 and System Message Buffer S7-1500 80 8 Yes |
Plain language sourcing guide for Siemens Touchscreen 6AV2123-2GA03-0AX0
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Siemens | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Siemens Touchscreen 6AV2123-2GA03-0AX0
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Siemens Touchscreen 6AV2123-2GA03-0AX0 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
