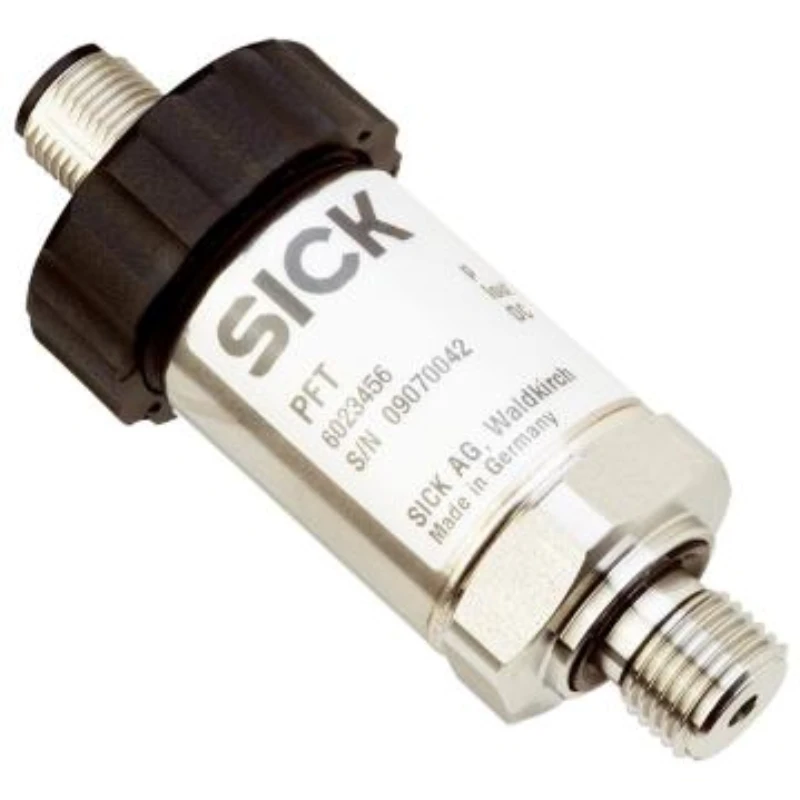

SICK pressure sensor, PFT-SABX25AG1SSAALSSZ
LEHIY item code: LH-SICK-0157
Process Temperature: –30 °C... +100 °C
Category: Pressure Transmitter
Rated Voltage: 10VDC... 30VDC
Quick buying check
This page helps you check SICK pressure sensor, PFT-SABX25AG1SSAALSSZ before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Features
| Media | Liquids and Gases |
| Pressure Type | Absolute Pressure |
| Pressure Unit | bar |
| Measuring Range | 0 bar ... 0.25 bar |
| Process Temperature | –30 °C ... +100 °C |
| Output Signal | 4 mA ... 20 mA, 2-wire |
Technical Specifications
| Process Interface | G ¼ A, conforming to DIN 3852-E standard |
| Wetted Parts | Standard Diaphragm: 1.4571 stainless steel, 1.4534 stainless steel for pressure measurement range > 25 bar |
| Internal Pressure Conductor Fluid | Synthetic oil (not for non-flush diaphragms for pressure measurement range > 25 bar) |
| Pressure Port | Standard |
| Enclosure Material | Stainless Steel 1.4571 |
| Connection Type | L-type connector (compliant with DIN EN 175301-803 A standard), IP65 |
| Supply Voltage | 10 V DC ... 30 V DC When the output signal is 0 V ... 10 V, 14 V DC ... 30 V DC |
| Electrical Safety | Overvoltage Protection: 36 V DC Short Circuit Protection: QA to M Reverse Polarity Protection: L+ to M Enclosure Protection Rating: III |
| Voltage Protection | 500 V DC, NEC Class-02 Power Supply (Low Voltage, Low Current, Maximum Power 100 VA, including fault conditions) |
| CE Certification | Pressure Equipment Directive: 2014/68/EU, Electromagnetic Compatibility Directive: 2004/108/EC, EN 61326-2-3 |
| Weight Sensor | Approximately 200 g |
| Seals | No Seals |
| Enclosure Protection Rating | IP65 |
| Enclosure Protection Rating: III | ✔ |
| MTTF | 403 Years |
| Nonlinearity | ≤ ± 0.2 %, Range (Best Fit Line, BFSL), compliant with IEC 61298-2 standard |
| Accuracy | ≤ ± 0.25 % Range |
| Non-repeatability | ≤ ± 0.1 % Range |
| Response Time (10% ... 90%) | ≤ 1 ms when measuring medium temperature < –30 °C, pressure measurement range less than 25 bar, or using a flush diaphragm, ≤ 10 ms |
| Long-term operational stability: Drift/year | ≤ ± 0.2 % range (under reference conditions) |
| Temperature coefficient within rated temperature range | Zero-point average temperature coefficient: ≤ 0.2% range/10 K (< 0.4% when pressure measurement range ≤ 0.25 bar), Range average temperature coefficient: ≤ 0.2% range/10 K |
| Rated temperature range | 0 °C ... +80 °C |
| Lifespan | At least 10 million load changes |
Notices
| Ambient Temperature | –20 °C ... +80 °C |
| Storage Temperature Range | –40 °C ... +100 °C, with flush film and integrated cooling channels: –20 °C ... +100 °C |
| Shock Load | 1000 g, IEC compliant IEC 60068-2-27 Standard (Mechanical Shock) 400 g, conforming to IEC 60068-2-27 Standard (Mechanical Shock), integrated cooling channel modification |
| Vibration Load | 20 g, conforming to IEC 60068-2-6 Standard (Resonant Vibration) 10 g, conforming to IEC 60068-2-6 Standard (Resonant Vibration), integrated cooling channel modification |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SICK |
| Category | Pressure Transmitter |
| Range (bar) | 0 bar... 0.25 bar |
| Rated Voltage | 10VDC... 30VDC |
| Controlled Fluid Type | Liquid and Gas |
Plain language sourcing guide for SICK pressure sensor, PFT-SABX25AG1SSAALSSZ
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
