SICK diffuse reflection photoelectric sensor (GTE6-P1212 = GTE6-P1211 + bracket), GTE6-P1212
LEHIY item code: LH-SICK-0125
Warehouse Ambient Temperature: –40 °C... +70 °C
Category: Diffuse Reflection
Operating Voltage UB: 10 V DC... 30 V DC1)
Quick buying check
This page helps you check SICK diffuse reflection photoelectric sensor (GTE6-P1212 = GTE6-P1211 + bracket), GTE6-P1212 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Overview

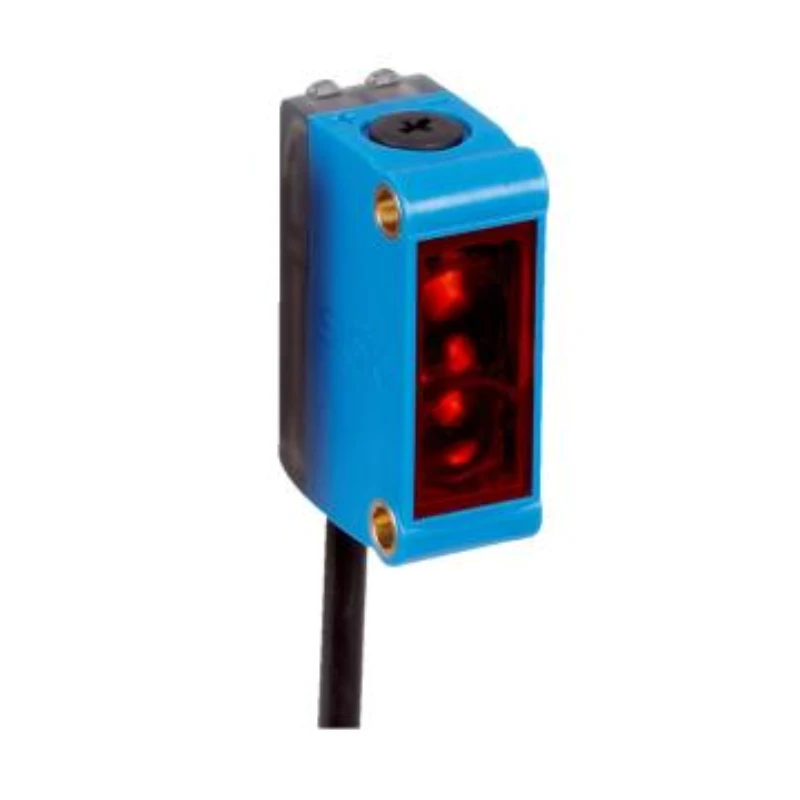

Product Name: SICK GTE6-P1212 Photoelectric Sensor
Manufacturer Model: GTE6-P1212
Brand: SICK
Packaging Unit: Piece
Technical Specifications
| Working Principle | Diffuse Reflection Photoelectric Sensor |
| Detailed Working Principle Information | Energy Type |
| Sensing Distance | ≤ 250 mm|
| Polarization Filter | No |
| Light Source | PinPoint-LED (2) |
| Light Source Type | Visible Red Light |
| Spot Size (Distance) | Ø 7 mm (90 mm) |
| LED Characteristic Values | |
| Axis Length | 650 nm |
| Settings | Mechanical Setting, 5 revolutions |
| 1) Scanning object with 90% reflectivity (referring to standard white as specified in DIN 5033). | |
| 2) Average service life: 100,000 hours, TU = +25 °C. | |
| Electrical Parameters | |
| Operating Voltage UB | 10 V DC ... 30 V DC1) |
| Residual Ripple | ± 10 %2) |
| Current Consumption | 30 mA3) |
| Protection Class | III |
| Digital Output | |
| Type | PNP |
| Signal Voltage PNP High/Low Level | Approx. UV- (≤ 3 V) / Approx. 0 V |
| Output Current Imax. | ≤ 100 mA4) |
| Response Time | <1,250 ms5) |
| Switching Frequency | 500 Hz6) |
| Switch Type | Light/Dark Switching |
| Selectable Switch Type | Selectable via Light/Dark Switch |
| Protection Circuit | A7) |
| B8) | |
| D9) | |
| 1) Critical value for short-circuit protection under power grid conditions: Maximum 8 A. | |
| 2) Must not exceed or fall below UV tolerance. | |
| 3) No load. | |
| 4) When UV > 24 V, IA max = 50 mA. | |
| 5) Signal transmission time (with resistive load). | |
| 6) Brightness/darkness contrast ratio of 1:1. | |
| 7)A = UV interface (reverse polarity protection implemented). | |
| 8)B = Input and output terminals with reverse polarity protection. | |
| 9)D = Output terminal with overload current and short circuit protection. | |
| Mechanical parameters | |
| Design and construction | Square |
| Dimensions (width x height x depth) | 12 mm x 31.5 mm x 21 mm |
| Interface | Cable, 3 cores, 2 m (1) |
| Interface Details | |
| Conductor Cross-Section | 0.14 mm² |
| Cable Length | 2 m |
| Material | |
| Shell | Plastic, ABS/PC |
| Front View | Plastic, PMMA |
| Cable | PVC ...|
| Warehouse Ambient Temperature | –40 °C ... +70 °C |
| UL File Number | NRKH.E348498 & NRKH7.E348498 |
| 1) Temperature stability is set to +/-10 °C. |
Notices
When a container is transferred from the conveyor belt to a vehicle, SICK's sensors detect the following:
|
Product Applications
|
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SICK |
| Category | Diffuse Reflection |
| Connection Method | 2m Cable |
| Detection Distance | 300mm |
| Output Status | PNP NO/NC |
| Operating Voltage (V) | DC12-24V |
| Protection Rating (IP) | 67 |
| Dimensions (mm) Length × Width × Height | 12 mm x 31.5 mm x 21 mm |
| Shape | Square |
Plain language sourcing guide for SICK diffuse reflection photoelectric sensor (GTE6-P1212 = GTE6-P1211 + bracket), GTE6-P1212
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
