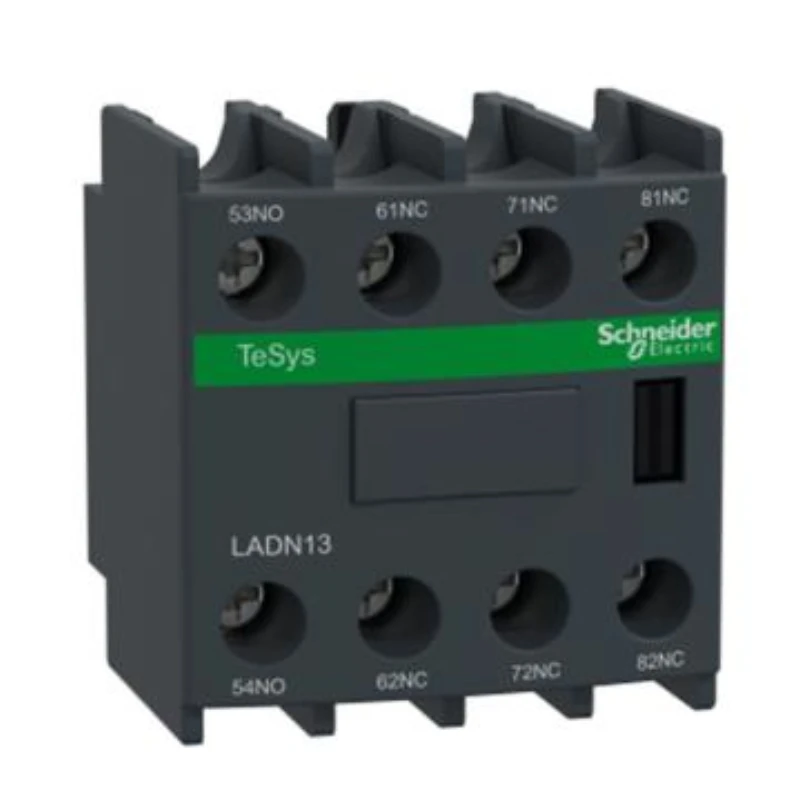

Schneider Electric contactor auxiliary contact, LADN13
LEHIY item code: LH-4550
Operating Temperature: -5…60 °C
Category: Schneider Electric contactor auxiliary contact
Storage Ambient Temperature: -60…80 °C
Quick buying check
This page helps you check Schneider Electric contactor auxiliary contact, LADN13 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Technical Specifications
| Product Series | TeSys TeSys Deca |
|---|---|
| Product Name | TeSys Deca |
| Product Type | Auxiliary Contact Module |
| Short Product Name | LADN |
| Scope of Application | TeSys D CAD TeSys D LC1D TeSys F LC1F TeSys F CR1F TeSys Deca CAD TeSys Deca LC1D |
| Mounting Location | Front Side |
| Circuit Contact Type | 1 NO + 3 NC |
| Contacts Operation | Instantaneous Operation |
| Rated Operating Voltage [Ue] | 690 V AC 25...400 Hz |
| Rated Operating Current [Ie] | 6 A at 120 V AC-15 1.04 A at 690 V AC-15 0.55 A at 126 V DC-13 0.1 A at 600 V DC-13 |
| Rated Insulation Voltage [Ui] | 690 V Compliant with IEC 60947-5-1 600 V Compliant with UL 600 V Compliant with CSA |
| Conventional Heating Current [Ith] | 10 A (at 60 °C) |
| Compliant with Standards | EN/IEC 60947-5-1 UL 60947-5-1 CSA C22.2 No 60947-5-1 GB/T 14048.5 EN 50012 |
| Product Certification | IEC CB Report UL CSA CCC EAC UKCA |
| Rated Connecting Capacity [Irms] | 140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1 |
|---|---|
| Permissible Short-Time Rated | 100 A 60 °C 1 s 120 A 60 °C 500 ms 140 A 60 °C 100 ms |
| Protection Type | GG Fuse 10 A |
| Mechanical Life | 30 Mcycles |
| Minimum Switching Current [Imin] | 5 mA |
| Minimum Switching Voltage | 17 V |
| Non-overlap Time | 1.5 ms Power Off No overlap between NC and NO contacts 1.5 ms Power On No overlap between NC and NO contacts |
| Insulation Resistance | > 10 MΩ |
| Wiring Capacity | Bolt Fastening 1 Cable 1…4 mm² Soft Wire with Bolt Fastening 1 Cable 1…4 mm² Soft Wire without Bolt Fastening 2 Cable 1…2.5 mm² Soft Wire with Bolt Fastening 2 Cable 1…4 mm² Soft Wire without Bolt Fastening 1 Cable 1…4 mm² Single Strand Hard Wire without Bolt Fastening 2 Cable 1…4 mm² Single Strand Hard Wire without |
| Tightening Torque | 1.7 N.m with screwdriver Ø 6 flathead 1.7 N.m with screwdriver No. 2 Phillips head 1.7 N.m with screwdriver pozidriv No. 2 |
| Height | 48 mm |
| Width | 44 mm |
| Depth | 42 mm |
| Net Weight | 0.05 kg |
| Color | Dark Gray |
| Environmental Characteristics | Normal Operating Environment |
|---|---|
| IP Protection Rating | IP20 Compliant |
| Protective Measures | TH Complies with IEC 60068 |
| Storage Ambient Temperature | -60…80 °C |
| Operating Temperature | -5…60 °C |
| Operating Altitude | 3000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.0 cm |
| Package 1 Width | 4.3 cm |
| Package 1 Length | 5.2 cm |
| Package 1 Weight | 61.0 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 5.0 cm |
| Package 2 Width | 8.6 cm |
| Package 2 Length | 26.2 cm |
| Package 2 Weight | 620.0 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 160 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 10.404 kg |
Notices
| Fire or Electric Shock Risk (Applicable only to ULHI fault short-circuit current rated contactors) The opening of the branch circuit protection device may indicate that the fault current has been interrupted. To reduce the risk of fire or electric shock, current-carrying parts and other components of the controller should be inspected and replaced if damaged. Failure to comply with these instructions may result in death, serious injury, or equipment damage. |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Schneider Electric |
| Series | TeSys Deca |
Plain language sourcing guide for Schneider Electric contactor auxiliary contact, LADN13
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
