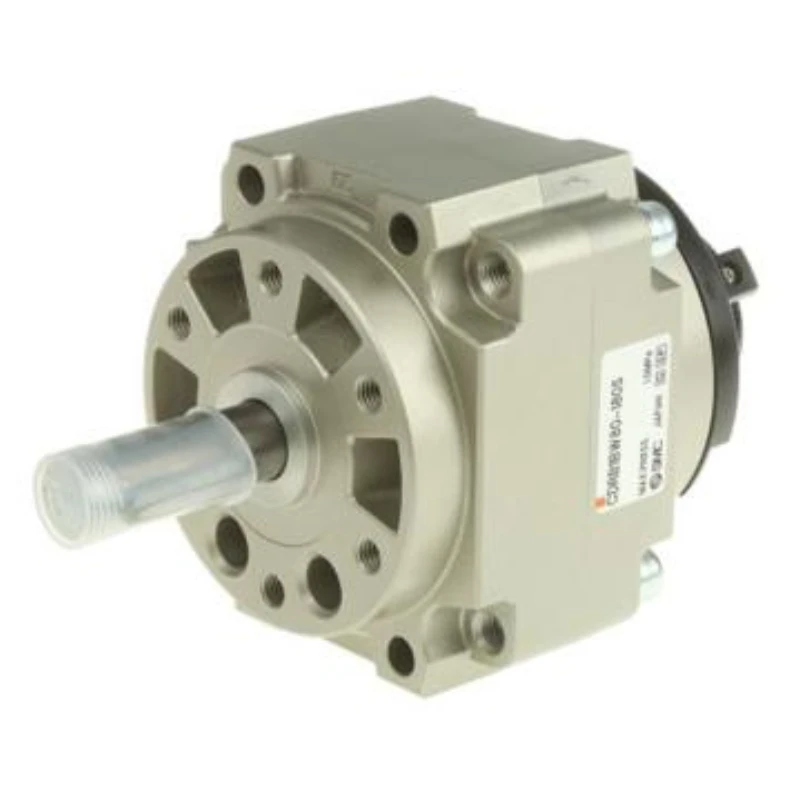

SMC swing cylinder, CDRB1BW80-180S

1. The magnetic switch can be moved to any position;

2. The cylinder body can be directly installed;

3. High reliability, axial and radial loads are supported by bearings;

4. Piping direction is available in two ways: cylinder body side and axial;

5. Minimum operating pressure: 0.15MPa (cylinder diameter 50~100);

6. Magnetic switches can be included.




• The external limit switch should be installed away from the rotating shaft

• If the limit switch is installed near the rotating shaft, the reaction force generated by the torque of the swing cylinder acting on the limit switch will be added to the rotating shaft, causing damage to the rotating shaft or bearings, which is a cause of personal injury, component and.

  device damage;.

• Precautions for using external limit switches

• When using external limit switches, they should be placed in a suitable location.

Improper placement may lead to component damage, potentially causing injury to the device and personnel.

• Regarding the backlash of the single rack and pinion CRA1 series

  The CRA1 series has a backlash of less than 1° at the swing end. For applications requiring correct swinging, external limiters should be used for positioning.

• Precautions when converting swinging motion to linear motion

• When using a toggle mechanism or similar device to convert swinging motion into linear motion, and the angle at the moving end is determined by the limiter on the linear side (see diagram below), if the angle at the moving end is small, the torque of the swing cylinder will.

  generate excessive radial force on the output shaft, potentially causing damage.

• Set a limit switch on the swing side, or increase the angle of the moving end. Do not apply a load exceeding the allowable value to the product;

• Do not apply a load exceeding the allowable shaft load value specified in the product catalog;

  Loads exceeding the allowable value applied to the product will cause malfunction, damage, and may result in injury to personnel, components, and devices;

  The product can withstand allowable radial and axial loads when there is no dynamic load. Avoid applying loads directly to the shaft whenever possible.

  For better motion conditions, it is recommended to load using the method shown in the image below;

• Adjust the speed gradually from the low-speed side, do not start from the high-speed side to avoid damage to components, which could lead to personal injury, damage to components, and damage to the device.

• Swing Angle Adjustment Method

  Remove the cover (made of resin) shown in the image below, slide the limiter quick-release groove to the appropriate position and then fix it. This allows you to adjust the swing angle and swing position.

Additionally, the exposed four-sided milling section of the swing output shaft and the wrench integrated with the output shaft facilitates manual operation and positioning (see the setting example below for details).

Note: Size 40, the limit block has 2 fixing screws.
