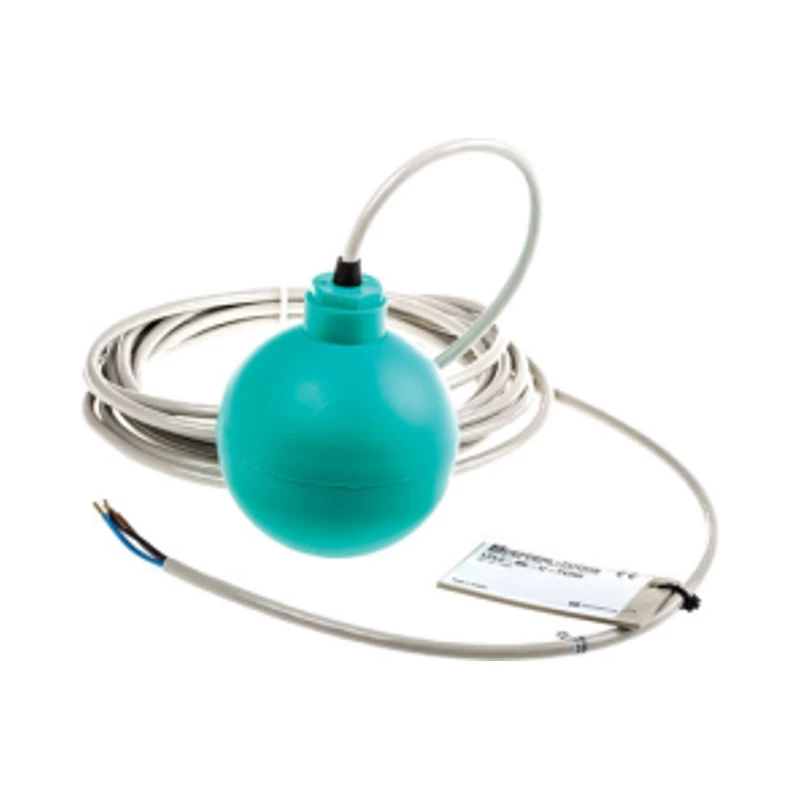

Pepperl+Fuchs LFL2-BK-U-PUR5 Level Sensor

Key Features

Pepperl+Fuchs float switch. Designed with a high-buoyancy ball, it can be used with any sequential circuit. Its buoyancy makes it ideal for low-density liquids. The switching element is mercury-free. The float switch has a small diameter, allowing users to install it into small outlet holes like the G1. The switch is initiated by the swinging motion of the sensor. High-buoyancy ball design. Mercury-free switch with miniature mercury switch. Density: 0.6 g/cm³. Polypropylene float. Cable: 5m, 3 x 0.75mm².

Dimensions: 86mm diameter; Device type: Float; Mounting type: Horizontal; Output: Direct load; Body material: Polypropylene; Cable length: 5m; Minimum operating temperature: -20°C; Maximum operating temperature: +85°C; Maximum current: 1 A DC, 3 A AC; Maximum pressure: 2 bar Pepperl + Fuchs Floating Switch: Pepperl + Fuchs microswitch (changeover contact) integrated with a PP float. This function is activated if there is a deviation from the horizontal position. The switch ball in the float moves along the axis and activates the microswitch. This device can be used with any sequential circuit as long as the circuit can support the circuit values ​​​​of the switching element. Power supply voltage: 250VAC AC / 150Vdc AC. Features and Advantages: It uses PUR cable material. Switching element: miniature switch, mercury-free liquid limit value detection. Sleeve design: small diameter, can be installed through G1 tap holes. Spherical design: high buoyancy. Density sleeve design: ≥ 0.8 g/m² cm³, spherical design: ≥ 0.6 g/m² cm³. Switching is initiated by the swinging motion of the sensor. It is particularly suitable for low-density liquids. Switching element: Mercury-free float switch with small diameter, allowing users to install it into tap holes as small as G1. Density: ≥ 0.6 g/cm³. It has a 5m cable length. Certifications: IP68 rating, EN 50178, EN 60529, EN 60947-5-2, EN 60947-5-2, A1CE certification.

Technical Specifications

Specification	Value
Measurement Technology	Mechanical or Magnetic Floats
Maximum Working Pressure	29.01 psi (20.41 m H2O)
Manufacturer	Pepperl+Fuchs GmbH
Product Model	LFL2-BK-U-PUR5
Product Category	Level Sensors
Operating Temperature	-4 to 185 F (-20 to 85 C)
Knife Throw Specifications	Other Type (Special Application)
Other Knife Throw Descriptions	Direct Load
