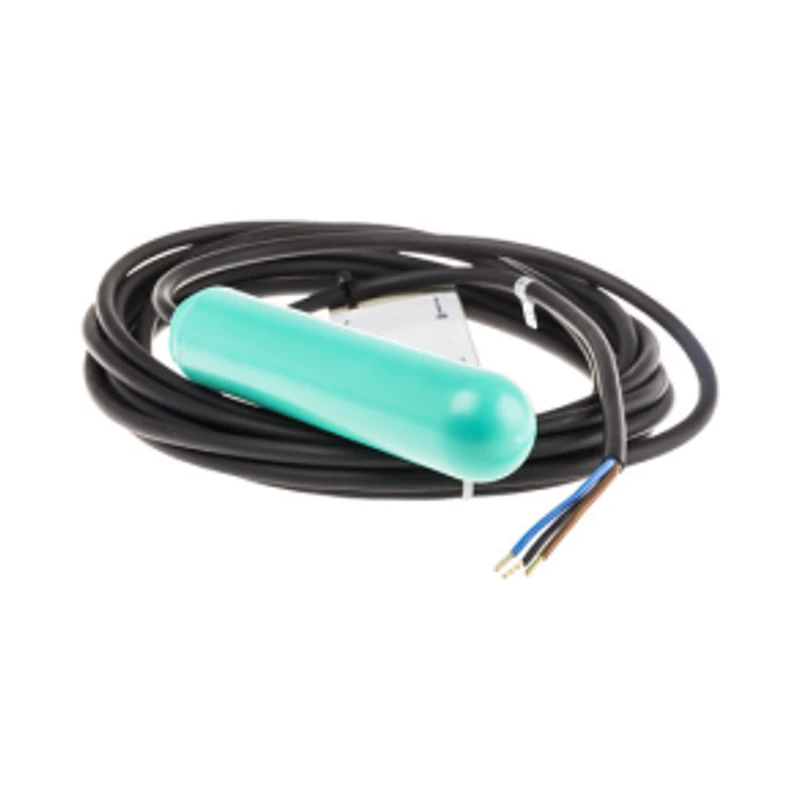

Pepperl+Fuchs LFL2-CK-U-PVC5 Level Sensor
Key Features
Micro switch with switch ball, can be used with any sequential circuit as long as the switching element is supported. Cylindrical switch for pinholes. Mercury-free micro switch with switch ball. Density: u00e2‰¥0.8g\/cm³. Polypropylene float. Cable: 5m, 3 x 0.75mm². Dimensions: Diameter 29.2mm, Length 135mm. Device type = Float. Mounting type = Horizontal. Switch output = Direct load. Body material = Polypropylene. Cable length = 5m. Minimum operating temperature = +5°C. Maximum operating temperature = +70°C. Maximum current = 1 A dc, 3 A ac. Maximum pressure = 3 bar.
Pepperl + Fuchs LFL2-CK-U Cylindrical Float Switch. The Pepperl + Fuchs LFL2-CK-U series float switch is a cylindrical float switch with a sleeve design.
They all come with a 5 m cable and are available in various materials.
These float switches feature a cylindrical sleeve design.
For information on spherical design options, please see the list below.
The LFL2-CK-U float switch uses a switching element that activates a microswitch (changeover contact) when it deviates from a horizontal position.
What is the mounting method? The LFL2-CK-U float switch can be mounted using a cable retainer of G1A or larger through the side of the tank.
What are its dimensions? The sleeve dimensions are 135 x 29.2 mm.
The cable length is 5 m. Optional models: (339-5238) - LFL2-CK-U-PVC5 - Sleeve with PVC cable; (350-2060) - LFL2-CK-U-PUR5 - Sleeve with PUR cable; (350-2076) - LFL2-CK-U-CSM5 - Sleeve with CSM cable; (339-5244) - LFL2-BK-U-PVC5 - Float with PVC cable; (350-2082) - LFL2-BK-U-PUR5 - Float with PUR cable; (350-2098) - LFL2-BK-U-CSM5 - Float with CSM cable.
Technical Specifications
| Specification | Value |
|---|---|
| Measurement Technology | Mechanical or Magnetic Floats |
| Maximum Working Pressure | 43.51 psi (30.62 m H2O) |
| Manufacturer | Pepperl+Fuchs GmbH |
| Product Model | LFL2-CK-U-PVC5 |
| Product Category | Level Sensors |
| Operating Temperature | 41 to 158 F (5 to 70 C) |
| Knife Throw Specifications | Other Type (Special Application) |
| Other Knife Throw Descriptions | Direct Load |
