Hawe RB type check valve supplied
LEHIY item code: LH-HAWE-0005
Quick buying check
This page helps you check Hawe RB type check valve supplied before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

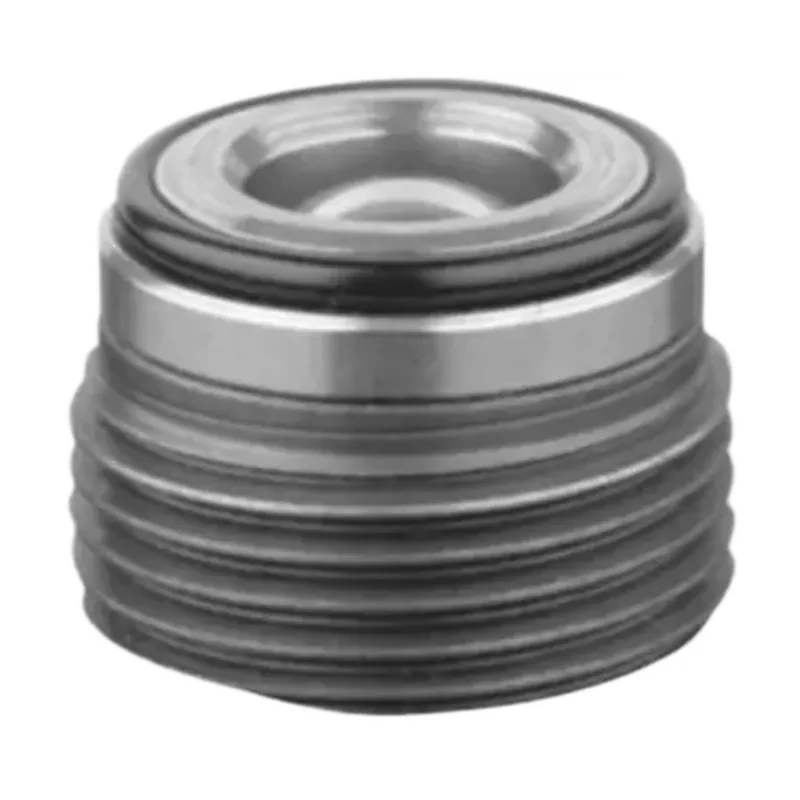

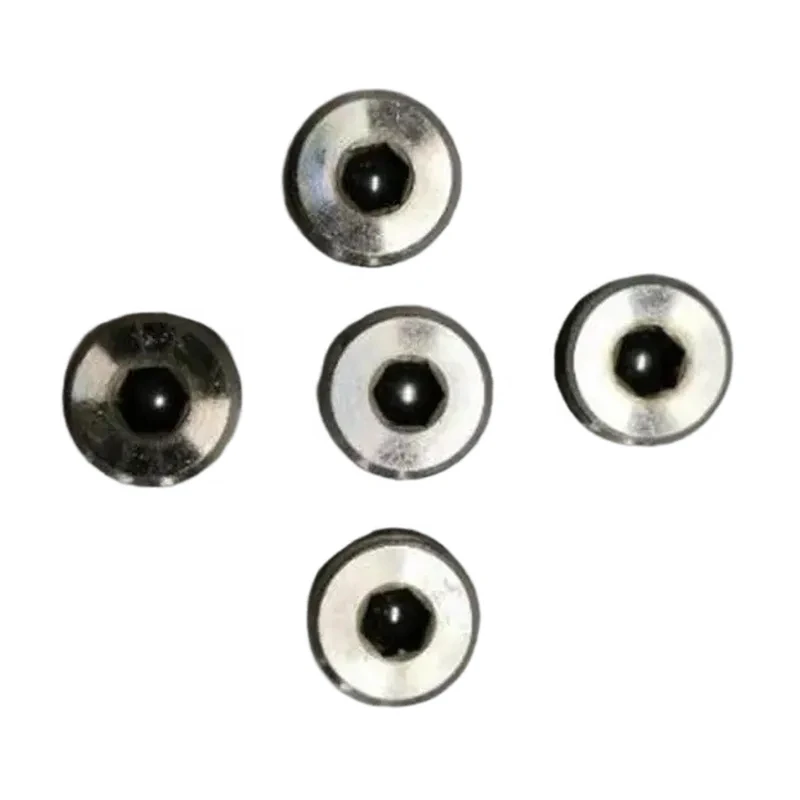

Original Hawe RB type check valve, model RB0. A check valve is a valve that allows fluid to flow only through the inlet, preventing backflow at the outlet; it's commonly called a one-way valve. Check valves are also known as non-return valves or non-circulating valves.
They are used in hydraulic systems to prevent reverse oil flow or in pneumatic systems to prevent reverse compressed air flow. Check valves are available in straight-through and right-angle types. Straight-through check valves are threaded and installed on pipelines.
Right-angle check valves are available in threaded, plate, and flanged connection types.
Hawe check valves belong to the gate valve category. They cut off oil flow in one direction while opening in the opposite direction. When closed, they provide a leak-free seal. RK and RB type check valves can be bolted on.
RK and RB type spring-loaded check ball valves are extremely robust and resistant to dirt accumulation.
Hawe Check Valve Features and Advantages: ■ Operating pressure up to 700 bar ■ Simple mounting holes ■ Robust ■ RK and RB types can also apply different pre-pressures Applications: ■ General hydraulic systems ■ Hydraulic preload systems Hawe Check Valve Parameters: Name Check Valve Structure Ball seat valve.
Structure Helical cartridge valve, housing structure Material Rolling bearing steel ball steel; Function Internal parts are hardened and ground Mounting position Any surface Single valve blank, zinc-nickel plated housing structure Pressure medium Hydraulic oil: conforms to DIN 51524 Parts 1 to 3; ISO VG 10 to 68 according to.
DIN ISO 3448 Viscosity range: minimum approx.
4, maximum approx. 1500 mm²/s Optimal operating range: approx. 10 ... 500 mm²/s Also suitable for biodegradable HEPG (polyalkylene glycol) and HEES (synthetic ester) pressure media at operating temperatures not exceeding approx. +70°C. Purity grade ISO 4406 21/18/15...19/17/13. Temperature: Ambient: approx. -40...
+80°C, Oil: -25... +80°C, note the viscosity range.
Starting temperature as low as -40°C (note the starting viscosity!), subsequent stable operating temperature at least 20K higher. Biodegradable working fluid: Refer to the manufacturer's data. Considering seal compatibility, the temperature must not exceed 70°C.
Our company supplies genuine Hawe RB type check valves from Germany, with the following models available: RB0 RB0F RB1 RB1F RB2 RB3 RB32 RB4 RC1 RC14 RC1E RC1F RC1G RC2 RC2E RC3 RD11 RD21 RD31 RD41 RD51 RH1 RH2 RH3 RH3V RH4 RH4V RH4V RH5 RH5V RHC1 RHC13 RHC2.
RHC2/1 RHC3 RHC3V RHC4V RHCE2 RHCE23 RHCE5 RK0 RK1 RK1G RK2 RK2G RK3 RK4.
For product details, please contact our sales department for more information.
Plain language sourcing guide for Hawe RB type check valve supplied
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Hawe | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Hawe RB type check valve supplied
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Hawe RB type check valve supplied verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
