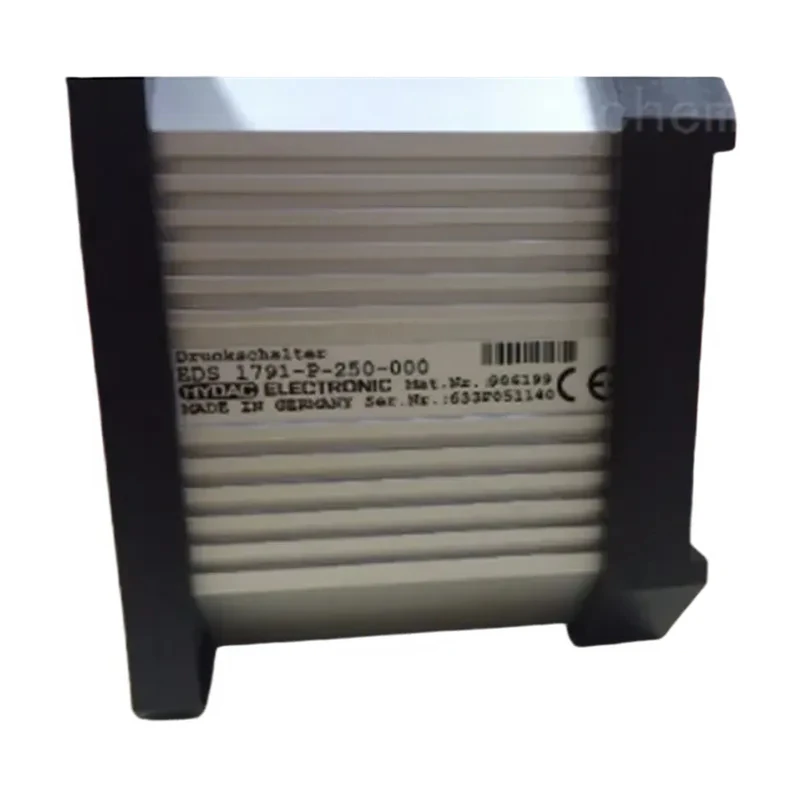

HYDAC pressure relays EDS1791-P-250-000 ()

We are an authorized distributor of HYDAC pressure relays EDS1791-P-250-000, and HYDAC EDS1700 series relays are also in stock. We offer incredibly low discounts*. All HYDAC sensors, pressure switches, and relays are directly sourced from HYDAC in Germany, ensuring fast customs clearance.

We can provide HYDAC product customs declarations and product certificates.

All HYDAC sensors and relays come with a one-year warranty and free on-site installation and commissioning service!

EDS1700 Series HYDAC Electronic Pressure Relay Introduction: Applications: The EDS1700 features a built-in pressure measurement unit, a 4-digit display, and 4-way switch outputs, providing users with all the advantages of a modern electronic pressure relay.

The 4 switching points and switch return points can be easily and independently adjusted via a touch keypad. For easy integration with monitoring systems (such as PLC connection), one analog output (4-20mA or 0...10V) is provided. The EDS 1700 is primarily used in hydraulic and pneumatic applications.

This instrument is designed for frequent switching cycles (millions of times) and is ideal for applications requiring constant switching point accuracy or simple, precise adjustment.

Features: Built-in pressure sensor with DMS on a stainless steel diaphragm, accuracy class 0.5% or 1%, 4-digit display, keypad programming, easy operation, 4 setpoints, independently adjustable switching and return points, optional analog output signal, multiple additional uses and functions, selectable mounting position (pressure connection above or below,.

keypad and display unit can rotate 180°), display range adjustable in different units such as KN, KG, psi...

Setting selection: The core of the EDS1700 Hydac pressure relay is a microcomputer that provides many additional operation functions beyond normal pressure switch. For example, it can be used to implement switching delays to prevent rapid pressure peaks from triggering unwanted switching All settings are completed via the touch keypad.

Switching point setting range: HYDAC relay switching points 1-4: 1.5% to 100% FS; relay switch reset points 1-4: 1% to 99% FS. The switching point is defined as the pressure setpoint, which, when reached (as pressure increases), causes a change in the relay output state.

This output state is maintained until the pressure drops below the corresponding switch reset signals. point.

The switch reset point is the pressure value at which the relay switch output returns to its initial state. The difference between the switching point and the switch reset point is defined as the switch reset hysteresis.

Installation: In critical applications (severe vibration or shock), the EDS1700 must be mounted on a rubber cushion (DIN standard vibration mounting).

The pressure connection must be via a micro-hose for mechanical decoupling. The HYDAC pressure relay EDS1700 must not be directly connected to rigid conduits. It is supplied with the pressure connection at the bottom and the electrical connection at the top.

For special applications, the front panel of the instrument can be rotated 180° to allow for electrical connections at the bottom and pressure connections at the top. Distributor of HYDAC pressure relays EDS1791-P-250-000.

Regular models in stock: EDS1791-N-016-000, EDS1791-N-040-000, EDS1791-N-100-000, EDS1791-N-250-000, EDS1791-N-400-000, EDS1791-N-600-000, EDS1791-N-600-009 (450 bar), EDS1791-P-00.

9-000(-1...+9bar)EDS1791-P-016-000EDS1791-P-016-009(10bar)EDS1791-P-040-000EDS1791-P-10 0-000EDS1791-P-100-009(50bar)EDS1791-P-250-000EDS1791-P-250-009(200bar)EDS1791-P-400-000.
