GEMU throttle valves (61012D155211/N) from Germany, .

LEHIY Industrial is an distributor of GEMU throttle valves (61012D155211/N) from Germany. We offer genuine GEMU pneumatic diaphragm valves (61012D155211/N) with immediate availability and competitive pricing. GEMU's 610 series pneumatic diaphragm valves are widely used in 3D printer equipment and robot mold modules.

LEHIY Industrial has a small stock of GEMU throttle valves (61012D155211/N) available at competitive prices. The market price (including tax) is over 1700 RMB, but we can offer an additional 20% discount. We source directly from GEMU in Germany, ensuring genuine products with a one-year warranty.

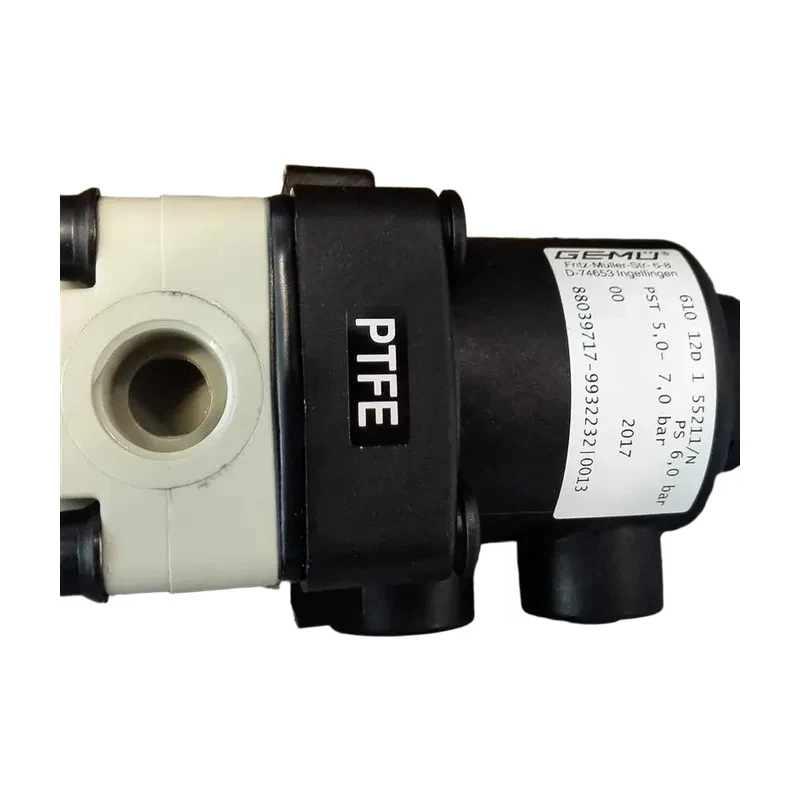

We also provide authorized technical consultation and after-sales installation and commissioning services. GEMU throttle valve 61012D155211/N is available for immediate delivery. Nameplate parameters: 610 12D 1 55211/N ps 6.0 bar PST 5.0- 7.0 bar 00 DE 201888039717- 1069110610021.

GEMU throttle valve working principle: GEMU throttle valves can be equipped with feedback signals, limit switches, and positioners to meet the needs of automatic control, programmable control, or flow regulation. The feedback signal of the pneumatic diaphragm valve uses contactless sensing technology.

This product uses a diaphragm-type propulsion cylinder instead of a piston cylinder, eliminating the drawbacks of piston ring damage causing leakage and preventing valve opening and closing. In case of air supply failure, the valve can still be opened and closed by operating the handwheel.

GEMU throttle valves use cast iron, cast steel, or cast stainless steel for the valve body, lined with various corrosion-resistant or wear-resistant materials, and diaphragm materials such as rubber and PTFE.

The lined diaphragm has strong corrosion resistance and is suitable for regulating highly corrosive media such as strong acids and alkalis.

GEMU diaphragm valves from Germany have a simple structure, low fluid resistance, and a larger flow capacity than other types of valves of the same specifications; they are leak-free and can be used for regulating high-viscosity media and media containing suspended particles.

The diaphragm isolates the medium from the upper cavity of the valve stem, so there is no leakage even without packing.

However, due to limitations in the diaphragm and lining materials, their pressure resistance and temperature resistance are relatively poor, generally only suitable for nominal pressures below 1.6 MPa and temperatures below 150°C.

The flow of characteristics GEMU diaphragm valves from Germany are close to quick-opening characteristics, approximately linear before 60% of the stroke, and the flow rate changes little after 60%.

Diaphragm valves use a corrosion-resistant lined valve body and a corrosion-resistant diaphragm instead of the valve core assembly, utilizing the movement of the diaphragm for regulation. The operating temperature of the GEMU diaphragm valve is limited by the materials used in its diaphragm and valve body lining.

Its operating temperature range is approximately -50°C to 175°C.

The diaphragm valve has a simple structure, consisting of only three main components: the valve body, the diaphragm, and the valve head assembly. This valve is easy to assemble and maintain quickly. Diaphragm adjustment can be performed on-site and quickly.

The structure of the GEMU diaphragm valve differs significantly from ordinary valves; it is a new type of valve, a special type of shut-off valve.

Its opening and closing element is a diaphragm made of a soft material, separating the valve body cavity from the valve cover cavity and the drive components. GEMU diaphragm valve has a flexible diaphragm or... Combined diaphragm. Its closing element is a type of compression assembly connected to the diaphragm.

The valve seat can be weir-shaped or the pipe wall running through the flow channel. The advantage of the German GEMU diaphragm valve is that its control mechanism is isolated from the medium passage. parts of the control mechanism.

In addition, no form of separate seal is required at the valve stem, except when operating as a safety measure in the control of harmful media. GEMU valves agent German GEMU throttle valve 61012D155211/N in stock.

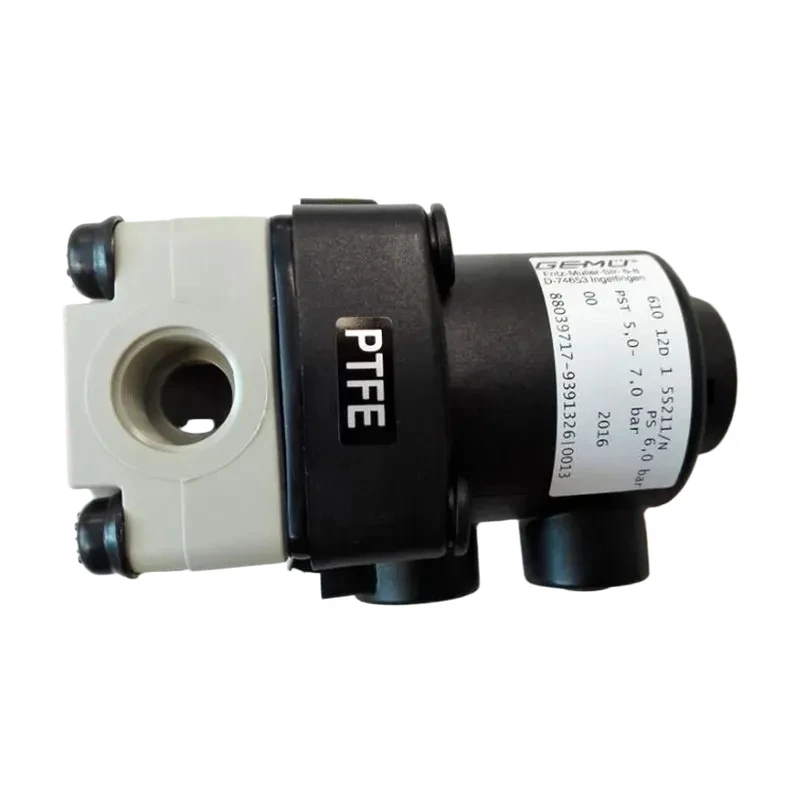

Actual product picture: German GEMU diaphragm valve applicable occasions: The German GEMU diaphragm valve is a special type of shut-off valve.

Its opening and closing element is a diaphragm made of soft material, which separates the valve body cavity from the valve cover cavity. Due to limitations in valve body lining and diaphragm manufacturing processes, manufacturing larger valve body liners and larger diaphragms is difficult.

Therefore, diaphragm valves are not suitable for larger pipe diameters and are generally used in pipelines ≤DN200. Due to limitations in diaphragm materials, GEMU diaphragm valves are suitable for low-pressure and low-temperature applications. Generally, the temperature should not exceed 180℃.

Because diaphragm valves have good corrosion resistance, they are generally used in devices and pipelines handling corrosive media. The applicable temperature range for diaphragm valves is limited by the valve body lining and diaphragm materials.

GEMU diaphragm valves are stop valves that use a diaphragm as the opening and closing element to close the flow channel, cut off the fluid, and separate the valve body cavity from the valve cover cavity.

Diaphragms are commonly made of elastic, corrosion-resistant, and non-permeable materials such as rubber and plastic.

Valve bodies are mostly made of plastic, fiberglass, ceramic, or metal-lined rubber materials. They have a simple structure, good sealing and corrosion resistance, and low fluid resistance. They are used for low-pressure, low-temperature, highly corrosive media and media containing suspended matter.

GEMU diaphragm valves from Germany are categorized by structure, including ridge type, gate type, and stop type. They are also categorized by actuation method, including manual, pneumatic, and electric.

In GEMU pneumatic diaphragm valves, since the working medium only contacts the diaphragm and valve body, both of which can be made of various materials, this valve can ideally control a variety of working media, especially those containing chemical corrosive substances or suspended particles.

The operating temperature of GEMU diaphragm valves is typically limited by the materials used for the diaphragm and valve body lining, with an operating temperature range of approximately -50 to 175°C.

Diaphragm valves have a simple structure, consisting of only three main components: the valve body, the diaphragm, and the valve head assembly.

This valve is easy to disassemble and maintain quickly; diaphragm replacement can be completed on-site and in a short time. The structure of diaphragm valves differs significantly from ordinary valves; it is a new type of valve, a special type of shut-off valve.

Its opening and closing element is a diaphragm made of soft material, separating the valve body cavity from the valve cover cavity and the actuation components. It is now widely used in various fields.

Commonly used diaphragm valves include rubber-lined diaphragm valves, fluoropolymer-lined diaphragm valves, unlined diaphragm valves, and plastic diaphragm valves.

A diaphragm valve contains a flexible diaphragm or a combination of diaphragms within the valve body and cover, and its closing element is a compression device connected to the diaphragm. The valve seat can be weir-shaped or a straight pipe wall.

The advantage of the GEMU diaphragm valve from Germany is that its operating mechanism is isolated from the media passage, ensuring the purity of the working medium and preventing the possibility of media in the pipeline impacting the operating mechanism's working parts.

Furthermore, no separate seal of any kind is required at the valve stem, unless used as a safety device when controlling hazardous media.
