Brand new genuine Baumer sensors - project single-batch price

I. Baumer Sensor Product Features High Precision: Baumer sensors are renowned for their high-precision measurement and detection capabilities, suitable for a wide range of industrial applications.

Versatility: Baumer offers a variety of sensor types, including photoelectric sensors, pressure sensors, position sensors, flow sensors, etc., to meet the needs of different applications.

High Protection Rating: Baumer sensors are designed to operate in a variety of harsh environments, featuring a high protection rating (IP67 or higher) to resist dust, water, and other environmental factors. Fast Response: Baumer sensors offer fast response, ensuring real-time monitoring and precise control.

Easy Integration: Baumer sensors are designed for easy integration with various automation systems, including PLCs, SCADA systems, and industrial robots. Energy Efficient: Baumer sensors incorporate energy-saving designs, helping to reduce energy consumption and operating costs.

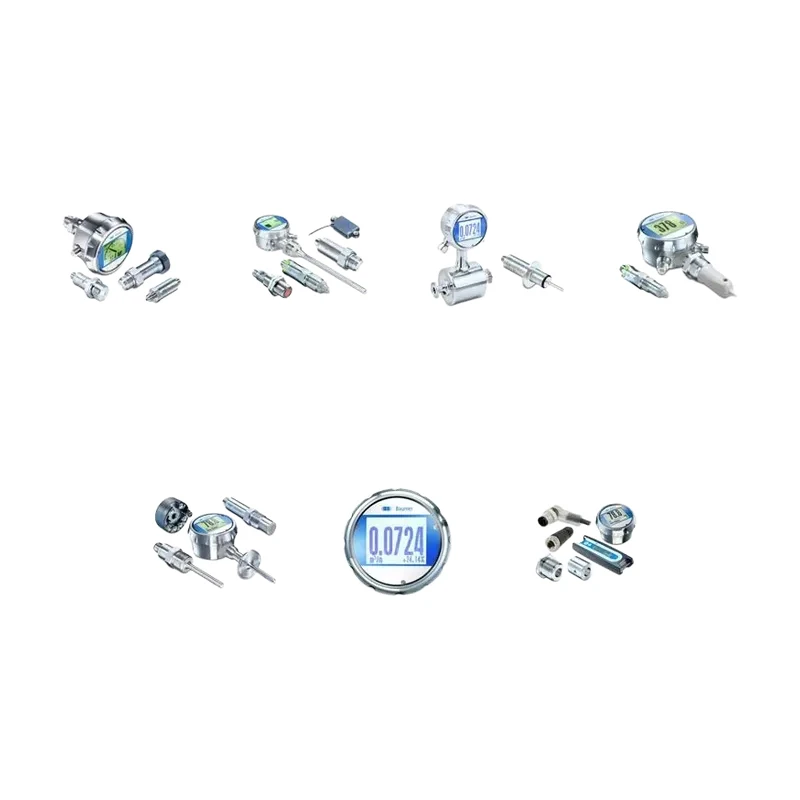

II. Baumer Sensor Product Line Photoelectric Sensors: Includes reflective and transmissive sensors for object detection, counting, and positioning. Position Sensors: Such as encoders, used to measure shaft position and speed. Pressure Sensors: Used to measure the pressure of fluids or gases.

Flow Sensors: Used to measure the flow rate of liquids or gases. Temperature sensors: including thermocouples and resistance temperature detectors (RTDs), used to measure temperature. Safety sensors: such as safety light curtains and emergency stop buttons, used to ensure personnel safety.

Principle of BAUMER Sensors Classification of BAUMER sensor working principles: Physical sensors utilize physical effects, such as piezoelectricity, magnetostriction, ionization, polarization, thermoelectricity, photoelectricity, and magnetoelectricity. Tiny changes in the measured signal are converted into electrical signals. Chemical sensors include those based on phenomena such as chemical adsorption and electrochemical reactions;.

tiny changes in the measured signal are also converted into electrical signals. Baumer sensor project provides ±15V power to the sensor. The crystal oscillator in the excitation circuit generates a 400Hz square wave, which is then amplified by the TDA2030 power amplifier to produce AC excitation power.

This AC power is then transferred from the stationary primary coil to the rotating secondary coil via the energy toroidal transformer T1. The resulting AC power is then rectified and filtered by the shaft to obtain ±5V DC power, which serves as the operating power for the operational amplifier AD822.

A high-precision regulated power supply composed of the reference power supply AD589 and the dual operational amplifier AD822 generates ±4.5V precision DC power, which serves as both the bridge power supply and the operating power for the amplifier and V/F converter.

When the elastic shaft is subjected to torsion, the strain signal in the mV range detected by the strain bridge is amplified into a strong signal of 1.5V ± 1V by the AD620 instrumentation amplifier, and then converted into a frequency signal by the LM131 V/F converter.

This signal is transmitted from the rotating primary coil to the stationary secondary coil via the signal toroidal transformer T2. After filtering and shaping by the signal processing circuit on the housing, a frequency signal proportional to the torque experienced by the elastic bearing is obtained.

This signal is TTL level and can be provided to a dedicated secondary instrument or frequency meter for display or directly sent to a computer for processing.

Because the gap between the rotating and stationary rings of the rotary transformer is only a few tenths of a millimeter, and the upper part of the sensor shaft is sealed within a metal housing, forming effective shielding, it has strong anti-interference capabilities.

Some sensors cannot be classified into either physical or chemical categories.

Most sensors operate based on physical principles. Chemical sensors face more technical challenges, such as reliability, the feasibility of mass production, and price. Solving these problems will lead to a significant increase in the application of chemical sensors.

IV. Baumer Application Areas Baumer sensors have a wide range of applications, including: Machine tools and robotics, packaging and logistics, food and beverage industry, automotive manufacturing, chemical and pharmaceutical industry, and energy and process industries.
