ASCO pulse valve
LEHIY item code: LH-ASCO-0034
Quick buying check
This page helps you check ASCO pulse valve before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Shige Fluid, authorized distributor of ASCO pulse valves, introduces its products: ASCO pulse valves control the oil pressure in the hydraulic circuit.
Generally, ASCO solenoid pulse valves are installed in the main oil circuit or the back pressure oil circuit of the shock absorber to reduce oil pressure shocks during gear shifting and locking/unlocking, ensuring stable equipment operation.
ASCO pulse valves feature low power consumption and low voltage, and can be used with smart card water meters, serving as the actuator for automatic water control in smart water meter systems.
ASCO pulse valve applications: Primarily used for localized dust source removal in industries such as machinery, metallurgy, rubber, flour milling, chemicals, pharmaceuticals, carbon, building materials, and mining. ASCO solenoid pulse valves offer advantages such as small size, large air volume handling capacity, compact structure, and convenient and reliable operation.
The ASCO electromagnetic pulse valve, Also known as a diaphragm valve, is an imported product. It acts as a compressed air "switch" in the pulse jet cleaning system of pulse-jet baghouse dust collectors.
Controlled by the output signal of the pulse jet controller, it sequentially cleans the filter bags row by row (chamber by chamber), maintaining the dust collector's resistance within a set range to ensure its processing capacity and dust collection efficiency.
The ASCO electromagnetic pulse valve consists of a pilot valve made of an excitation coil and magnet, while the main valve uses a special rubber diaphragm structure.
Due to its design, this valve has advantages such as low power consumption, short instantaneous energizing time, and a wide operating pressure range, making it an ideal actuator for automatic control of tap water systems.
The principle of the ASCO pulse working valve is as follows: the diaphragm divides the electromagnetic pulse valve into two chambers, front and rear.
When compressed air is supplied, it enters the rear chamber through the throttling orifice. At this time, the pressure in the rear chamber forces the diaphragm assembly tightly against the valve's output port, placing the ASCO electromagnetic pulse valve in a "closed" state.
The electrical signal from the pulse jet controller causes the armature of the ASCO solenoid pulse valve to move backward, opening the vent in the rear chamber. valve in the "open" state.
When the pulse jet controller's electrical signal disappears, the armature of the ASCO solenoid pulse valve resets, the vent in the rear chamber closes, and the pressure in the rear chamber increases, causing the diaphragm assembly to press tightly against the valve output port, putting the solenoid pulse valve.
back in the "closed" state.

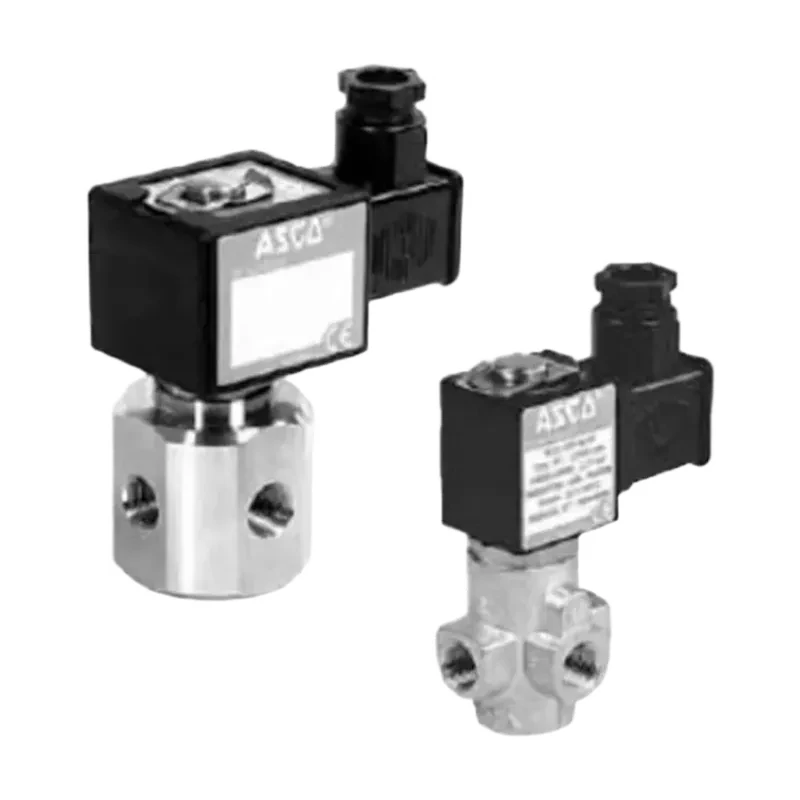

Shige Fluid Authorized ASCO Pulse Valve Detailed Description: 3-way, normally closed/normally open, direct-acting, medium temperature: -38℃～+50℃, valve body material: brass/stainless steel, Rp thread, diameter: 1/8-1/2, operating differential pressure: 0-10 kg, ASCO pulse valve technical parameters:
- Working pressure: 0.3-0.6MPa
- Working medium: clean air
- Voltage: DC24V/AC220V
- Current: 800mA/60mA
- ASCO solenoid pulse valve operating environment: temperature -10℃-55℃, relative humidity not exceeding 85%. How to choose an ASCO pulse valve? The ASCO pulse valve is the heart of dust removal equipment. Its total price is about 5% of the total price of a pulse jet dust collector;
- it is 1% of the cost of a gas box pulse dust collector. Saving on equipment costs for ASCO pulse valves while bearing the risk of the entire dust removal system failing is not worthwhile. Therefore, when choosing an electromagnetic pulse valve, it's crucial to recognize the reputable brand. Select an ASCO pulse valve with air volume, not just the connection port size: the port size often doesn't determine its actual cleaning function. Choose a pulse valve suitable for high, medium, and low pressure ranges: the pressure resistance should be at least 1-8 kg/cm². This allows for adjusting the air tank pressure to maintain good operating resistance of the dust collector and prevent filter clogging if the filter media resistance increases over time. Ensure consistent manufacturing quality for ASCO pulse valves: valves must be manufactured on fully automated production lines equipped with robots and CNC centers to prevent inconsistent quality caused by human error. In a cleaning system, a leak in one valve can often paralyze the entire system. Choose a low-resistance pulse valve: the internal structure of an ASCO pulse valve needs to ensure a large air volume, long diaphragm stroke, and a fluid dynamics-based design to minimize valve resistance. Due to improper valve body design, some 3” interface valves can only achieve the same air volume as 1”~2” interface valves. By using low-resistance, high-volume ASCO pulse valves, each valve can clean a larger area of filter media, significantly reducing the overall cost of the pulse-jet system.
Plain language sourcing guide for ASCO pulse valve
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | ASCO | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
ASCO pulse valve
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
ASCO pulse valve verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
