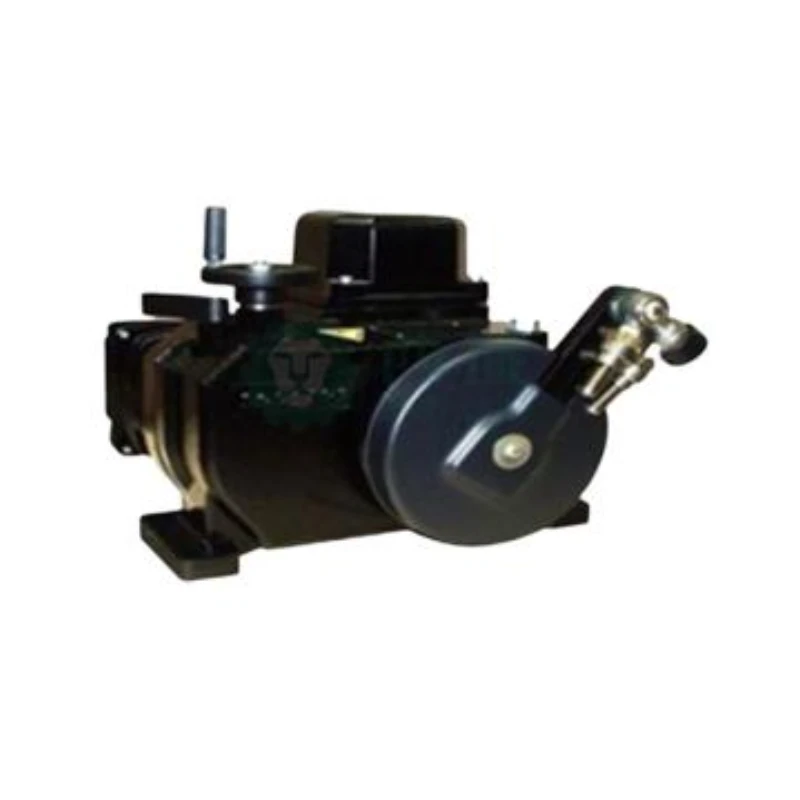

ABB Contrac series electric actuator, PME120AI, adjustable type, angular stroke torque 100NM, 220V
LEHIY item code: LH-ABB-3502
1. Operating Mode: S9 - Anti-stall, according to DIN IEC 2/915/CDV
Category: Electric Actuators
2. Protection Rating: IP66
Quick buying check
This page helps you check ABB Contrac series electric actuator, PME120AI, adjustable type, angular stroke torque 100NM, 220V before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Introduction Overview
Technical Specifications
ABB Electric Actuator – PME120-AI/-AN (Contrac) Angular Stroke Electric Actuator General Specifications: Integrated with the electronic unit as a complete unit, or used with a separate electronic unit Process optimization based on the highest control precision 10-year maintenance-free Continuously adjustable positioning, 3-position positioning control, or bus-controlled electric actuator Anti-stall without relying on position and torque-based shutdown Adjustable mechanical limit stops for defining the operating range Handwheel for emergency operation ABB Swiss Electric Actuator – PME120-AI/-AN (Contrac) Angular Stroke Electric Actuator Rated Speed PME120-AI/-AN – 20 to 60 s/90° Operating Angle – min 35° / max. 300° Actuators are used in every industrial sector. In process automation, they are responsible for positioning blades and valves to control the flow of materials, mass, and energy. The trend of using actuators as “smart field devices” is now considered part of the technology. Recently, there has been an increasing demand for incorporating functionality into devices, as well as for the connectivity of bus systems and the visualization of process and equipment data. To meet these requirements, contractors have developed contracts. Contrac is a compound word based on “control and actuator”, and is a “smart” compact actuator. Contrac actuator systems are based on a series of rotary and linear actuators with over 50 years of history. The actuator continuously responds to the setpoint signal. This motor operates under continuous undervoltage (operating mode S9 – *according to IEC 60034-1/EN 60034-1) and the torque on the electronic unit is gradually increased or decreased in proportion to the Δy signal (the difference between the setpoint and the Y position signal – see Figure 4). The actuator is unaffected by any temperature derating, i.e., there are no limitations, even at the maximum permissible ambient temperature. If a balanced state exists, with the actuator force and process force equal, the actuator will hold the controlled element in the desired position. |
1. Operating Mode: S9 - Anti-stall, according to DIN IEC 2/915/CDV 2. Protection Rating: IP66 3. Humidity: Average ≤95%; condensation is not allowed.4. Ambient Temperature: -10℃…+55℃ or -25℃…+55℃ 5. Installation Location: Any location; preferably IMB3, according to IEC 34 6. Coating: Binary epoxy resin (RAL9005; black) 7. Anti-condensation heater: None 8. Power supply for motor and sensors: Only through the Contrac electronic unit 9. Cable between actuator and electronic unit: None 10. Approximate weight: 32KG 11. Rated torque: 4 (adjustable to 0.5; 0.75 or 1 × rated torque) 12. Starting torque: 1.2 × rated torque (2 × rated torque for short periods at the end position) 13. Rated time (rated speed) for 90 degrees: adjustable between 20...60s (4.5°/s...1.5°/s)14. Operating angle: typically 90° (minimum 35°: maximum 270°), see the manual for lever and limit stop angle adjustment 15. Related electronic unit (datasheet): PME120_AI: Integrated electronic unit PME120_AN: Suitable for field installation: EAN823 (10/68_8.26EN) Suitable for bracket installation: EAS822 (10/68_8.23EN) 16. Motor: 24V3~ asynchronous motor, operating via electronic unit EAN823 or EAS822 17. Sensor: Always provides position and temperature sensors 18. Power supply: AC115V (94V...130V) or AC230V (190V...260V); 47, 5...63HZ; 1Ph current (electronic unit) (AC115V/AC230V) maximum [A] (positioning): 1.0/0.5 (approximately 40...50% of Imax) 19. External Fuse: 16A; Slow20. Analog Input*: 0/4...20mA 21. Analog Output*: 0/4...20mA, Electrically Isolated 22. 3 Digital Inputs*, BE1...BE3: Digital 0: -3V...+5V or open circuit, electrically isolated; Digital 1: +12V...+35V, electrically isolated 23. 3 Digital Outputs*, BE1...BE3: Relay dry contact, maximum 60V, 150mA 24. Digital Communication: RS232, for debugging and maintenance, optional FSK/HART or PROFIBUS P 25. Standard Setting: Behavior at 0/100% End Position: Maintain rated torque Setpoint Function: Linear, Setpoint = Position Value Setpoint Input: 4...20mA Function Selection: Positioner, Parameter: Setpoint Actual Value Output: 4...20mA Digital Input: BE 1 M/A Selection; BE 2/BE3 Manual Intervention +/_ Digital Output: BA 1 Ready; BA 2/3 End Position Indication 0/100%26. Voltage Output UV: 24V; 15mA, Output Scan (or similar) Electrically Isolated 27. Transmitter (Optional): 2-wire transmitter available, with activated controller |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | ABB |
| Category | Electric Actuators |
Plain language sourcing guide for ABB Contrac series electric actuator, PME120AI, adjustable type, angular stroke torque 100NM, 220V
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | ABB | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
